Handheld Microphone Transmitter

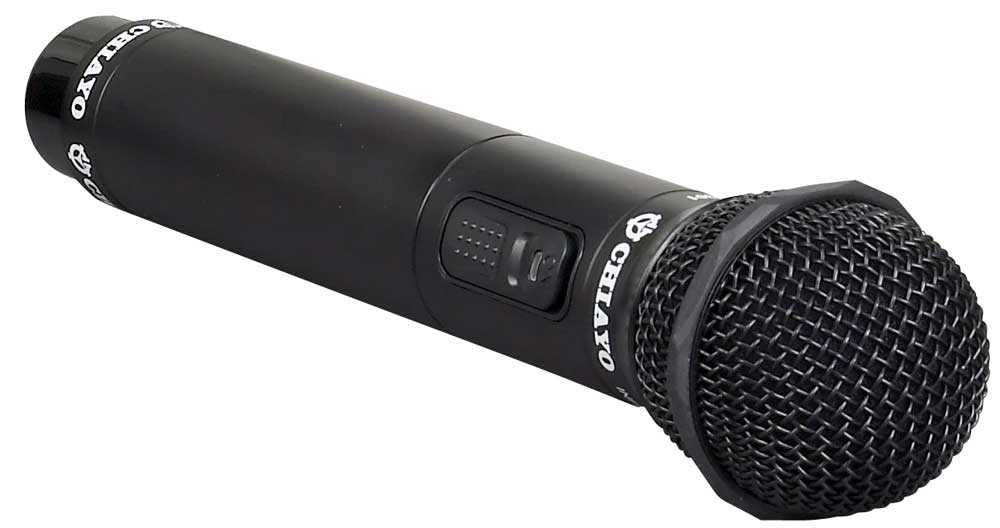

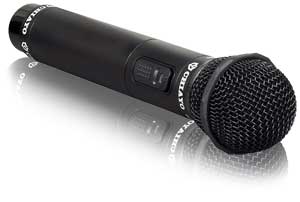

IWH-301: Handheld Microphone Transmitter


IWH-301: Handheld Transmitter
Click on the image to enlarge



Features:
Multiple emitter array of high efficiency infrared emission LEDs for optimum IR transmission
Bicolor LED indicates power-on and battery low
2 channels switchable
Unidirectional dynamic cartridge for optimum audio, minimal handling noise and maximum feedback rejection
Rugged steel mesh ballscreen with removable anti-roll rubber ring
Solid aluminum housing design
Operating time up to 7 hours with one dedicated 2.4v NiMH battery
Dedicated drop-in charger (HC-20) available


Specifications:
 Model:    IWH-301
 Transmission Carrier:  Infrared Ray
 Carrier Frequency:  2.08MHz or 2.54MHz (switchable)
 Modulation:  FM
 Peak Deviation:  ±25KHz
 IR Wavelength:  850nm
 Pilotone Frequency:  32.768KHz
 Compander Circuit:  Yes
 Pre-emphasis:  50µS
 Transmission Angle:  360°
 Current Consumption:  About 350mA
 Range (Line of Sight):  About 30m
 Microphone Type:  Uni-directional Dynamic
 Battery Type:  1 x NiMH ( 2.4v / 2100mAH)
 Battery life:  About 6hrs
 Dimension:  55(Ø) x 235(H) mm
 Weight:  222g
