Transmitter Module

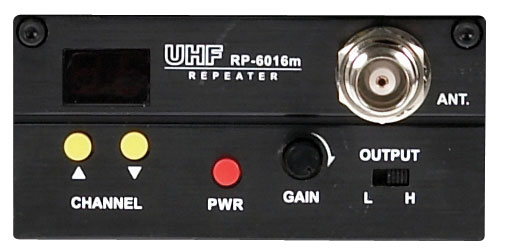

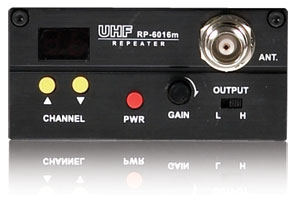

RP-6016M: UHF 16ch Transmitter Module


RP-6016M: UHF 16ch Transmitter Module
Click on the image to enlarge


RP-6046M Wireless Transmitter
Click on the image to enlarge

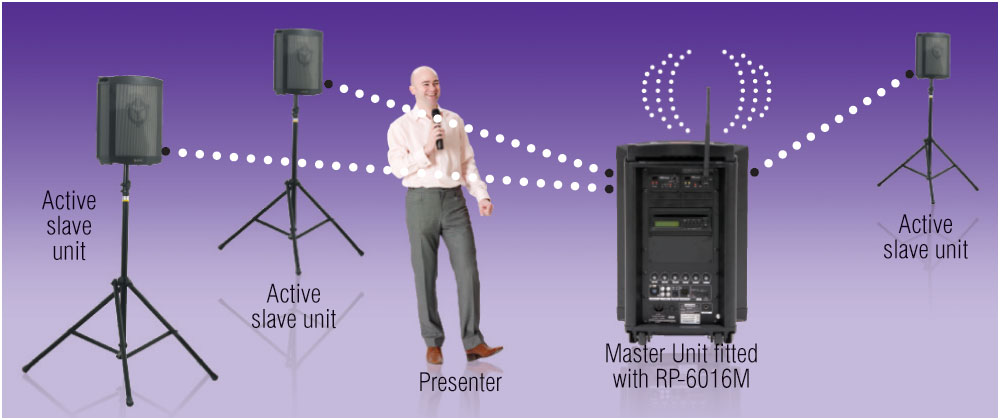

Module for multiple unit wireless-linked systems... where larger wirefree systems are required, the inclusion of the RP-6016M Module will transmit from a Master Unit to multiple active slave units, providing the same signal output as well as remote volume control to all units on the system.

The RP-6016M is compatible with all C1004 & V2004 units.

Features:
Modular design for easy installation/uninstallation.
100-frequency selectable.
High/Low output power for selection.
All audio sources, including music and microphone, can be transmitted via a single RP-6016M.
Gain control for audio sensitivity adjustment.


 Model:    RP-6016M
 Frequency Range:  UHF 600 ~ 900MHz
 Switching Bandwidth:  25MHz
 Switchable Frequencies:  100
 RF Power Output:  High 50mW, Low 35mW
 Spurious Emission:  > 60dB below carrier
 Dynamic Range:  > 110dB
 Display Screen:  7-segment LED
 T.H.D:  < 0.5%
 Power Supply:  DC 12v
 Peak Deviation:  40KHz
 Antenna Socket:  TNC type
