Receiver Module

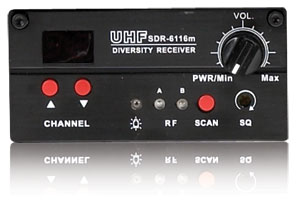

SDR-6116M: Additional UHF 16ch Receiver Module


SDR-6116M: Additional UHF 16ch Receiver Module
Click on the image to enlarge




Features:
Helical Filter RF front end ensures high selectivity.
Excellent IF design delivers high image and spurious rejection
Anti-interference Pilotone circuit
RF noise squelch circuit.
Auto-scan function searches for the cleanest frequency and simplies multi-channel setup.
Squelch control accessible via front panel.
Power and volume control switch.
UP / DOWN channel selection key.
7-segment LED display channel indicator.
Battery low indicator LED
Balanced and unbalanced audio output.
20-pin connection for easy installation.


 Model:    SDR-6116M
 Frequency Range:  UHF High Band 600 ~ 900MHz
 Switching Bandwidth:  20MHz
 Switchable Frequencies:  16
 Display Screen:  7-segment LED
 Oscillation Type:  PLL Synthesized
 Frequency Stability:  0.005%
 Frequency Scan:  Yes
 Receiving Method:  Diversity
 Sensitivity:  -100dBm at S/N ratio > 80dB
 Image Rejection:  > 85dB
 Spurious Rejection:  > 85dB
 S/N Ratio:  > 110dB
 Peak Deviation:  40KHz
 T.H.D:  < 0.5%
 Audio Outputs:  Unbalanced: +4 dBm (1.25v)
 Balanced: +10 dBm (2.5v)
 Squelch:  RF noise squelch & Pilotone squelch
 Power Supply:  DC 12v 500mA
