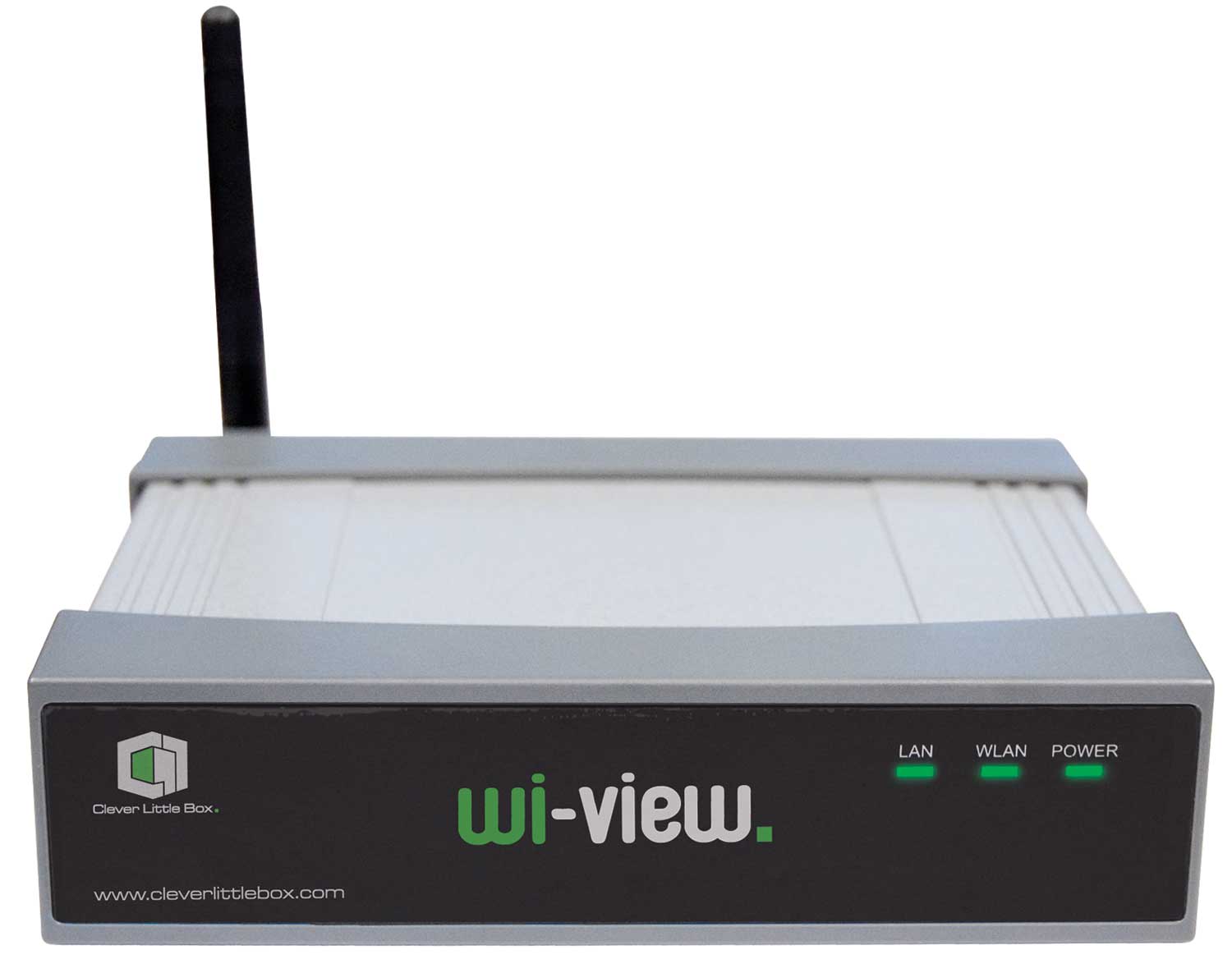

Description: |
|
Wi-View
300V |
Wireless
Standards: |
IEEE
802.11g |
LAN
Standards: |
IEEE
802.3u |
Data
Rate: |
Wireless: up to 54Mbps
LAN: 10/100 Mbps with auto MDI/MDIX |
Protocol: |
TCP/IP |
IP
Configuration: |
Automatic:
DHCP
Manual: static IP address |
Security: |
IEEE
Standard 64/128 bit WEP |
Antenna: |
Detachable
antenna with SMA connector |
Transmission
Power: |
2dBi
external dipole antenna |
Receiving
Sensitivity: |
–
65dBm @ 54Mbps
– 80dBm @ 11Mbps at 10-5 BER |
Wireless
Link Coverage: |
Up
to 300 feet/100m (dependant on environment) |
Video
Streaming: |
MPEG1/2/4,
HD Video Support |
Supported
Video Format: |
MPEG1/MPEG2/MPEG4(DivX,
Xvid)/WMV9 |
Supported
PC/NB Resolution Colour Depth: |
16/32
bit colour depth |
Supported
PC/NB Resolution: |
SVGA
(800x600), XGA (1024x768), WXGA (1280x768) |
Supported
Output Resolution: |
SVGA
(800x600). XGA (1024x768), WXGA (1280x768) |
Supported
Operation System: |
Windows
Vista/XP/2003/2000 |
Power:
|
DC5V,
2.5A |
Interfaces:
|
15-pin
VGA, RJ-45, Power switch, Reset button, Stereo phono jack, Audio
output |
Dimensions:
|
117(W)
x 140(D) x 27(H) mm |
Weight:
|
279g |
