Inter-M - PA240A
Professional Digital 240 Watt Mixer Amplifier
List Price
£482.40
$499.86
€0.00
incl. VAT
Product Description
The Inter-M PA240A is a professional 240 watt integrated mixer amplifier for both 100v line and low impedance loudspeaker systems.
The PA240A Mixer Amplifier can be desktop or rack mounted and is ideal for commercial audio applications such as background music, paging and public address.

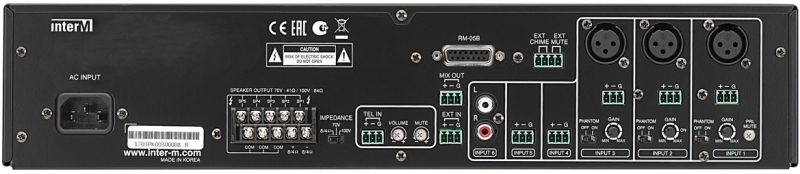

These economical multi-purpose mixer amps feature 6 inputs - 5x microphone or line level, balanced on XLR female and/or euro terminal block connectors on the rear of the unit. Each input terminal features rear-mounted level selector switch for mic or line level sensitivity.
Inputs 1~ 3 feature Phantom Power for use with condenser microphones.
Input 6 is a high impedance unbalanced on 2 x RCA connectors.
This amplifier also features telephone input terminal for connectivity to a standard phone system, allowing paging directly from a telephone handset. VOX priority override is available on input 1 and the telephone input.

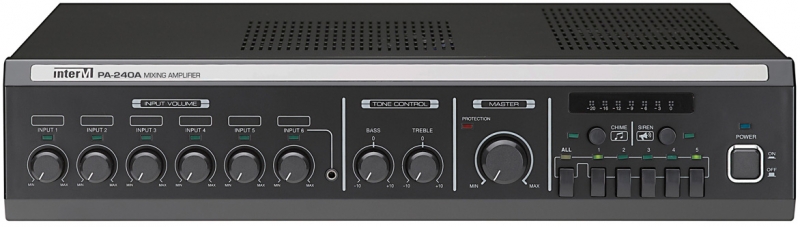

The front panel of the PA240A amplifier features master volume control, 5-zone loudspeaker selection (plus 'all-call'), Bass & Treble Tone control and built-in chime & siren trigger buttons.
Designed to support high performance requirements of a commercial audio system, the PA240 is built with reliability as a priority, featuring short-circuit and thermal protection.
Applications:
• Education facilities: Elementary, High School, College, University, Training Institute, etc
• Commercial establishments: Department stores, Shopping centres, Multiplex cinemas, hospitals, etc
• Public facilities: Government offices, transportation, stations, terminal, exhibition hall, factory, resorts, etc.
The PA240A Mixer Amplifier can be desktop or rack mounted and is ideal for commercial audio applications such as background music, paging and public address.
These economical multi-purpose mixer amps feature 6 inputs - 5x microphone or line level, balanced on XLR female and/or euro terminal block connectors on the rear of the unit. Each input terminal features rear-mounted level selector switch for mic or line level sensitivity.
Inputs 1~ 3 feature Phantom Power for use with condenser microphones.
Input 6 is a high impedance unbalanced on 2 x RCA connectors.
This amplifier also features telephone input terminal for connectivity to a standard phone system, allowing paging directly from a telephone handset. VOX priority override is available on input 1 and the telephone input.
The front panel of the PA240A amplifier features master volume control, 5-zone loudspeaker selection (plus 'all-call'), Bass & Treble Tone control and built-in chime & siren trigger buttons.
Designed to support high performance requirements of a commercial audio system, the PA240 is built with reliability as a priority, featuring short-circuit and thermal protection.
Applications:
• Education facilities: Elementary, High School, College, University, Training Institute, etc
• Commercial establishments: Department stores, Shopping centres, Multiplex cinemas, hospitals, etc
• Public facilities: Government offices, transportation, stations, terminal, exhibition hall, factory, resorts, etc.
Specification Sheet
- Click to download: PA-60A_120A_240A_BR_E_1711_V31.pdf
Manual
- Click to download: pa60a_120a_240a_manl.pdf
- High efficiency Class-D Amplifier: for greater power efficiency, reduced physical size and lower heat dissipation
- Multiple Inputs: 6 x Mic/Line inputs, 1 x Telephone input (Euroblock connector)
- Priority broadcasting: priority-telephone, mic 1, chime and siren
- Phantom Power Supply: PHANTOM POWER is available (INPUT 1~3) for use with condenser microphones
- Input/Output Monitoring: Channel-specific input signal LED, Output level 7 segement Bar graph LED VU meter
- Base and Treble tone controls: provides user-adjustable sound equalization
- 5 Zone Speaker Selection: allows the selection and audio broadcast to a specific zone, all zones or any combination of 5 zones
- Announce tones: Chime and Siren
- Expandability: Line in/Line out
- Optional 19 inch rackmount kit (BKT-A120)
| Description | PA240A |
|---|---|
| Rated Output | 240W RMS @ 100v line, 240W RMS @ 4Ω |
| Frequency Response (Speaker Output, 1W) | 80Hz ~ 15kHz |
| THD (@ Rated Power, 1kHz) | less than 1% |
| S/N (@ Rated Output, Line Input) | more than 78dB |
| Tone Control (100Hz, 10Hz, ±3dB) | ±10dB |
| Input Sensitivity / Impedance (@ High-Z Output) | Input 1~5: MIC -50dBu/2kΩ, LINE -10dBu / 2kΩ |
| Input 6 | -10dBu/10kΩ |
| Tel IN | 0dbu / 10kΩ |
| Ext IN | 0dBu / 20kΩ |
| Mix OUT / Impedance | 0dBu / 10kΩ |
| Speaker Output Level/Impedance: Low Z | Output level: 240W / 8Ω, Impedance: 4Ω |
| Speaker Output Level/Impedance: High-Z | Output level / Impedance: 100v / 42Ω, 70v / 21Ω |
| Operating Temperature | -10°C ~ +44°C |
| Power Source | 230v AC / 50Hz |
| Power Consumption | 80W |
| Dimensions | 420(W) x 88(H) x 319(D) mm |
| Weight (Net) | 9.80kg |
| Weight (Gross) | 12.00kg |
