2N - 9155211
IP Verso 2.0 Door Intercom - Modular Door Intercom Primary Unit AUDIO ONLY - Nickel
Product Description
The 2N IP Verso 2.0 Audio-Only is the latest addition to the Verso range, designed for projects where video functionality is not required. Built on the same powerful platform as the camera model, it offers premium audio quality, flexible modularity, and full compliance with new EU regulations.
Key Features
The 2N IP Verso 2.0 Audio-Only provides a robust, flexible and compliant intercom solution for projects where clear audio communication is the priority. With its modular design, premium build quality, and wide integration options, it’s the perfect fit for modern access control systems without the need for video.
Key Features
- Audio-Only Basic Unit – all the benefits of the Verso 2.0 platform, without a camera
- Superior Audio Quality – crystal-clear speech with noise cancellation, even in noisy environments

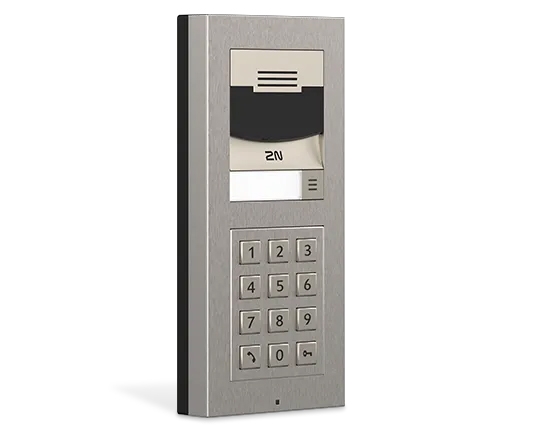

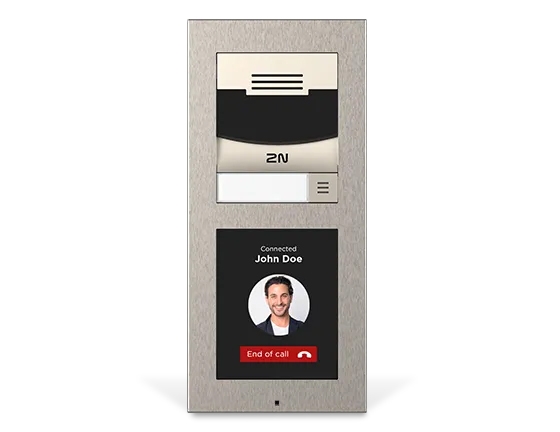

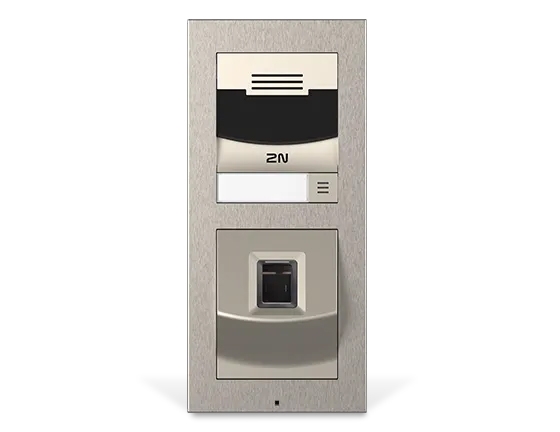

- Full Modular System – expand with RFID, Bluetooth, keypad, fingerprint or other Verso modules
- Future-Proof Design – ARTPEC-7 processor, anodised aluminium housing, durable and secure
- Accessibility Features – LED pictograms, tactile button stickers, optional induction loop module
- RED & EAA Compliant – meets the latest European Radio Equipment Directive and Accessibility Act requirements
- Sites where cameras are restricted due to privacy or policy
- Schools, hospitals, offices, and industrial facilities
- Projects requiring simplified compliance with new EU standards
- Cost-effective deployments where secure audio communication is sufficient
- Surface, flush, glass mount or gooseneck stand options
- Seamless integration with 2N Access Commander, My2N Management, and leading third-party platforms
- Compatible with a wide choice of modular add-ons to suit any project requirements
Specification Sheet
- Click to download: 2n_datasheet_ip_verso_2_0_9155211_en.pdf
- Audio-Only Basic Unit
- Superior Audio Quality
- Full Modular System
- Stylish, discreet design; robust materials and construction / IP54 protection rating
- Accessibility Features
- RED & EAA Compliant
- SIP communication protocol
- Programmable scripts for actions and reactions
- Integrates within a LAN, WAN, Web Ethernet network system
- Power over Ethernet (PoE) (or 12v power supply)
- Next Generation html5 web server configuration
- Web Interface Administration / Control of all 2N IP devices from one location
| Description | 9155211 |
|---|---|
| Type | PoE and/or 12 V/1 A DC |
| PoE | |
| LAN | 10/100BASE-TX with Auto-MDIX, RJ-45 jack |
| Recommended Cabling | Cat-5e or better |
| Passive Switch | NO/NC contacts, 30V, 1A, AC, DC |
| Inputs | 1 input - in passive/active mode (-30 V to +30 V DC), OFF = open or Uin> 1.5V / ON = short-circuit or Uin< 1.5V |
| Active Switch Output | 8 to 12V, DC, max 400mA |
| Microphone | 1 integrated microphone |
| Amplifier | (Class D) 5W |
| Speaker | 2W/8 Ω |
| Line Out | 1VRMS, 600Ω |
| Volume Control | adjustable with automatic adaptive mode |
| Full Duplex | Yes (AEC) |
| Audio Output | 1,9W |
| Protocols | RTP/SRTP |
| Codecs | G.711, G.729, G.722, L16/16 kHz |
| Sound Pressure At 1KHz at 1M distance | 78dB |
| Version | compatible with Bluetooth 5.0 (BLE) |
| Range | short - typically up to 3m, long - typically up to 10m, distances should serve only as an approximate guide and may vary depending on the phone model and installation environment |
| Security | RSA-1024 and AES-128encryption |
| Weight (Net) | 1.60kg |
| Weight (Gross) | 2.20kg |
