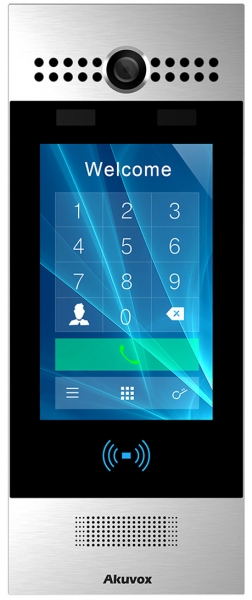

Akuvox - R29C-B

IP Touchscreen Door Intercom Unit with Face Recognition and Body Temperature Measurement, Black

Android OS
Biometric
Bluetooth Wireless Connectivity
Carson Integration
I.P Connectivity
IP65 Rating
PoE

Product Description

The Akuvox R29C-B SIP Touchscreen Intercom is one of the most advanced, smart IP door intercom devices on today's market and includes a variety of contactless authentication methods to help prevent the spread of viruses - including automatic body temperature measurement.

Featuring a high-impact touchscreen interface with intuitive Android-based user interface, this smart door phone device offers a wide range of authentication options for door intercom and access control systems.

The Akuvox R29C-B Door Intercom is fully-equipped with Dual-cameras, NFC & Bluetooth contactless authentication, RFID Card Reader, secure infrared Face Recognition and QR Code Scanner for an all-round secure, smart intercom/access system.

Akuvox R29C-B with body temperature detectionAlso includes Body Temperature Measurement:
In addition, this latest model features automatic body temperature measurement to provide fast, efficient testing and access for staff and visitors where high temperature may be an indicator of potential virus carriers.






The R29C-B features multiple authentication methods for ultimate security and flexibility:
  • Body Temperature Measurement
  • Secure infrared Face Recognition
  • Touchscreen Keypad
  • Touchscreen Digital Phonebook
  • NFC & Bluetooth contactless via Smartphone
  • RFID contactless via ID card or keyfob
  • QR Code (eg. for one-time access)
The R29C-B Intercom can be used for door entrance or gate systems and is IP65 rated for outdoor and high impact areas.
This advanced door entry device also supports ONVIF open standard for effective integration with other 3rd party IP systems and devices such as IP CCTV cameras, NVRs, etc.

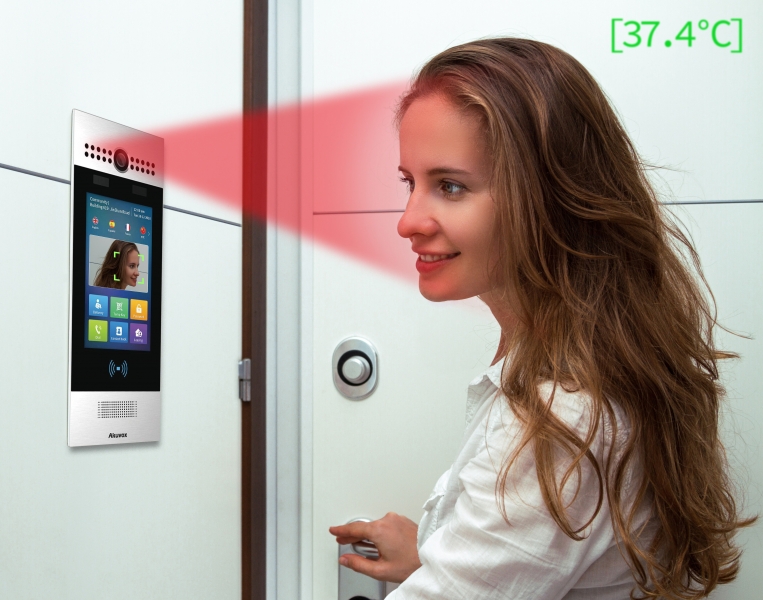

R29C-B features automatic body temperature measurement:

Akuvox R29C Smart Door Intercom

If you have any questions on the range, please call our expert sales and specification teams on T. 0115 977 0075 or download our Akuvox product catalogue here.

- - - - - - - - - - - - - -

SIP Endpoint
• SIP v1(RFC2543), SIP v2(RFC3261)
• Audio codecs: G.711a, G.711μ, G.722
• Video codecs: H.264
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator

Video
• Resolution: up to 1080p
• Maximum image transfer rate: 1080p - 30fps
• High intensity LEDs for picture lighting during dark hours

Networking
• 10/100 Mbps Ethernet connection
• DHCP Client or Static IP
• Network-Time-Protocol

Akuvox R29C Intercom with facial recognition
Door Entry Features
• Android OS for any 3rd party software or customization
• Internal DPDT relay for controlling a door opener;
• Relays controlled individually by DTMF tones or messages
• Multi-way Unlock: IC Card, and PassNumber;
• G-sensor for self-defence alarm
• Volume control for speaker
• Gain control for microphone
• Camera permanently operational, not just during calls
• White balance: auto
• Viewing angle: 3MP camera -120°; a second 5MP camera - 60° (For R29C models only)
• Auto-night mode with LED illumination
• Minimum illumination: 1LUX (without LED illumination)
• Max call length setting

Application Scenarios
• Office door phone with on-site or hosted IP-PBX
• Remote site entry over Internet
• Apartment / flat intercom with door access control
• Business information or a welcome experience for guests


  • 7-inch large capacitive touch screen (works with gloves on)
  • Antispoofing face likeness detection
  • Touch-free body temperature measurement
  • Real-time entrance monitoring
  • Remote door opening
  • Multiple access / authentication methods
  • Dual cameras: one 120° wide-angle 3MP camera with IR and a second VGA 60° angle 5MP camera
  • Flush or Surface mountable (back boxes sold separately)
  • QR Code Scanner for 'single use' access
  • Android 5.1/SIP/ONVIF/Wiegand/PoE/IP65
  • Finish - Black Brushed Steel
  • Supports Carson Living Remote Concierge service
Description R29C-B
Enclosure Rating IP65
Installation Surface mount using R29XS back box; Flush mount using R29XF back box (each sold separately)
Card reader 13.56MHz & 125kHz
Interface RS485 & Wiegand port
Camera 3MP camera, automatic lighting; a second 5MP camera
Screen 7 inch capacitive touch screen
Number of Relays 3
RAM/ROM 2/16GB
Body material Aluminum
Colour Black
Power PoE
Dimensions 324(H) x 130(W) x 27(D) mm
Weight (Net) 1.50kg
Weight (Gross) 1.70kg
