A095S - 4 Door, 8 Readers Door Controller
Click on images to enlarge
Recently Viewed

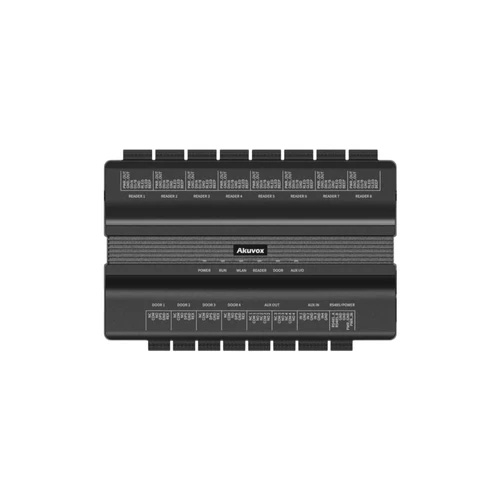

Akuvox - A095S

4 Door, 8 Readers Door Controller

I.P Connectivity
LTE 4G mobile communications standard
PoE
WiFi

Product Description

The Akuvox A095S Access Controller is a next-generation solution built to deliver reliable, scalable, and secure access management across a wide range of commercial and industrial environments. Designed on a Linux operating system, the A095S combines robust performance with flexibility, making it a core component for modern security infrastructures.

With support for up to 100,000 users, 500,000 cards, and 200,000 logs, the A095S provides the processing power and storage needed for large-scale installations. Whether deployed in an office complex, healthcare facility, educational campus, or multi-tenant residential development, it offers the capacity and performance to manage high volumes of access traffic without compromise.

Security and reliability are at the heart of the design. A tamper-proof housing protects the hardware against unauthorised interference, while intelligent functions such as multi-door interlock, anti-pass back, and first-person-in ensure that administrators can enforce advanced access rules with ease. This makes the A095S suitable not only for everyday access control, but also for environments where strict compliance and audit-ready record keeping are required.

The controller supports a wide range of integration options, including Wiegand 26/34/58 readers, RS485 readers, and OSDP v2 readers, ensuring compatibility with modern and legacy readers alike. With dual Ethernet ports, Wi-Fi 6, optional LTE connectivity, and full support for networking protocols such as HTTPS, TLS, and DHCP, the A095S guarantees reliable communication across even the most complex infrastructures.

These features make the Akuvox A095S a versatile and future-proof choice for businesses that demand a high-capacity, secure, and easily managed access control solution.

Key Features:

  • Scalable Multi-Door Control – With 8 relays and 12 I/O ports, the A095S supports flexible integration for multiple entry points, making it suitable for medium to large-scale facilities.

  • Future-Proof Connectivity – Built with Wi-Fi 6, optional LTE, and dual Ethernet ports, the device ensures seamless network integration for both wired and wireless infrastructures.

  • Reliable Power Management – Supporting PoE+ and 12VDC input, with up to 500mA output across 8 ports, the controller powers connected devices while maintaining stable performance.

Applications:

  • Office buildings

  • Healthcare facilities

  • Educational institutions

  • Industrial sites

  • Retail and shopping centres

  • Multi-tenant residential complexes

Specification Sheet

  • Capacity for 100,000 users and 500,000 cards
  • Tamper-proof design for enhanced security
  • 200,000 access logs storage for full audit trails
  • DIN Rail or wall-mounted installation flexibility
  • Supports OSDP v2 card readers for secure and encrypted communication
Description A095S
Power input 12VDC / 5A
Wiegand/RS485 port 8
Relays 8
Input 12
Power output 8
WiFi IEEE 802.11a/b/g/n/ac/ax, 2.4GHz & 5GHz
LTE Optional
SIM card slot Optional
TF card slot 1
Ethernet port 2xRJ45 (1 x POE, 1 x Data), 10/100 Mbps, adaptive
Reset 1
Status lights Support
Installation Wall-mounted & DIN Rail
Working Humidity 10%~90%
Working Temperature -10℃ ~ +55℃
Storage Temperature -20℃ ~ +70℃
Dimension 208(L) x 128.5(W) x 37(H) mm
Weight (Net) 1.20kg
Weight (Gross) 1.60kg
