Akuvox - A092S

IP Door Access Controller

I.P Connectivity
List Price
£450.00
$0.00
€0.00
incl. VAT
Show prices in GBP
Show prices in USD
Show prices in EUR

Product Description

The Akuvox A092S Door Access Controller allows third-party card readers and keypad entry devices to be added to an IP network for simple configuration and control. Readers are connected to the A092S via either Wiegand, OSDP or RS485.

Featuring 2 built-in relays, the A092S 2-Door Access Controller has the capability of controlling up to two doors either independently or in a multi-door interlock configuration ('airlock' configuration). Each door can be connected with 2 x access units, 2 x entry/exit buttons and 1 x firealarm.

The A092S is ideal for applications such as hospital buildings, commercial buildings and warehouses as it supports 50,000 users and various functions that enable you to control who comes into your building. The optional backup battery and tamper-proof design also makes it more secure and reliable.

Ideal for retrofit integration with third-party and legacy access control devices.


Specification Sheet

Manual

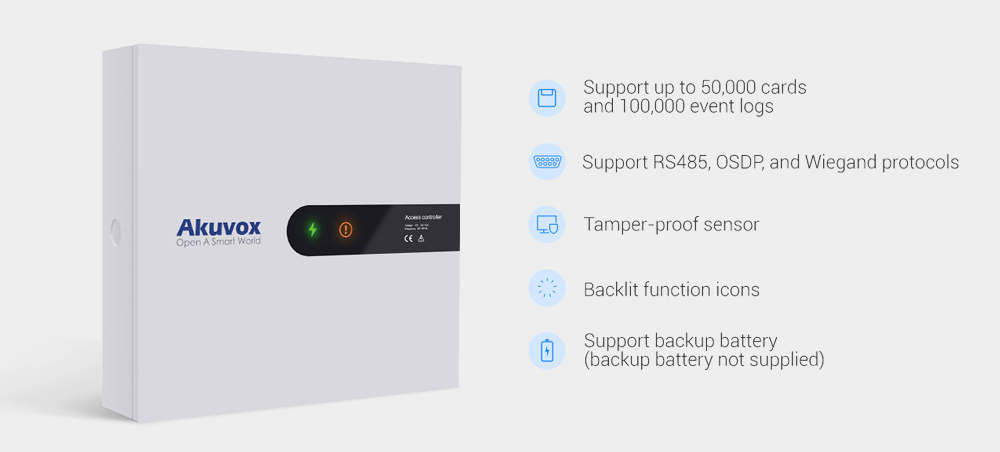

  • Supports up to 50,000 cards and 100,000 card presenting records
  • Supports TCP/IP communication and web interface for management
  • Supports multi-door interlock function and anti-pass back function
  • Supports RS-485, OSDP, Wiegand protocol for accessing card readers
  • Supports emergency door release (EDR)
  • Supports tamper-proof alarm
  • Easy to establish large-scale access control system with Akuvox ACMS
  • Back-up battery design
Description A092S
Front panel: SGCC
Tamper proof alarm: Support
RAM / ROM: 64MB / 128MB
Power output: 12V 800mA per door for locks/strikes, readers, and input devices
Power input: 100~240VAC 50/60Hz
Wiegand port: 4
Backup battery: Support
Relays out: 2
Installation: Wall-mounted
Exit button input: 2
RS485 port: Support
Working Humidity: 10%~90%
Ethernet port: RJ45, 10/100 Mbps, adaptive
Working Temperature: -20℃ ~ +55℃
Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Card Readers support: Wiegand 26/34 readers, OSDP readers, RS485 readers
Dimensions: 365 (W) x 340 (H) x 86 (D) (mm)
Weight (Net) 3.50kg
Weight (Gross) 6.00kg
