Salto - NEOXX-G4
G4 Neoxx Electronic Smart Padlock
Product Description

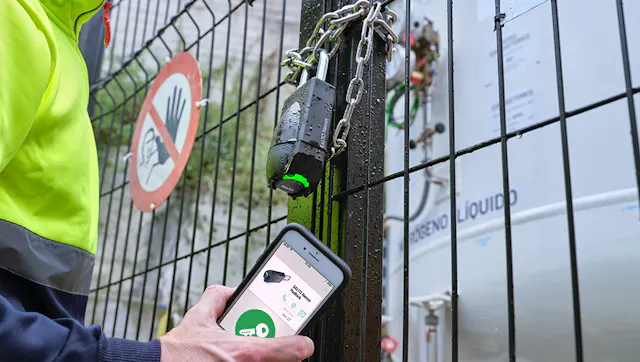

The Salto G4 Neoxx Padlock is a robust, high-security electronic padlock engineered for the toughest access control environments. Built from hardened steel and featuring a double-layered armoured housing, it delivers exceptional durability against physical attacks, falls, and extreme weather.
Designed for both remote and on-site applications, the Neoxx Padlock incorporates Salto’s leading-edge technologies, including RFID, Bluetooth Low Energy (BLE) and NFC for versatile, keyless entry. Its compatibility with Salto Space (on-premise), Salto KS, and Homelok (cloud platforms) makes it suitable for everything from industrial sites to remote infrastructure security.
Maintenance is streamlined through a user-friendly battery change process and remote battery monitoring, ensuring minimal downtime. In emergencies, access can be granted via a portable programming device (PPD), maintaining security without compromising convenience.
This padlock is mechatronically certified to EN16864:2018 Grade 4, ensuring compliance with the highest security standards.
Applications:
- Utility & energy infrastructure
- Remote telecommunications towers
- Transport and logistics depots
- Industrial and chemical plants
- Outdoor gated compounds or restricted zones
Specification Sheet
- Click to download: Salto-datasheet-nxp4-eng.pdf
Manual
- Click to download: user_manual_padlock_p4_4ds00059.pdf
- Salto SVN and BLUEnet Wireless network capable.
- High-security padlock made of hardened steel with a removable shackle model option, which can be completely detached from the padlock body.
- All communication between the carrier and the electronic padlock is encrypted and secured.
- Cover case with double-layered structure 70mm x 174mm x 32mm guarantees the ultimate protection from falls, shocks, and the most extreme environments or usage.
- RFID, BLE (Bluetooth Low Energy) and NFC technologies onboard. Users can easily operate the electronic padlock with their smart card or with an iOS or Android smartphone.
- Security chain non- demountable model with safety chain to protect the padlock from burglary/dropping.
- Tested against extreme temperatures: Including freezing conditions (-35ºC) and high heat (+65ºC).
- Optical signalling through light ring. Dual colour green/ red to indicate access authorisation. Acoustic signal optional.
- Equipped with anti-drilling protection.
| Description | NEOXX-G4 |
|---|---|
| Certifications | CE, FCC/IC, RCM, MIC, IK09, EN16864:2018 |
| Power source | 4 LR1 alkaline batteries |
| Number of openings | Up to 130.000 |
| Maximum events on lock audit | Up to 2.200 (non volatile memory) |
| Enviromental conditions | -35ºC/ +65ºC (without condensation) |
| Finishes | Polished chrome with black housing mat (Rubber finish) |
| IP class | IP68 |
| Shackle width | 11mm |
| Shackle length | 50mm |
| Housing dimensions | 70 (H) x 174 (W) x 32 (D)mm |
| Weight (Net) | 1.06kg |
| Weight (Gross) | 1.10kg |
