You are here: Audio > Amplifiers > Mixer Amplifiers > 240W 6 Input Network-streaming Mixer Amplifier

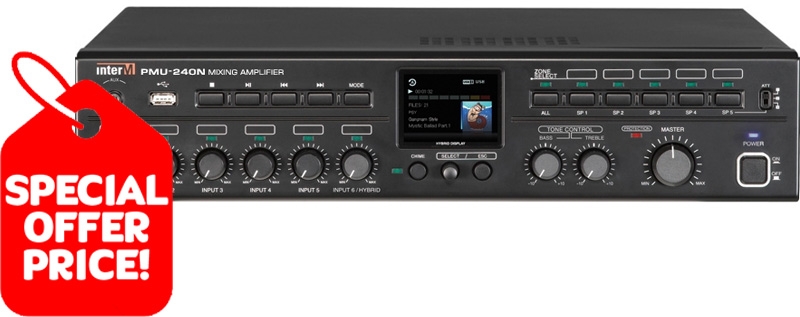

Inter-M - PMU240N
240W 6 Input Network-streaming Mixer Amplifier
List Price
£355.94
$876.80
€711.70
incl. VAT
Product Description
The Inter-M PMU240N is a network-enabled mixer amplifier featuring audio-over-IP (AoIP) receiver compatibility when used with Inter-M's AOE212N AoIP Transmitter.
This 240W, 6 input Mixer Amplifier features a whole host of latest technology audio functionality never before seen in a commercial audio amplifier.
• Audio-over-IP signal distribution (when used in conjunction with AOE212N)
• USB Media Player
• Internet Radio
• On-board colour display
• Energy efficient power consumption
• Conventional mixer amplifier features & functionality
The audio-over-IP functionality of the PMU series amplifies allows for audio signal distribution and system control from a single point to multiple zones or sites via standard LAN, WAN or Web Connectivity.
The PMU240N features ethernet connectivity to allow integration with Inter-M's AOE212N Audio-over-IP Transmitter, which will allow for transmission, which will allow for Audio-over-IP Transmitter, which will allow for transmission of conventional audio sources via Cat5e/6/7 or even wireless.
The PMU amplifier receives the streamed audio signal which can be selected as one of the range of audio inputs available to this device.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The PMU-240N also features a choice of digital audio media choices:
• USB Media Player - The amplifier features a built-in USB sound card which allows playback of MP3, WMA, WAV audio files directly from a USB memory stick.
• Internet Radio - The PMU Amplifier series features built-in internet radio facility, without permanent connection to a PC. Using the amplifiers ethernet connection, the PMU will allow for selection of the seemingly limitless number of streamed radio channels available online. Internet radio connectivity is via a network/LAN/WAN and TCP-IP or RTSP.
(*Initial set-up of required internet radio channels on PMU requires temporary connection to a PC/browser).
• Network Background Music - These amplifiers can also be connected directly (or over a network) to a PC or laptop featuring a sound, effectively providing a 'media server' facility to be outputted via the PMU amplifier.
This 240W, 6 input Mixer Amplifier features a whole host of latest technology audio functionality never before seen in a commercial audio amplifier.
• Audio-over-IP signal distribution (when used in conjunction with AOE212N)
• USB Media Player
• Internet Radio
• On-board colour display
• Energy efficient power consumption
• Conventional mixer amplifier features & functionality
The audio-over-IP functionality of the PMU series amplifies allows for audio signal distribution and system control from a single point to multiple zones or sites via standard LAN, WAN or Web Connectivity.
The PMU240N features ethernet connectivity to allow integration with Inter-M's AOE212N Audio-over-IP Transmitter, which will allow for transmission, which will allow for Audio-over-IP Transmitter, which will allow for transmission of conventional audio sources via Cat5e/6/7 or even wireless.
The PMU amplifier receives the streamed audio signal which can be selected as one of the range of audio inputs available to this device.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The PMU-240N also features a choice of digital audio media choices:
• USB Media Player - The amplifier features a built-in USB sound card which allows playback of MP3, WMA, WAV audio files directly from a USB memory stick.
• Internet Radio - The PMU Amplifier series features built-in internet radio facility, without permanent connection to a PC. Using the amplifiers ethernet connection, the PMU will allow for selection of the seemingly limitless number of streamed radio channels available online. Internet radio connectivity is via a network/LAN/WAN and TCP-IP or RTSP.
(*Initial set-up of required internet radio channels on PMU requires temporary connection to a PC/browser).
• Network Background Music - These amplifiers can also be connected directly (or over a network) to a PC or laptop featuring a sound, effectively providing a 'media server' facility to be outputted via the PMU amplifier.
Specification Sheet
- Click to download: pmuSeries60n-600n_spec.pdf
Manual
- Click to download: pmu-60n_120n_240n_manl.pdf
- Audio-over-IP (AoIP) connectivity for multi-zone and muloti-site audio streaming (when used in conjunction with InterM AEO212 AoIP Transmitter)
- Energy efficient amplifier - switch Mode Power Supply delivers high power output with low energy consumption
- On-board MP3/WMA/WAV audio media player via USB memory stick
- On-board Internet Radio facility (requires internet connection via rear RJ45 connector)
- 240W 100v line power output
- 6 x audio inputs (3 x XLR, 2 x 3.5mm jack, 1 x dual phonos)
- Phantom Power to audio inputs 1, 2 & 3
- Five zone loudspeaker selector switches, allows for independent or all-zone broadcast
- Large, full-colour LCD front display screen shows operation status, output level, internet radio channel, MP3 track details & cover art
- Lightweight, reduced size amplifier
- External MUTE and Telephone Paging input
- CHIME and SIREN facility with external trigger
| Description | PMU240N |
|---|---|
| Rated Output Power | 240W @ 100v line / 4Ω |
| Frequency Response (SP OUT/1W output) | 80Hz ~ 15kHz |
| T.H.D @ Rated output 1kHz | Less than 0.5% |
| S/N @ Rated output | More than 78dB |
| Graphic Equaliser (100Hz 330Hz 1kHz 3.3kHz 10kHz) | ±10dB |
| Input 1~5 | Mic: -50dBu/2kΩ, Line: -10dB/2kΩ |
| Input 6 | -10dBu/10kΩ |
| Tel In | 0dBu/10kΩ |
| Ext In | 0dBu/20kΩ |
| Amp In | 0dBu/47kΩ |
| Mix Out/Impedance | 0dBu/10kΩ |
| Operating Temperature | -10°C ~ +40°C |
| Power Source | 220v AC / 60Hz |
| Power Consumption (1/8W output) | 75W |
| Dimensions | 420(W) × 88(H) × 319(D) mm |
| Weight (Net) | 5.20kg |
| Weight (Gross) | 10.40kg |
