All-in-one Axis Network Audio Microphone Console
List Price
£1,299.00
$0.00
€0.00
incl. VAT
Product Description
The AXIS 2N SIP Mic is an all-in-one network microphone console for use as part of an integrated audio-over IP public address system centred around the Axis Network Audio product range.
Featuring high-quality gooseneck microphone, 12 configurable buttons and built-in audio management server, the 2N Sip Mic provides remote communication and zone control to the Axis IP loudspeaker range.
The 2N SIP Mic is ideal for use in:
- Schools and campuses
- Office buildings
- Health care services
- Sports facilities
.jpg)
Smart announcements in multiple zones
The Axis 2N Sip Mic allows for both line and pre-recorded announcements, messages and tones. The microphone consoles 12 call buttons can easily be configured to achieve your chosen actions via a simple, user-friendly web interface. Each of the 12 buttons can be assigned to an individual speaker, zone or group of zones - and can easily be amended should system use requirements change.
Two-way communication
Communicates from other IT systems to the paging console with an inbuilt speaker thanks to SIP protocol. Pre-recorded announcements Upload / record a message via the microphone and then by a simple push of a button, play it to a designated zone. It is ideal for places where regular messages are broadcasted several times a day.
Easy configuration

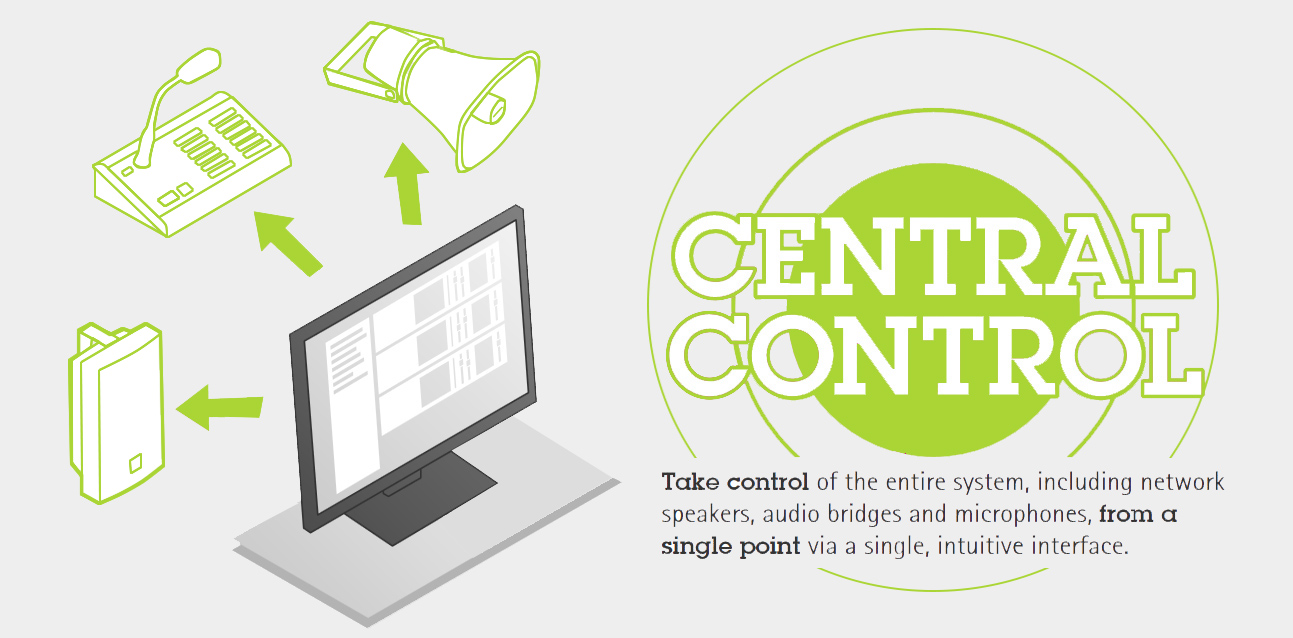

The zone, priorities and pre-recorded messages are simply configured via the easy to use web interface. Axis Vapix support for paging Broadcast directly from 2N SIP Mic to compatible Axis Speakers and cameras.
Easy installation with a single cable
The 2N SIP Mic is easy to install, using a PoE cable to connect to an existing IP network. Listen-in function with a simple press of a button - you can listen to what is happening in a certain zone.
Announcement pre-recording
Record your own messages via the software application or using the microphone console itself.
Support for IP PBX (SIP)
The 2N SIP Mic device may function independently or be connected to IP PBX.
Specification Sheet
- Click to download: 2n_sip_mic_en_1708.pdf
- Click to download: Axis Network Audio System Brochure.pdf
Manual
- Click to download: 2N_SIP_MIC_en_1709.pdf
- Server-less paging to up to 12 zones
- Two-way communication
- Pre-recorded announcements
- Future-proof with openness and integration
- Quick installation with just one network cable (PoE)
- Pre-recorded or live announcements
- 12 configurable buttons for 12 zones
- All-in-one microphone console

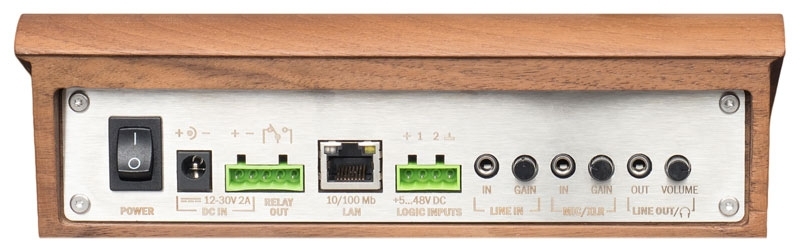

| Description | 2N SIP MIC |
|---|---|
| Audio codecs | G.711u, G.722 |
| Speakers | 2 built-in, stereo, power output 2x1 W |
| Logical inputs | 2, galvanically separated, sensitive to contact or voltage from 5 to 48 V |
| Relay output | 1, galvanically isolated, NO and NC contact, max load 48 V, 1 A |
| Headphone output | 3.5 mm jack, stereo, power output 2x30 mW, min. load impedance of 16 Ohm, DR. 101 dB, THD+N -85 dB |
| Primary microphone input | symmetric, XLR, integrated phantom power supply 24 V, DR 88 dB, THD+N -82 dB |
| Headset microphone input | 3.5 mm jack, integrated power supply for electret microphones, DR 84 dB, THD+N -78 dB |
| Line input | 3.5 mm jack, mono or stereo non-symmetric stereo, DR 93 dB, THD+N -82 dB |
| Power supply | 12 to 32 V, power draw max. 1 A PoE to 802.3af standard |
| Dimensions | 209(W) x 65(D) x 143(H) mm |
| Operating temperature | 0 to +40°C |
| Weight (Net) | 1.60kg |
| Weight (Gross) | 2.00kg |
