Axis Communications - C1004-EB
All-in-one Network Audio Cabinet Speaker - black
List Price
£714.30
$0.00
€0.00
incl. VAT
Product Description
The Axis C1004-EB network cabinet speaker is an ‘all-in-one’ audio-over-IP speaker system which can be used to play background music or deliver live/scheduled audio announcements to indoor locations.
- Complete IP audio system in a single unit
- Live or scheduled announcements
- Background music
- Finished in black
The C1004-EB IP speaker can be easily installed using standard network cable infrastructure and mounted onto a wall or ceiling using the supplied bracket.
With its capability of high sound pressure exceeding 96 dB, this network speaker can be integrated into new or existing IP systems to provide a flexible, scalable audio solution. Pre-installed with the Axis Audio Player application this enables users to play background music and audio announcements with ease. Playlists can be created/scheduled from music saved to the on-board MicroSD card (not included), or from a variety of supported music streaming services. Live announcements are supported and pre-recorded audio clips can be scheduled to play at specific times of the day. Audio clips can also be set to play in the event of a triggered alarm that has been configured on-board an IP camera or in Axis Camera Station video management software.
System Diagram:
Users can create specific zones to address many speakers at the same time; this makes it possible to play different background music or announcements, as well as control audio settings for each speaker individually or simultaneously. The user-defined zones are particularly helpful in larger systems as they make it easier for users to manage settings and ensure the right messages or music are delivered to the right location at the right time.
Built-in test tones are provided for calibration and verification during installation, allowing the user to optimise the speaker’s performance to its surroundings. Once installed, an Auto Speaker Test can be performed by the user from a remote location to confirm that the speaker is in full working order by playing and measuring the test tones.
Axis C1004-EB Installation Tutorial:
Specification Sheet
- Click to download: ds_c1004e_t10074226_en_1711.pdf
- Click to download: Axis Network Audio System Brochure.pdf
Manual
- Click to download: ig_c1004e_1868499_en_1805.pdf
- Feature-packed IP speaker provides an all-in-one audio solution for indoor applications
- Connects directly to an IP network using PoE for communication and power
- Built-in amplifier enabling high sound pressure exceeding 96 dB for the delivery of clear audio
- Pre-installed Axis Audio Player is a handy app that allows users to schedule and play audio clips
- Easy music streaming
- Voice announcements
- All-in-one speaker system

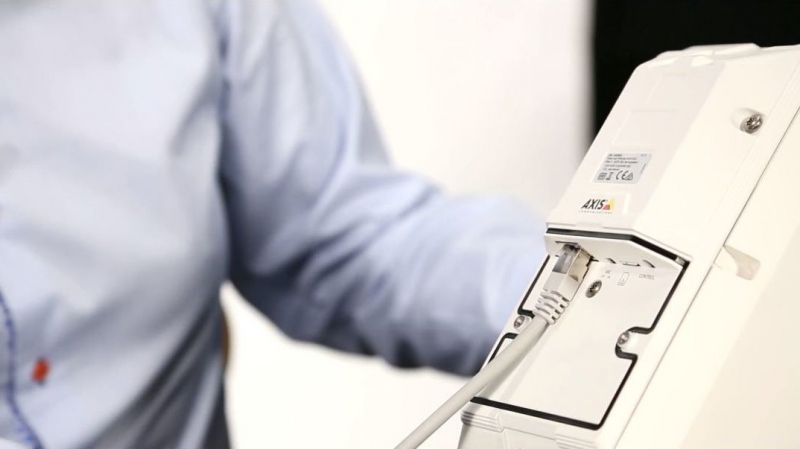

- Quick installation with just one network cable (PoE)
- Finished in black
| Description | C1004-EB |
|---|---|
| Audio streaming | one-way/two-way, mono |
| Audio compression | G.7 1 1 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis μ - law 16 kHz, W A V, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz. |
| Audio input/output | built - in microphone (can be disabled) |
| Built - in microphone specification | 50 Hz - 16 kHz |
| Speaker max sound pressure level | 96 dB |
| Frequency response | 60 Hz - 20kHz |
| Network security | password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log, centralised certificate management. |
| Supported protocols | IPv4/v6 c, HTTP, HTTPS b, SSL/TLS b, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP T M, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, T CP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP. |
| Music streaming | music playback through AXIS Audio Player. Offline streaming from SD card and online streaming support. |
| Voice announcement | Up to 50 pre - recorded voice announcements through AXIS Audio Player. Voice announcement through built-in SIP support for connection to any IP telephone /VoiP system and VAPIX support. |
| Application programming interface | Open API for software integration, including VAPIX®, AXIS Video Hosting System (A VHS) with One - click Connection, AXIS Camera Application Platform (ACAP). |
| Audio synchronisation | Built - in audio synchronization c for up to 50 speakers with unicast and hundreds of speakers with multicast. No additional speaker management software or hardware required. |
| Intelligent audio | auto speaker test (verification via built-in microphone). |
| Power | Power over Ethernet (P oE) IEEE 80 2.3af/80 2.3af Type 1 Class 3. |
| Connectors | RJ45 10BASE - T/100BASE - TX PoE |
| Operating conditions | -20 °C to 50 °C (4 °F to 122 °F). |
| Colour | Black |
| Dimensions | 290(H) x 200(D) x 196(W) mm (including bracket). |
| Weight (Net) | 3.00kg |
| Weight (Gross) | 4.00kg |
