C1004-EW - All-in-one Network Audio Cabinet Speaker - white
C1004-EW - All-in-one Network Audio Cabinet Speaker - white
C1004-EW - All-in-one Network Audio Cabinet Speaker - white
C1004-EW - All-in-one Network Audio Cabinet Speaker - white
Recently Viewed
cie group -
List Price £588.00 incl. VAT
Axis Communications - C1004-EW

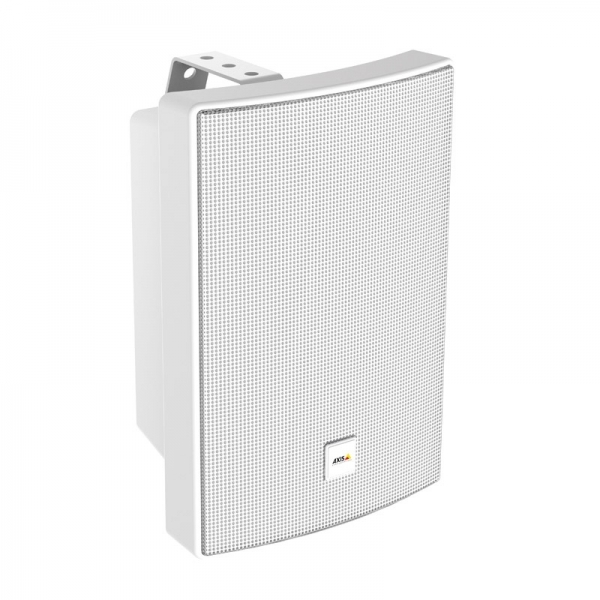

All-in-one Network Audio Cabinet Speaker - white

I.P Connectivity
I.P. Audio
PoE
List Price
£588.00
$0.00
€0.00
incl. VAT
Show prices in GBP
Show prices in USD
Show prices in EUR

Product Description

The Axis C1004-EW network cabinet speaker is an ‘all-in-one’ audio-over-IP speaker system which can be used to play background music or deliver live/scheduled audio announcements to indoor locations.
  • Complete IP audio system in a single unit
  • Live or scheduled announcements
  • Background music
  • Finished in white
The C1004-EW IP Speaker can be easily installed using standard network cable infrustructure and mounted onto a wall or ceiling using the supplied bracket.

With its capability of high sound pressure exceeding 96 dB, this network speaker can be integrated into new or existing IP systems to provide a flexible, scalable audio solution. Pre-installed with the Axis Audio Player application this enables users to play background music and audio announcements with ease. Playlists can be created/scheduled from music saved to the on-board MicroSD card (not included), or from a variety of supported music streaming services. Live announcements are supported and pre-recorded audio clips can be scheduled to play at specific times of the day. Audio clips can also be set to play in the event of a triggered alarm that has been configured on-board an IP camera or in Axis Camera Station video management software.

System Diagram:
C1004-EW All-in-one Network Audio Cabinet Speaker, white

Users can create specific zones to address many speakers at the same time; this makes it possible to play different background music or announcements, as well as control audio settings for each speaker individually or simultaneously. The user-defined zones are particularly helpful in larger systems as they make it easier for users to manage settings and ensure the right messages or music are delivered to the right location at the right time.

Built-in test tones are provided for calibration and verification during installation, allowing the user to optimise the speaker’s performance to its surroundings. Once installed, an Auto Speaker Test can be performed by the user from a remote location to confirm that the speaker is in full working order by playing and measuring the test tones.


Axis C1004-EW Installation Tutorial:

Specification Sheet

Manual

  • Feature-packed IP speaker provides an all-in-one audio solution for indoor applications
  • Connects directly to an IP network using PoE for communication and power
  • Built-in amplifier enabling high sound pressure exceeding 96 dB for the delivery of clear audio
  • Pre-installed Axis Audio Player is a handy app that allows users to schedule and play audio clips
  • Easy music streaming
  • Voice announcements
  • All-in-one speaker system
  • Quick installation with just one network cable (PoE)
  • Finished in white
Description C1004-EW
Audio streaming one-way/two-way, mono
Audio compression G.7 1 1 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis μ - law 16 kHz, W A V, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz.
Audio input/output built - in microphone (can be disabled)
Built - in microphone specification 50 Hz - 16 kHz
Speaker max sound pressure level 96 dB
Frequency response 60 Hz - 20kHz
Network security password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log, centralised certificate management
Supported protocols IPv4/v6 c, HTTP, HTTPS b, SSL/TLS b, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP T M, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, T CP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP.
Music streaming music playback through AXIS Audio Player. Offline streaming from SD card and online streaming support.
Voice announcement Up to 50 pre - recorded voice announcements through AXIS Audio Player . Voice announcement through built-in SIP support for connection to any IP telephone /V oiP system and VAPIX support.
Application programming interface Open API for software integration, including VAPIX®, AXIS Video Hosting System (A VHS) with One - click Connection, AXIS Camera Application Platform (ACAP).
Audio synchronisation Built - in audio synchronization c for up to 50 speakers with unicast and hundreds of speakers with multicast. No additional speaker management software or hardware required.
Intelligent audio auto speaker test (verification via built-in microphone).
Power Power over Ethernet (P oE) IEEE 80 2.3af/80 2.3af T ype 1 Class 3 ( max 12.95 W).
Connectors RJ45 10BASE - T/100BASE - TX PoE
Operating conditions -20 °C to 50 °C (4 °F to 122 °F).
Colour White
Dimensions 290(H) x 200(D) x 196(W) mm (including bracket).
Weight (Net) 3.00kg
Weight (Gross) 3.60kg
