Product Description

Take control of your entire Axis Network Audio system
This includes network speakers, audio bridges and microphones, for which you can control device setup, zones, content, volume and scheduling from a single point using AXIS Audio Manager. You can also monitor the status of all your Axis Audio devices from that same interface. This way you know that everything is working the way it should be.

You can schedule a mix of announcements, advertisement and background music throughout the day, week and year. You can also choose whether you want to manage your content centrally, e.g. from headquarters, or locally from each one of your sites.

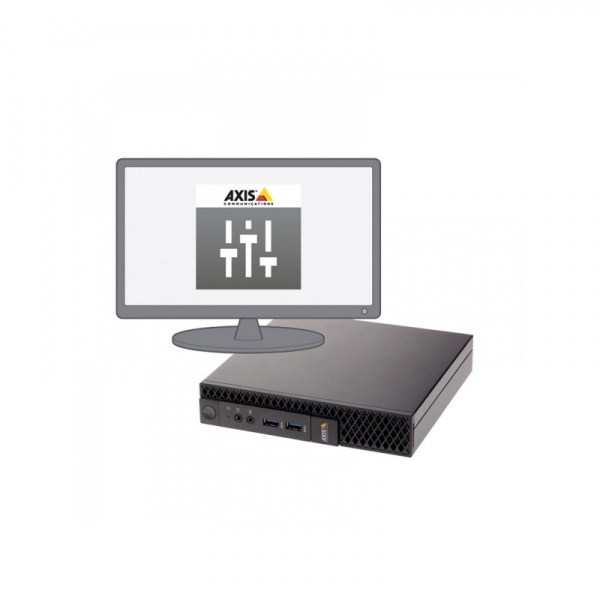

AXIS Audio Manager C7050 Server is a complete audio management package including both hardware and software. The heart and the brain of your network audio system, it gives you  control and you can manage all your audio devices from a single user interface.

AXIS Audio Manager, enables larger and more advanced audio installations. Easy-to-install and operate, AXIS Audio Manager is perfect for central management of audio content and scheduling in larger, distributed setups.

AXIS Audio Manager C7050 Server can be connected to Dante, using virtual soundcards.

With quick installation, intuitive operation, and central management, AXIS Audio Manager realises the benefits of network audio.

The right content in the right place

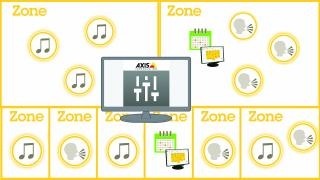

With AXIS Audio Manager you can define multiple different zones and then broadcast music, pre-recorded and/or live announcements to any one or more of them. Or, you can broadcast the same content to all of your zones at once. So you can play the right content in the right places whenever you want.

Specification Sheet

  • One single user interface for your entire Axis Network Audio System
  • Central control of the system
  • Zone management
  • Audio content management
  • Scheduling control of programming
Description C7050
Processor Intel Core i3 - 7100T , 3,4 GHz, 3MB Cache, 2C/4T
Memory 8GB (1x8GB) SO - DIMM 2400 MHz DDR4, non ECC
Storage M.2 128 GB SATA Solid State Drive
Graphic card Intel integrated graphics
Operating system Microsoft Windows 10 IoT 20 16 LTSB
Power 65 W, external power adapter AC input 90-264 V, 50/60 Hz
Connectors 6x External USB 3.1 Gen 1 (2 front/4 rear) 1x RJ45 Ethernet 1x HDMI 1.4 1x Display P ort 1.2 1x UAJ (6x External USB 3.1 Gen 1 (2front/4 rear), 1x RJ45 Ethernet, 1x HDMI 1.4, 1x Display port 1.2, 1x UAJ (Universal Audio Jack), 1x Audio line out
Mounting option VESA 100 x 100 mm (3 15/16 x 3 15/16 in)
Operating conditions 5 °C to 35 °C ( 4 1 °F to 95 °F)
Licenses 300 audio device licenses included
Audio streaming Stereo/mono from 32 kbps to 320 kbps, unicast or multicast, MPEG - 1 Audio Layer 2 (MP2) for internal streaming
Audio decoding see avlib audio codec support
Audio VoIP G.711u, G711a
Storage -40 °C to 65 °C ( - 40 °F to 149 °F )
Dimensions 182 x 33 x 178 mm (7.2 x 1.4 x 7.0 in)
Event triggers HTTP commands triggering
Scheduler Playback scheduler
Logs System log, syslog server support
Security Multiple user access levels with password protection
Weight (Net) 1.17kg
Weight (Gross) 0.00kg
