Axis Communications - C1410

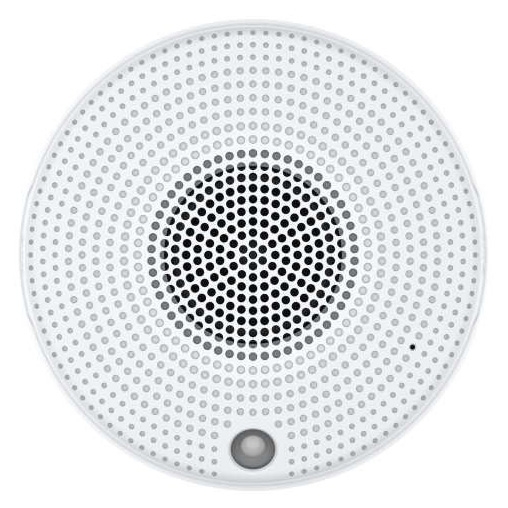

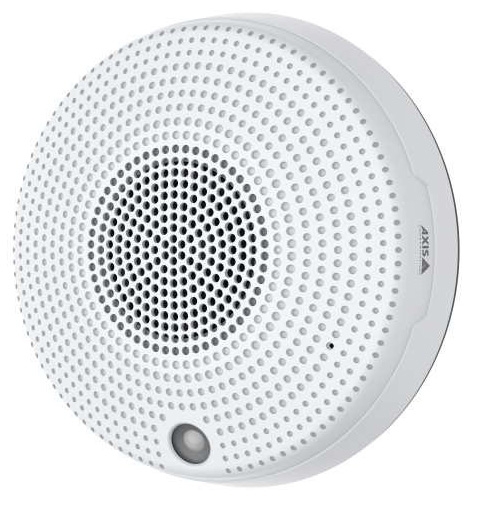

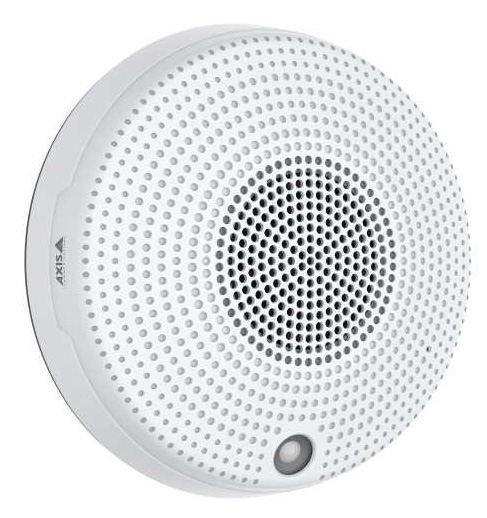

Axis Network Mini Ceiling Speaker with PIR sensor - white
List Price
£356.40
$0.00
€0.00
incl. VAT
Product Description
The AXIS C1410 Network Mini Speaker makes audio smart and easy and opens up a wealth of new possibilities. These audio-over-IP surface-mount speakers are ideal for background music and for live and scheduled public announcements, class and shift change tones and audio advertising.

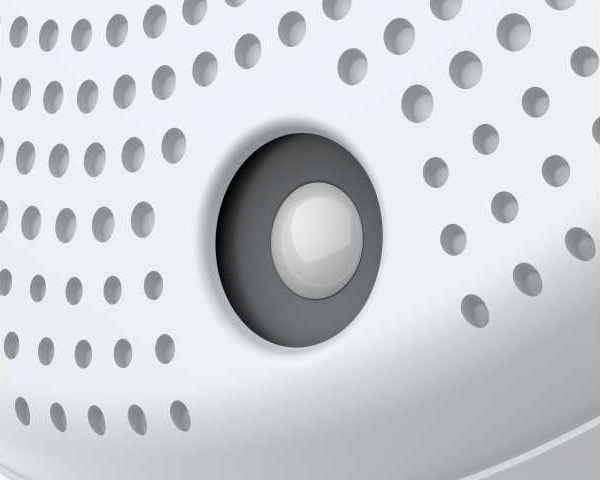

Features integrated PIR Sensor
This unique network loudspeaker also features a built-in motion detection PIR sensor, allowing for triggered messaging, audio advertising or warnings when someone is in close proximity to the speaker.
Audio made easy
AXIS C1410 IP Speaker is a complete high-quality audio system in a single unit. There’s no need for an amplifier, mixer, digital signal processor, streaming functionality, microphone or power supply because they're all built-in. And because it’s preconfigured, you don’t have to be a sound expert to set it up. In other words, AXIS C1410 simply works – and sounds great – right out of the box. Plus, a built-in auto speaker-test function means you can be confident it will keep on working. It connects to your existing IP network and it’s powered over a single Power over Ethernet cable. Audio made smart
AXIS C1410 is a network solution which can be combined into a flexible and scalable system - this makes it easy to add /remove speakers in an instant. By creating zones to address a number of speakers simultaneously, it is possible to direct different background music, or live/scheduled announcements, as well as control and change the volume for each unit individually and all together. This means you can send your customers the best music and most efficient messaging to the right place, at the right time. AXIS C1410 can run onboard applications – such as music streaming.
Schedule your announcements to inform your customers about opening hours or share your latest campaign. Announcements can be triggered by events captured by a surveillance camera, such as someone passing an exit the wrong way. With AXIS C1410 you can also easily make live voice announcements, such as help needed at cash out.
Specification Sheet
- Click to download: Axis C1410 Mini IP Speaker.pdf
- Click to download: Axis C1410 network mini speaker - dimensions.pdf
- Integrated PIR sensor for motion detection
- Feature-packed IP speaker provides an all-in-one audio solution for indoor applications
- Connects directly to an IP network using PoE for communication and power
- Built-in amplifier enabling high sound pressure exceeding 96 dB for the delivery of clear audio
- All-in-one network speaker system
- Quick installation with just one network cable (PoE)
- Scheduled and customized playlists
- Scheduled or live voice announcements

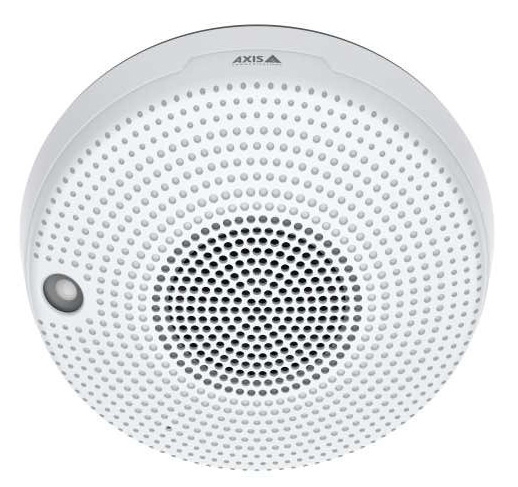

- Wall or ceiling mount
| Description | C1410 |
|---|---|
| Audio compression | AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz |
| Audio input/output | Built-in microphone (can be disabled) |
| Built-in microphone specification | 50 Hz - 12 kHz |
| Speaker component | One way enclosure with 2.5 inches broadband dynamic cone speaker |
| Max sound pressure level | 90dB |
| Frequency response | 100 Hz - 20 kHz |
| Coverage pattern | 145° coaxial |
| Amplifier description | Built-in 7 W Class D amplifier |
| Network security | Password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, Digest authentication, User access log, Centralized Certificate Management |
| Supported protocols | IPv4/v6c , HTTP, HTTPSb , SSL/TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, A |
| Music streaming | Music playback through AXIS Audio Player |
| Voice announcement | Up to 50 pre-recorded voice announcements through AXIS Audio Player. Voice announcement through built-in SIP support for connection to any IP telephone /VoiP system and VAPIX support |
| VoIP | Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems. Peer to peer or integrated with SIP/PBX. Tested with: SIP client such as Cisco, Bria and Grandstream and PBX suppliers such as Cisco and Asterisk. |
| Audio synchronisation | Built-in audio synchronizationc for up to 50 speakers with unicast and hundreds of speakers with multicast. No additional speaker management software or hardware required. |
| PIR sensor | Passive infrared (PIR) motion sensor. Max range: 6 m (19.7 ft) |
| Dimensions | 182(Ø) X 52(D) mm |
| Weight (Net) | 0.60kg |
| Weight (Gross) | 0.80kg |
