Inter-M - NCM01

Analogue-to-IP Microphone Converter

I.P Connectivity
I.P. Audio
List Price
£738.00
$1,052.28
€854.15
incl. VAT
Show prices in GBP
Show prices in USD
Show prices in EUR

Product Description

Part of the Inter-M Analogue-to-IP Audio range, the NCM01 is an analogue-to-IP Microphone signal converter.

The NCM01 allows a conventional analogue microphone (paging/desk microphone, for example) to be converted to an IP signal and connected to a large scale network-audio system.

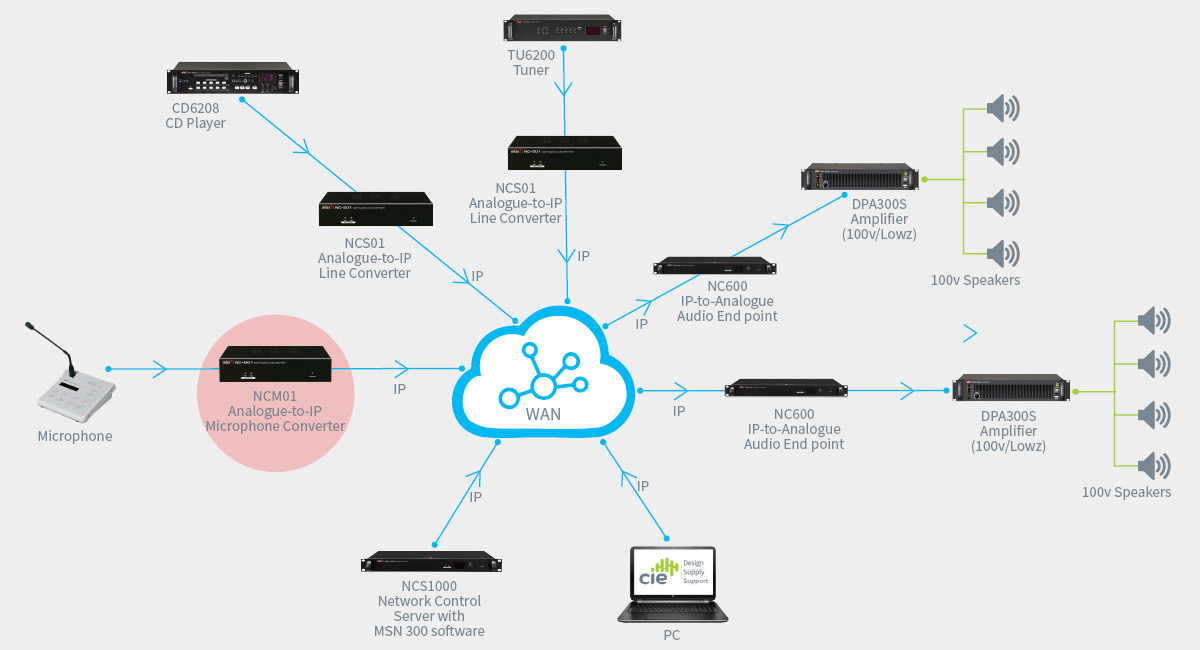

Inter-M Diagram NCM01

In conjunction with the Inter-M NCS1000 Network Control Server and NC600 IP-to-Analogue Audio End Points, standard analogue audio devices including sources and 100v line / low impedance amplication and loudspeakers can be fully integrated into a wide area network audio system.

NCS01 Analogue-to-IP Line Source Converter - Similar to the NCM01 Microphone Converter, the NCs01 converts analogue source devices to connect to the network.

The NCM01 IP Audio Transmitter will also simultaneously send contact closure data signals over IP, allowing for switching of devices such as beacons, locks, lighting etc for extended systems integration.

Specification Sheet

  • Easily integrates with Inter-M's NCS1000 Network Control Server
  • High quality voice distribution
  • 1U Half Rack Size
  • Contact interface of RM-6016 via network
  • Professional Audio-over-IP distribution over TCP/IP local and wider area networks
  • Supports DHCP, STATIC IP (Default setting: STATIC IP, 192.168.1.99)
  • Supports network redundancy
  • Converts standard analogue microphone signals to I.P
Description NCM01
Audio Input 1 Channel
Input Sensitivity 0dBV
Frequency Response 20Hz ~ 20kHz
THD+N ratio (20kHz LPF, 0 dBV, 1kHz) Less than 0.1%
S/N (20kHz LPF, 0 dBV, 1kHz) Greater than 80dB
Sampling Frequency 44.1, 48kHz
Contact Closure Output (NCM01) 16 Channel
Network Communication 10/100/1000 Base-T (RJ-45)
Operating Temperature 0° ~ +40°
Power Source Input: 24v DC, 800mA / Output: 24v DC, 500mA
Dimensions 210(W) × 44(H) × 180(D)mm
Weight (Net) 1.00kg
Weight (Gross) 1.30kg
