List Price £926.40 incl. VAT
Inter-M - NC600

Network Converter for 6000 Digital System, DC24V

I.P Connectivity
I.P. Audio
List Price
£926.40
$1,320.91
€1,072.21
incl. VAT
Show prices in GBP
Show prices in USD
Show prices in EUR

Product Description

The N600 is an IP-to-analogue Audio End Point for use as part of the Inter-M IP audio range.

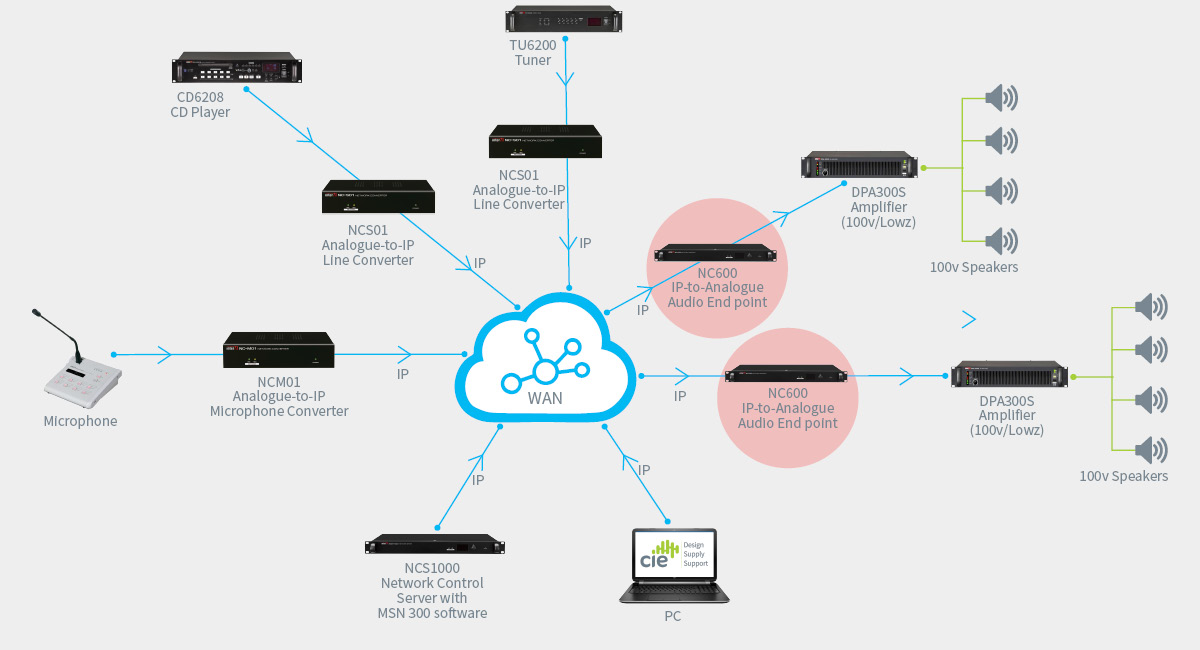

For use in conjunction with the Inter-M NCM01 (Microphone) and NCS01 (Line Source) Converters, the NC600 converts Inter-M IP Audio Signals back to Analogue at the output end of a system for connectivity and integration with a conventional 100v line or low impedance audio system.

Therefore, using a combination of Inter-M NC Series Converters allows conventional analogue devices such as microphones, audio sources (CD,Tuner, MP3 etc), amplifiers, mixers and loudspeakers to be converted to an IP signal for connectivity, distribution and control over a local or wide area network.

Inter-M NC600

Allowing seemless integration with Inter-M's tried and tested 'including standard' public address/background music product range. This easy-adaption Analogue-to-IP system is ideal for connecting existing 100v line distributed sound systems to a network and for PA installers wishing to combine 'bomb proof' analogue technology with the flexibility and versatility of 'over-IP'.

The Inter-M NC600 IP Audio End Point can also be used as a 'Transceiver' device; ie. as well as converting IP signals to analogue for connecting to the system output it can simultaneously convert a local analogue Audio Source device to IP for connectivity to the network.

Specification Sheet

  • Easily integrates with Inter-M's existing range of standard analogue amplifiers, loudspeakers and audio devices
  • High quality music & data distribution
  • PX-6216/ECS-6216P RM Interface via network
  • Contact terminal interface of ECS-6216MS via network
  • Sends/receives Audio (MP3, PCM, RTSP) via network
  • Supports DHCP, STATIC IP (Default setting: STATIC IP, 192.168.1.99)
  • Intuitive central management software interface
  • Supports network redundancy
  • Reduced installation and implementation costs
Description NC600
Audio Input 1 Channel
Audio Output 1 Channel
Input Sensitivity 0dBV
Frequency Response 20Hz ~ 20kHz
THD+N ratio (20kHz LPF, 0dBV, 1kHz) Less than 0.1%
S/N (20kHz LPF, 0dBV, 1kHz) Greater than 80dB
Sampling Frequency 44.1, 48kHz
Contact Closure Output 16 Channel
Serial Communication RS-422
Network Communication 10/100/1000 Base-T (RJ-45)
Operating Temperature 0° ~ +40°
Power Source 24v DC, 550mA
Dimensions 482(W) × 44(H) × 280(D)mm
Weight (Net) 2.84kg
Weight (Gross) 3.69kg
