Axis Communications - C1310-E
All-in-one Network Audio Horn Speaker - white
List Price
£654.66
$0.00
€0.00
incl. VAT
Product Description

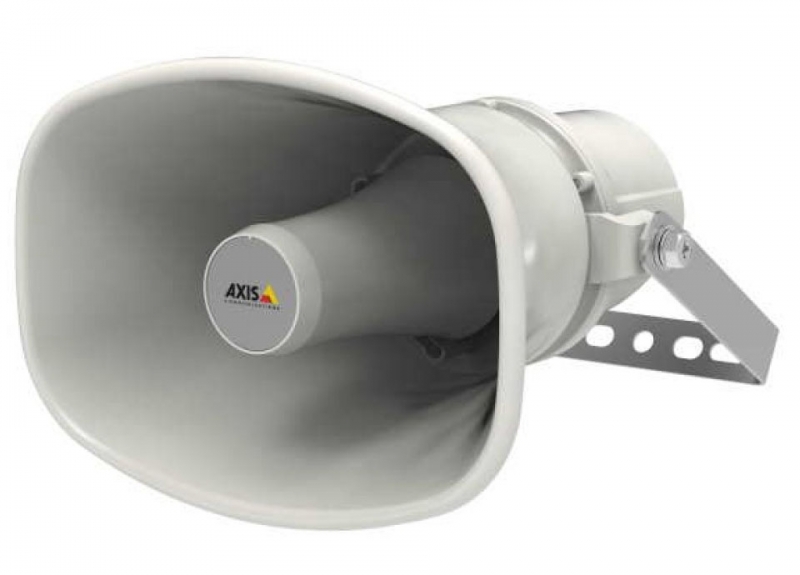

The AXIS C1310-E Network Horn Speaker makes audio smart and easy and opens up a wealth of new possibilities. These audio-over-IP outdoor horn speakers are ideal for announcements, warning systems and live audio support for CCTV/surveillance systems.
Audio made easy
AXIS C1310-E IP Horn Speaker is a complete high-quality audio system in a single unit. There’s no need for an amplifier, mixer, digital signal processor, streaming functionality, microphone or power supply because they're all built-in. And because it’s preconfigured, you don’t have to be a sound expert to set it up. In other words, AXIS C1310-E simply works – right out of the box. Plus, a built-in auto speaker-test function means you can be confident it will keep on working. It connects to your existing IP network and it’s powered over a single Power over Ethernet cable.
Audio made smart
AXIS C1310-E is a network solution which can be combined into a flexible and scalable system - this makes it easy to add /remove speakers in an instant. By creating zones to address a number of speakers simultaneously, it is possible to direct different background music, or live/scheduled announcements, as well as control and change the volume for each unit individually and all together. This means you can send live and pre-recorded messages to the right place, at the right time.
Specification Sheet
- Click to download: Axis 1310E IP Horn Speaker datasheet.pdf
Manual
- Click to download: Axis 1310E IP Horn Speaker Installation Guide.pdf
- Two inputs/outputs
- Feature-packed IP speaker provides an all-in-one audio solution for outdoor applications
- Connects directly to an IP network using PoE for communication and power
- Built-in amplifier enabling high sound pressure exceeding 96 dB for the delivery of clear audio
- All-in-one network speaker system
- Quick installation with just one network cable (PoE)
- Scheduled or live voice announcements
| Description | C1310-E |
|---|---|
| Audio streaming | One-way/two-way, mono |
| Audio input/output | Built - in microphone (can be disabled) |
| Built-in microphone specification | 50Hz - 12kHz |
| Speaker max sound pressure level | >121 dB |
| Frequency response | 280Hz - 12.5kHz |
| Coverage pattern | 70° horizontal by 100° vertical (at 2kHz) |
| Network security | password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log. |
| Supported protocols | IPv4/v6, HTTP, HTTPSb, SIP, SSL/TLSb, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SOCKS, SSH |
| Application programming interface | Open API for software integration, including VAPIX®, AXIS Video Hosting System (AVHS) with One-click Connection, AXIS Camera Application Platform (ACAP). |
| Audio synchronisation | Built-in audio synchronization for up to 50 speakers with unicast and hundreds of speakers with multicast. No additional speaker management software or hardware required. |
| Voice announcement | Up to 50 pre-recorded voice announcements. Voice announcement through built-in SIP support for connection to any IP telephone /VoiP system and VAPIX support. |
| Intelligent audio | Auto Speaker Test |
| Casing | Impact-resistant aluminum, IP66 -, IP67 - and NEMA 4X-rated. |
| Event triggers | Virtual inputs, External input Call: DTMF, State changes, AXIS Camera Application Platform (ACAP) |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 (max. 12.95 W) |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm terminal block for one input and one output |
| Operating conditions | -40°C to 60 °C (-40 °F to 140 °F) Humidity 10-100% RH (condensing) |
| Dimensions (excl bracket) | 164(H) x 225(W) x 305(D) mm |
| Weight (Net) | 1.30kg |
| Weight (Gross) | 2.00kg |
