cie group -
List Price £797.04 incl. VAT
Inter-M - NCS01

Network Converter for Source, 1CH Audio In, RS-232C/422, DC24V

I.P Connectivity
I.P. Audio
List Price
£797.04
$1,052.28
€854.15
incl. VAT
Show prices in GBP
Show prices in USD
Show prices in EUR

Product Description

Part of the Inter-M Analogue-to-IP Audio range, the NCS01 is an Anologue-to-IP line source converter.

The NCS01 allows any conventional analogue source device (such as CD player, tuner, MP3 etc) to be converted to an IP signal and connected to a large scale network audio system.

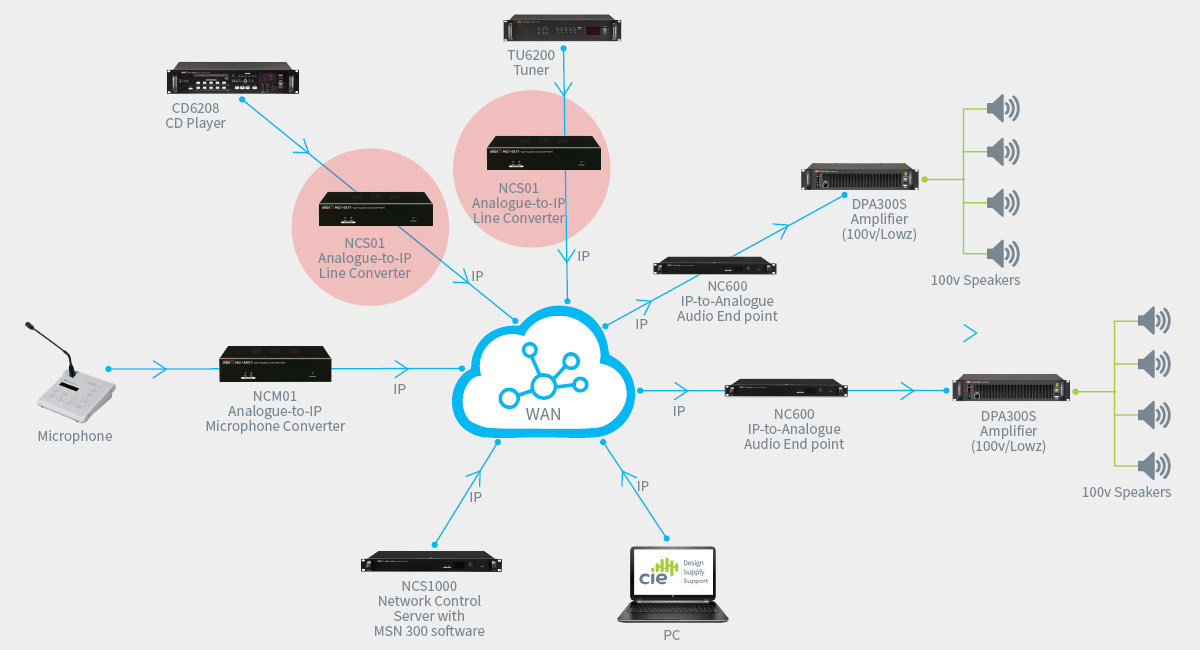

Inter-M Diagram NCS01

In conjunction with the Inter-M NCS1000 Network Control Server and NC600 IP-to-Analogue Audio End Points, standard analogue audio devices including sources and 100v line/ low Z amplifiers & loudspeakers can be fully integrated into a local or wide area network audio system.

NCM01 Analogue-to-IP Microphone Converter - Similar to the NCS01 Source Converter - the NCM01 coverts analogue microphones to connect to the network.

The NCS01 IP Audio Source Transmitter will also transmit and receive data signals over IP, allowing Source devices to be remotely controlled via the Network Server / MSN 300 software.

Specification Sheet

  • Easily integrates with Inter-M's existing range of standard analogue amplifiers, loudspeakers and audio devices
  • High quality music distribution
  • 1U Half Rack Size
  • RS-232C control via network (remote control of source equipment , CD-6208)
  • Audio (MP3, PCM, RTSP) sending via network
  • Supports DHCP, STATIC IP (Default setting: STATIC IP, 192.168.1.99)
  • Intuitive central management software interface
  • Supports network redundancy
  • Reduced installation and implementation costs
Description NCS01
Audio Input 1 Channel
Input Sensitivity CD Input: 6±3dBV RM-6024: 0±3dBV
Frequency Response 20Hz ~ 20kHz
THD+N ratio (20kHz LPF, 0dBV, 1kHz) Less than 0.1%
S/N (20kHz LPF, 0dBV, 1kHz) Greater than 80dB
Sampling Frequency 44.1, 48kHz
Serial Communication RS-232, RS-422
Network Communication 10/100/1000 Base-T (RJ-45)
Operating Temperature 0° ~ +40°
Power Source Input: 24v DC, 800mA / Output: 24v DC, 500mA
Dimensions 210(W) × 44(H) × 180(D)mm
Weight (Net) 1.00kg
Weight (Gross) 1.30kg
