EQ150
560TVL Black & White Camera 240v AC
List Price
£70.70
$106.04
€84.84
incl. VAT
Product Description

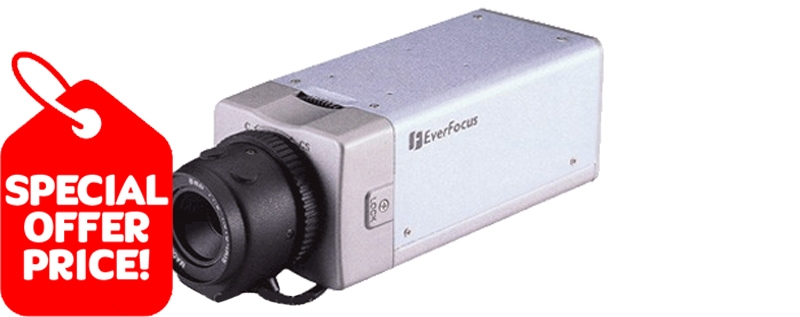

ow cost, high resolution 560TVL Black & White CCTV Body Camera.
- high resolution technology (560 TV lines)
- audio function
- VD / DD switchable lens control
- support of both C-mount and CS-mount lenses
- full range backfocus mechanism
| Description | EQ150 |
|---|---|
| Sensor | 8,5mm (1/3 |
| Picture element | 752 (H) x 582 (V) |
| Horizontal resolution | 560 TV lines |
| Sensitivity | 0,04 lux / F = 1.2 |
| Video output | 1 Vp-p CCIR, BNC |
| S/N ratio | over 48 dB |
| Gamma correction | > 0,45 |
| Audio | microphone output 500 mV max. / 47 kOhm, cinch |
| Back light compensation | on / off switch |
| AGC | on / off switch |
| Synchronisation | line-locked with LL on, internal with LL off |
| Electronic shutter | 1:50 ~ 1:100.000 |
| Lens control | VD / DD switchable (lens not included) |
| Lens mount | C/CS mount, full range backfocus mechanism |
| Power source | EQ 150 A / C: 12 V DC / 24 V AC; EQ150 / C: 90 ~ 260 V AC |
| Power consumption | EQ 150 A / C: 5 W max.; EQ 150 / C: 9 W max. |
| Ambient temperature | 0°C ~ +50°C |
| Dimensions (WxHxD) | 57 x 51 x 140 mm |
| Weight (Net) | 0.60kg |
| Weight (Gross) | 1.00kg |
