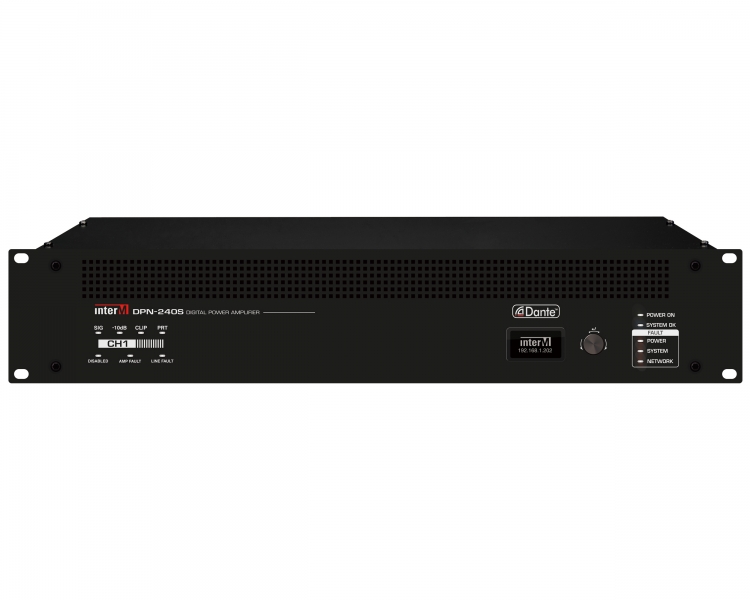

Inter-M - DPN-240S
Digital Amplifier Dante 1 x 240W, EN54-16 for EVA Matrix
Product Description
The Inter-M DPN-240S is a high-performance 1 x 240W RMS Class D network amplifier specifically designed for EN54-16 certified voice alarm systems, integrating seamlessly with the EVAMATRIX platform.
Engineered for mission-critical public address and evacuation applications, it supports 70V/100V constant voltage speaker lines with galvanic isolation to ensure safe, high-fidelity audio delivery.
Built on Dante and AES67 IP networking, the DPN-240S offers full audio and control redundancy via dual RJ45 ports and enables advanced DSP-based zone control, including EQ and volume adjustments via the EVAMATRIX web interface. It also features a dynamic backup amplifier input, dual A/B speaker outputs, and dry contact and UGA inputs for local alarm triggering and third-party integration.
All signal paths and faults are fully supervised with SNMP V2c monitoring, while robust cybersecurity includes HTTPS, TLS1.2, AES-256, and ECC encryption. With ultra-low THD (<0.45%), >91dB signal-to-noise ratio, and 20Hz–20kHz bandwidth, the DPN-240S ensures professional-grade audio.
The compact 1U rackmount unit includes OLED display, local audio input, and visual/audio fault indication, making it ideal for decentralised voice alarm deployments.
Specification Sheet
- Click to download: DPN-SERIE-INTER-M.pdf
- Click to download: EVA-MATRIX-INTERM-Brochure.pdf
- 1 × 240W RMS output at 70V/100V with galvanic isolation (Class D)
- Fully EN54-16 certified for voice alarm system compliance
- Integrated Dante and AES67 audio-over-IP networking with dual Ethernet ports
- Dynamic DSP control via EVAMATRIX (EQ, levels, zone tuning)
- Dual A/B supervised speaker line outputs per channel
- Backup amplifier input with automatic switchover
- SNMP V2c, HTTPS, TLS1.2, SHA256, AES-256, ECC encryption
- OLED screen with rotary control for local status and configuration
- Multiple monitored dry contacts and UGA inputs for alarms/faults
| Description | DPN-240S |
|---|---|
| Rated Power | 240W x 1CH |
| Output Voltage/Impedance | 100V/41.66Ω |
| Input Sensitivity | 5dBV |
| THD(Rated Power, 1kHz) | Less than 1% |
| S/N(20kHz LPF, A-wtd) | More than 85dB |
| Frequency Response (±3dB, 1W) | 20~20kHz |
| Network | Dante redundant, Ethernet 100/1000 Base-T (RJ-45) |
| Operating Temperature | -10℃~40℃ |
| Power Source | AC 220-240V, 50/60Hz, DC 24V |
| Power Consumption | 135W |
| Dimensions | 482(W) x 88(H) x 450(D)mm |
| Weight (Net) | 8.59kg |
| Weight (Gross) | 10.50kg |
