Inter-M - EVAMATRIX
EVA Matrix Dante PA/VA Controller - EN54-16
Product Description
Inter‑M’s EVAMATRIX Voice Alarm Controller is a high‑performance, fully EN 54‑16 certified voice evacuation (VA) and public address (PA) matrix system developed in collaboration with MAJORCOM.
Designed for both centralized and decentralized deployments, EVAMATRIX supports 640 audio sources, 1 024 zones, and 2 048 loudspeaker lines, making it ideal for large, complex installations.
The system features Dante network streaming with redundant Gigabit Ethernet, integrated AES‑256 encryption, and multi‑protocol security (HTTPS/TLS1.2/SHA‑256/SSL/ECC) to ensure safe, resilient audio transmission.

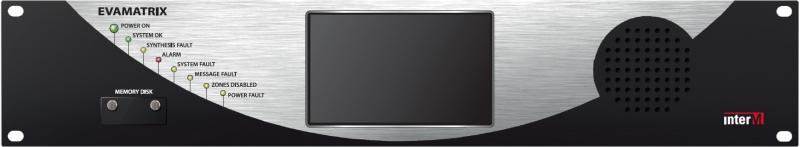

Its built‑in DSP engine delivers precision audio routing and mixing, while front‑panel MP3 playback and dual‑drive storage enable supervised alarm and alert messaging. EVAMATRIX includes a 5″ capacitive touchscreen and intuitive multiplatform web‑based interface, enabling remote control via browser - PC, tablet or smartphone - with no client software required.
A multilingual, multi‑channel text‑to‑speech scheduler automates announcements by calendar (daily/weekly/yearly/vacation), and the innovative Bird’s‑Eye View feature lets users overlay zone plans for customised visual control.
EVAMATRIX also integrates SNMP V2c monitoring, internal event logging, NTP clock with DST support, and up to 128 networked RM‑VA1000 PTT mic stations for paging and emergency use.
Specification Sheet
- Click to download: EVA-MATRIX-INTERM-Brochure.pdf
- EN 54‑16 certified integrated VA and PA system supporting VA compliance and public address flexibility
- Matrix capacity: 640 sources × 1 024 zones × 2 048 speaker lines (A & B buses)
- Redundant Dante‑based audio-over-IP with primary/secondary Gigabit Ethernet ports
- Advanced DSP processing (48 kHz, 32‑bit converters, ~294 MIPS) with gain control per channel
- Supervised secure alarm/alert message storage on dual drives plus front‑panel MP3 playback
- Multilingual, multi‑channel Text‑to‑Speech scheduler with calendar automation (daily/weekly/yearly)
- 5″ capacitive touchscreen front panel and browser‑based HTML5 GUI for multi‑platform remote control (PC/Mac/tablet/phone)
- Robust security protocols: AES‑256, TLS 1.2, SHA‑256, SSL, ECC encryption and SNMP V2c monitoring
- System scalability: supports up to 128 RM‑VA1000 networked PTT microphone consoles plus rich input/output including UGA, dry contacts, remote message triggers
| Description | EVAMATRIX |
|---|---|
| Power Voltage | 100-230VAC, 50-60Hz / 24VDC |
| Frequency response | |
| THD | |
| S/N ratio | >85dB |
| Audio specification | |

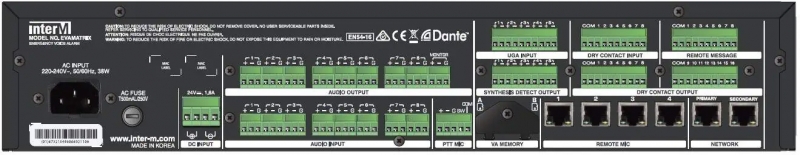

| Inputs | MIC / LINE (1 ~ 8, Euro 3pin) |
| Outputs | AUDIO OUT (1 ~ 8), Monitor |
| PC Link | RJ45 connector, TCP/IP Protocol |
| Extension Link | Input and Output, RJ-45 connector (Dante), Cat. 5 cable (Maximum distance : 100m) |
| Security Input | UGA Inputs 1 ~ 5: Triggered by voltage Dry Contact Inputs 1 to 8: Triggered by Dry Contact NO/NC |
| Synthesis default Output | Synthesis detect outputs SD 1 ~ 5 : Relay Output |
| Output to other devices | Dry Contact Outputs (1 ~ 16) : Relay Output |
| Operating Temperature | -10℃ ~ +40℃ |
| Dimensions | 483(W) x 88(H) x 279(D) mm |
| Weight (Net) | 4.50kg |
| Weight (Gross) | 5.20kg |
