Inter-M - RM-VA1000
EVA System Remote Microphone Station for EN54 Voice Alarm
Product Description

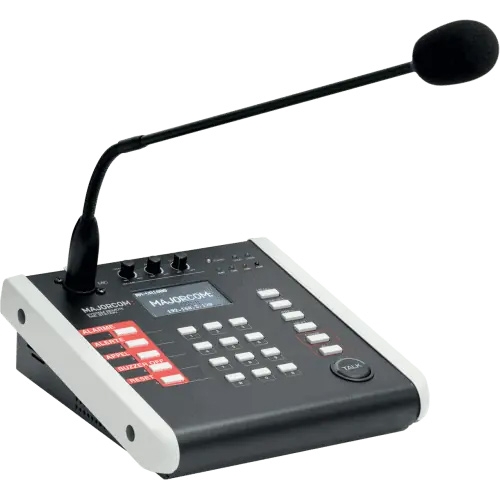

Inter‑M’s RM‑VA1000 EVA System Remote Microphone Station is a compact, EN 54‑16 certified call station engineered for seamless integration with the EVAMATRIX Voice Alarm and Public Address platform.
Fully compliant with life‑safety standards, RM‑VA1000 supports both Voice Alarm (VA) mode for emergency evacuation and Public Address (PA) mode, with simple configuration via included kit components. This IP‑based station connects over shielded Cat5e/Cat6 cable with PoE‑style 24 VDC power input (or 230 VAC adapter in PA mode).
Featuring a 2.3‑inch OLED screen and intuitive navigation keys, RM‑VA1000 provides clear operator feedback during alarms, pre‑recorded ALARM/ALERT calls, and general paging. It includes a built‑in monitor speaker with volume control, and an AUX line input (comfort mode only) for stereo external audio sources, streamable over Dante‑based network zones .
RM‑VA1000 enables up to 128 networked microphone consoles in a single EVAMATRIX configuration, with a maximum of 4 units designated specifically for VA operation.
Designed for reliability, it features average repair time (MTTR) under 20 minutes and mean time to failure (MTTF) over 100,000 hours.
Network security and system health monitoring are assured via HTTPS, TLS 1.2, SHA‑256, SSL, AES‑256 and elliptic-curve cryptography, fully integrated with EVAMATRIX’s SNMP V2c fault reporting.
Specification Sheet
- Click to download: EVA-MATRIX-INTERM-Brochure.pdf
- Click to download: RM-VA1000-INTER-M-25052022.2.pdf
- EN 54‑16 certified call station for emergency Voice Alarm applications
- Dual‑mode VA/PA operation with VA kit configuration for life‑safety deployment

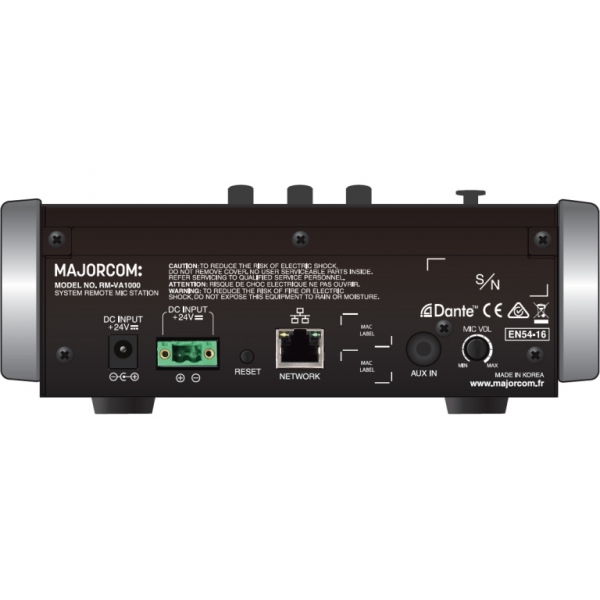

- IP‑based Dante networking over shielded Cat5e/Cat6 cabling, powered via 24 VDC or PoE‑style

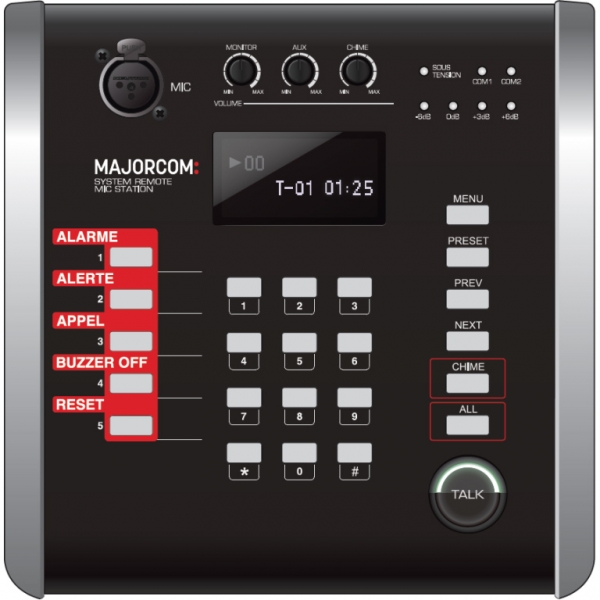

- 2.3″ OLED display with navigation keys for clear operator guidance during paging or alarm activation
- Integrated monitor speaker and adjustable local volume control
- Mono AUX‑line input (comfort mode only), selectable into any network zone via EVAMATRIX routing
- Supports up to 128 microphone consoles on the EVAMATRIX system, with 4 configurable as VA consoles
- High reliability: mean time to failure > 100 000 hours; mean repair time
- Full EN54‑compliant monitoring of call, fault, and operational status via SNMP V2c integration
- Robust encryption and network security protocols: HTTP/S, TLS 1.2, SHA‑256, SSL, AES‑256, ECC for secure VA communications
| Description | RM-VA1000 |
|---|---|
| Power supply | 24VDC |
| Consumption | Max. 10W |
| Frequency response | 100Hz - 18kHz à -3dB @ 1kHz |
| Signal to Noise Ratio | > 65dB |
| Ethernet (LAN) | RJ45, TCP/IP protocol 100/1000 Base-T |
| LAN Extension | Output to EVAMATRIX on RJ45 (Dante®) - Input from EVAMATRIX on RJ45 (Dante®) CAT5 cable Maximum distance: 100m |
| Dimensions | 200(W) x 73(H) x 206(D) mm |
| Weight (Net) | 1.29kg |
| Weight (Gross) | 1.40kg |
