CYP - PUV-C3050TX-UA

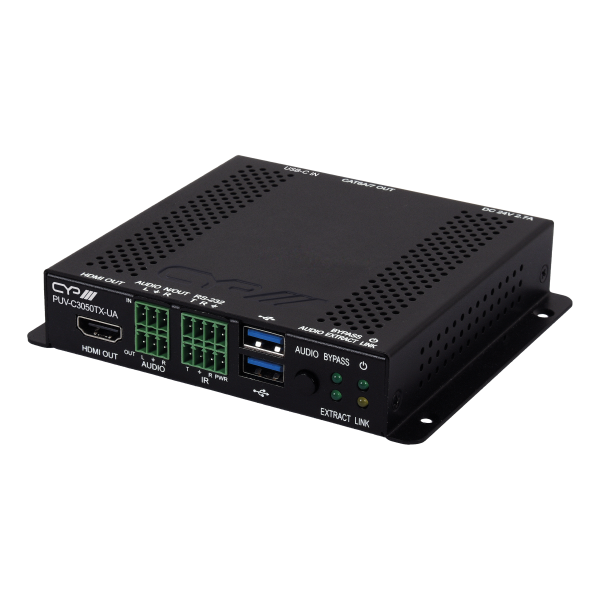

HDBaseT 3.0 4K USB-C Transmitter with USB, PoH, Audio Pathway & HDMI Bypass
Product Description
The CYP PUV-C3050TX-UA is a premium-grade USB-C HDBaseT 3.0 transmitter designed to deliver uncompressed 4K UHD+ (4K@60Hz 4:4:4) video, multichannel audio, control signals, and USB functionality over a single Cat.6A/7 cable. With integrated HDMI bypass, USB KVM, PoH, and selectable analogue audio pathways, this device is engineered to streamline complex AV setups and reduce cabling for professional environments.
Ideal for boardrooms, lecture theatres, medical imaging applications, and control centres, the PUV-C3050TX-UA enables high-performance transmission without compromise.
The PUV-C3050TX-UA connects directly to a USB-C source device (e.g. laptop, tablet, media player) and transmits video, audio, USB keyboard/mouse control, IR, and RS-232 signals to a compatible HDBaseT receiver up to 40m away. It also includes a local HDMI output for on-site monitoring and supports PoH (Power over HDBaseT) to power the receiver remotely — reducing the need for extra power supplies and simplifying installation.
Key Features
- True 4K UHD+ Distribution via HDBaseT™ 3.0
- All-in-One USB-C Input with KVM
- Integrated Audio Pathway Options
Applications
- Corporate meeting rooms - USB-C input allows for simple laptop connectivity with local HDMI monitoring and extended AV distribution.
- Higher education - Supports KVM functionality for interactive teaching displays and lecture capture.
- Medical & healthcare - Enables latency-free 4K transmission for surgical theatre displays or diagnostic monitors.
- Hospitality & retail - Perfect for premium AV distribution across multiple zones with minimal cabling.
Manual
- Click to download: PUV-C3050TX-UA_PDF-Manual_RDV1.pdf
- Full 4K UHD+ Transmission
- Dual Audio Modes
- All-in-One USB-C Input
- Integrated USB KVM Support
- HDMI Local Output with PoH
| Description | PUV-C3050TX-UA |
|---|---|
| HDMI Bandwidth | 18Gbps |
| USB-C Bandwidth | 32.40Gbps (DisplayPort 1.4a compliant) |
| HDBaseT Bandwidth | 16Gbps |

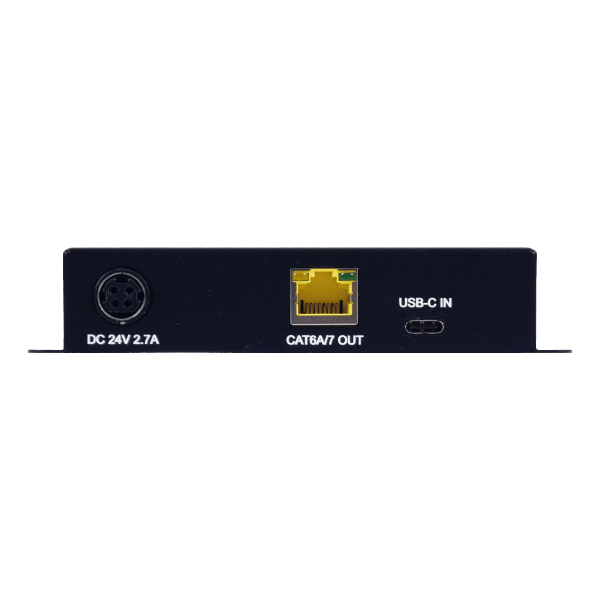

| Input Ports | 1×USB 3.0 (Type-C) |
| - | 1×Analog Stereo (3-pin Terminal Block) |

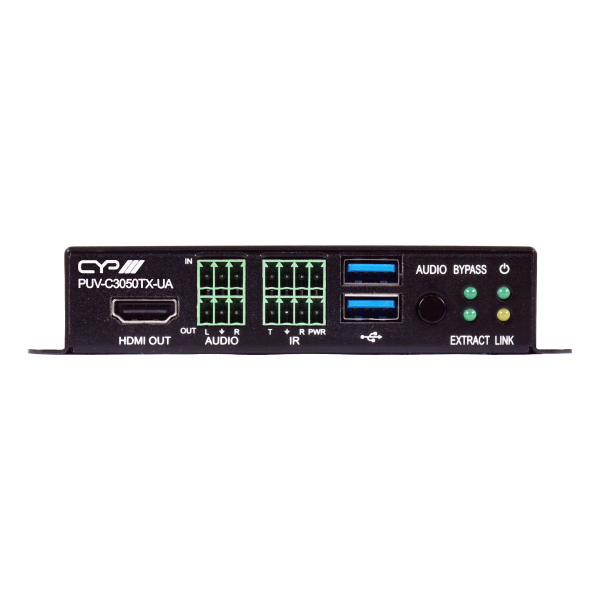

| Output Ports | 1×HDMI (Type-A) |
| - | 1×HDBaseT (RJ-45) |
| - | 1×Analog Stereo (3-pin Terminal Block) |
| Pass-through Ports | 1×IR In/Out (4-pin Terminal Block) |
| - | 1×RS-232 (4-pin Terminal Block) |
| - | 2×USB 2.0 (Type-A) |
| IR Frequency | 30 ~ 50kHz |
| - | (30 ~ 60kHz under ideal conditions) |
| Baud Rate | Up to 115200 |
| Power Supply | 24V/2.7A DC (US/EU standards, CE/FCC/UL certified) |
| Dimensions | 128(W)×25(H)×108(D) mm |
| Weight (Net) | 0.40kg |
| Weight (Gross) | 0.50kg |
