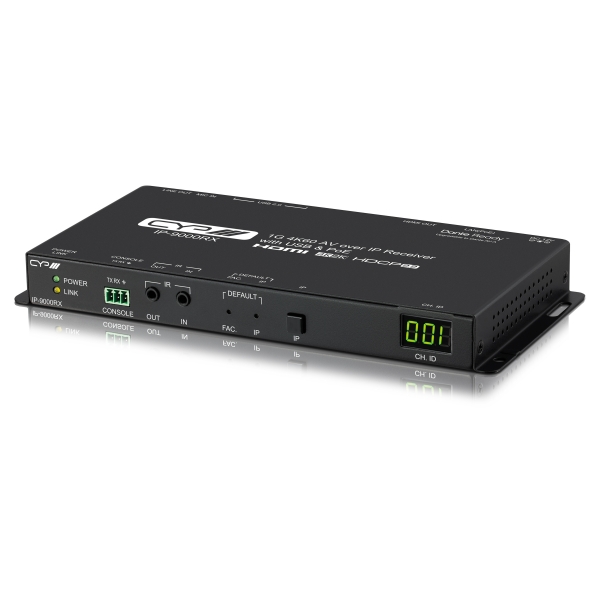

The CYP IP-9000RX is a high-performance 1G AV-over-IP Receiver designed for scalable, distributed AV systems. Supporting stunning 4K60 4:4:4 video with HDR10, Dolby Vision, and HLG, the IP-9000RX offers seamless streaming over IP networks with near-zero latency. It is ideal for both point-to-point and complex multi-display video wall configurations using Unicast or Multicast modes.
Engineered with professional-grade flexibility, it includes USB 2.0 support for KVM functionality, bi-directional IR and RS-232 pass-through, and a microphone input for added audio options. The receiver is PoE-powered and easily managed via WebGUI, hotkeys, Telnet, or the optional IP-CS9000 Master Controller. Optional Dante Ready integration provides expanded audio-over-IP capabilities.
4K HDR-Over-IP with Near-Zero Latency:
Experience full 4K60 4:4:4 resolution with support for HDR10, Dolby Vision, and HLG. Optimised for high-bandwidth streaming over Gigabit Ethernet with less than one frame of latency.
Integrated USB & KVM Control:
USB 2.0 ports enable seamless control of connected PCs or devices across a network, including keyboard, mouse, webcams, and flash drives—ideal for remote workspace and digital signage control.
Scalable Video Wall & Matrix Management:
Supports multicast AV distribution and video wall creation, with centralised configuration via WebGUI or CYP's IP Master Controller for large-scale AV installations.
Corporate boardrooms & meeting spaces
University campuses & lecture halls
Retail signage & digital advertising
Hospitality AV systems
Government and control rooms
Medical imaging & diagnostics
Event venues & auditoriums
Broadcasting and production studios
Description | IP-9000RX |
---|---|
Video Resolution Support | Up to 4096×2160p@60Hz |
Video Interface | HDMI 2.0 with HDCP 2.2 compliance |
USB | 3x USB 2.0 (Type-A) for HID and mass storage |
PoE Standard | IEEE 802.3af compliant |
Audio Output | Analogue Stereo (LPCM 2.0) |
Audio Input | Mono Mic In (3.5mm) |
Audio Compatibility | 8-channel LPCM & standard Bitstream |
Control Ports | RS-232 (3-pin), IR in/out |
Latency | < 1 frame at 4K60 |
Mounting | Rack-mountable or standalone |
Chassis Material | Metal |
Chassis Colour | Black |
Operating Temp | 0C to 50C |
Storage Temp | -20C to 60C |
Network | Gigabit Ethernet with IGMP Snooping support |
Power Supply | 12V/3A DC or PoE |
Power Consumption | Max 17.68W |
Dimensions | 231.5mm x 25mm x 120mm |
Firmware/Control | WebGUI, Telnet, Hotkeys, IP Master Controller |
Weight (Net) | 0.66kg |
Weight (Gross) | 0.85kg |
