Advanced Multi-format 4K Presentation Switch with HDBaseT inputs, Audio/Mic I/O & a built-in audio amplifier

The CYP EL-8500VA HDMI Switcher offer unparalleled multi-format scaling presentation switcher designed to transform your complex AV setups into effortlessly controlled, visually stunning experiences.

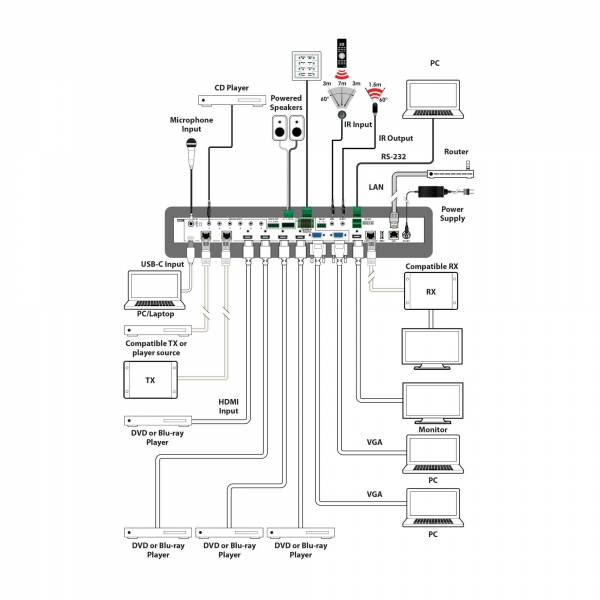

The EL-8500VA is more than just a switcher; it's the central hub for all your diverse media sources, capable of intelligently scaling and routing them to deliver optimal performance on any display. Whether you're integrating legacy equipment or embracing the latest 4K technologies, the EL-8500VA ensures every pixel and every note is delivered with pristine clarity.

Key Features & Benefits:

• Universal Connectivity, Uncompromised Quality:

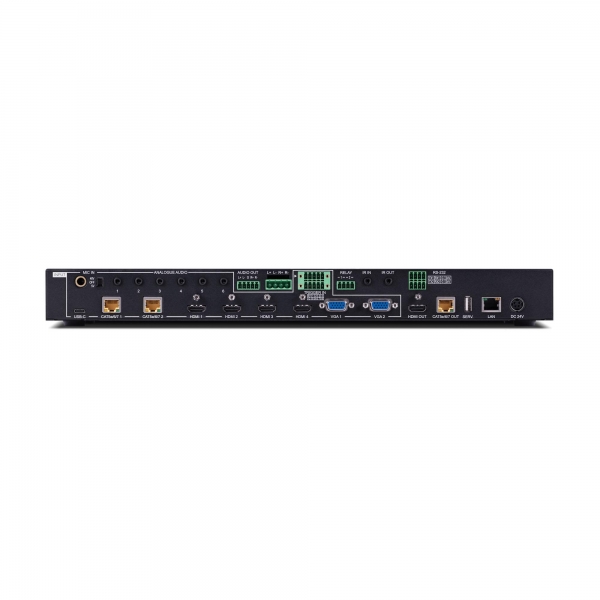

The EL-8500VA boasts an impressive array of inputs, including 4 x HDMI, 2 x HDBaseT, 2 x VGA, and 1 x USB-C ensuring compatibility with virtually any source device. Experience stunning visuals with support for 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) on HDMI and USB-C inputs, providing breathtaking detail and vibrant colours for your content.

• Intelligent Scaling for Flawless Display:

No more worrying about resolution mismatches. The EL-8500VA features advanced scaling capabilities allowing you to output a scaled resolution of your choice over mirrored HDMI and HDBaseT outputs. This guarantees your content always looks its best, regardless of the display's native resolution.

• Extended Reach with HDBaseT:

Deliver video and audio over long distances with integrated HDBaseT outputs. Transmit 4K signals up to 70 meters and 1080p signals up to 100 meters over a single Cat. 5e/6/7 cable, dramatically simplifying installations and reducing cable clutter. Plus, with 48V PoH (Power over HDBaseT) compatible receivers can be powered directly from the EL-8500VA, streamlining your setup even further.

• Integrated Audio Powerhouse:


Beyond video, the EL-8500VA offers comprehensive audio management. An amplified analogue stereo output complements multiple analogue stereo audio inputs and a dedicated microphone input. The built-in audio mixer function empowers you to seamlessly blend audio from any analogue input with the microphone, perfect for lectures, presentations or conferencing.

• Seamless Control & Flexibility:

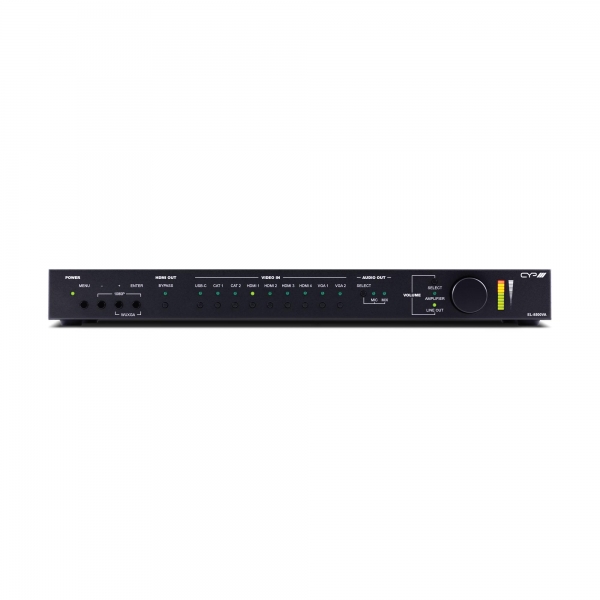

Control is at your fingertips with a variety of options. Operate the EL-8500VA via convenient front panel buttons with On-Screen Display (OSD), a user-friendly WebGUI, IR remote, Telnet and RS-232. An optional trigger control keypad further simplifies operations, enabling single-button activation of key functions.

• Robust & Reliable Performance:


Built for demanding environments, the EL-8500VA features comprehensive EDID and HDCP 2.2 management, ensuring stable and secure content delivery. Firmware updates are easily managed via USB, keeping your system future-proof.

Where the EL-8500VA excels:

The CYP EL-8500VA is an indispensable tool for any organisation or space requiring a versatile, high-performance AV switching and scaling solution. Its comprehensive feature set makes it ideal for:

• Corporate Boardrooms & Meeting Rooms
• Educational Institutions (Lecture Halls & Classrooms)
• Conference Centres & Event Spaces
• Houses of Worship
• Showrooms & Retail Environments
• Training Facilities

• Click to download: EL-8500VA_PDF-Manual_v1.00.pdf
