Akuvox - S562W-2

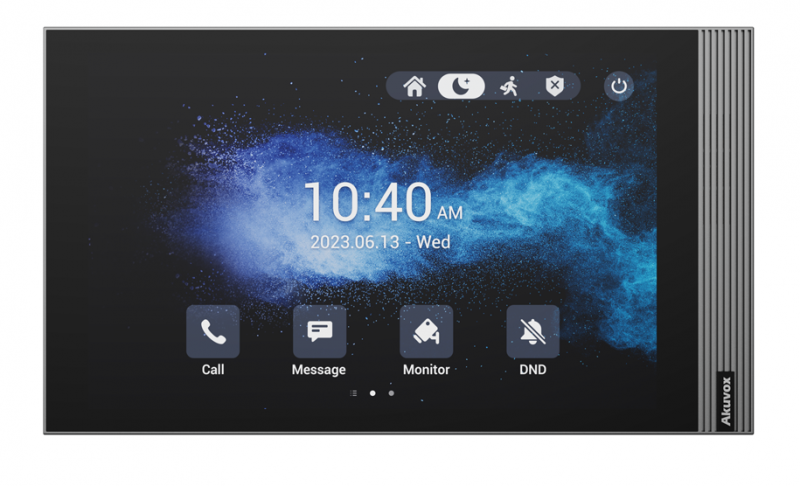

7" 2 Wire IP Touchscreen Answering Panel with WiFi, Linux
Product Description
The Akuvox S562W-2 2-Wire Indoor Monitor is engineered to deliver a high-performance video intercom experience while dramatically simplifying installation in both new and retrofit projects. Featuring a vibrant 7-inch IPS capacitive touchscreen, the unit provides clear visual feedback, intuitive user interaction, and a premium look suitable for residential and commercial environments.
Powered by a stable Linux operating system, the S562W-2 ensures dependable operation and seamless SIP 2.0 compatibility, allowing straightforward integration with SIP-based PBXs and IP intercom platforms. Two-way audio and video communication across the 2-wire IP network enables installers to reuse existing cabling, significantly reducing time and costs while supporting extended transmission distances.
Applications
- Residential apartment buildings
- Multi-tenant housing developments
- Commercial offices and business parks
- Student accommodation and campuses
- Healthcare and assisted living facilities
Specification Sheet
- Click to download: Akuvox S562W-2 Datasheet.pdf
- 7 inch IPS capacitive touchscreen with energy-saving mode
- 2-wire IP connectivity with extended transmission distance
- Linux operating system for stable, secure performance
- Integrated Wi-Fi 6 (802.11ax) at 2.4GHz for improved wireless stability
- SIP 2.0 compliant for easy integration with IP PBX systems
| Description | S562W-2 |
|---|---|
| Display | 7 Inch IPS LCD |
| RAM / ROM | 128MB / 128MB |
| Wi-Fi | IEEE802.11 b/g/n/ax, @2.4GHz |
| RS485 Port | 1 |
| Relay Out | 1 |
| Microphone | -42dB |
| Speaker | 4Ω / 2W |
| 2-Wire Port | 2 |
| Ethernet Port | 1xRJ45, 10/100Mbps |
| Installation | Wall-mounted |
| Working Temperature | -10°C ~ +45°C |
| Dimension (H) x (W) x (D) | 118.8 x 216.4 x 21.7mm |
| Weight (Net) | 0.60kg |
| Weight (Gross) | 0.90kg |
