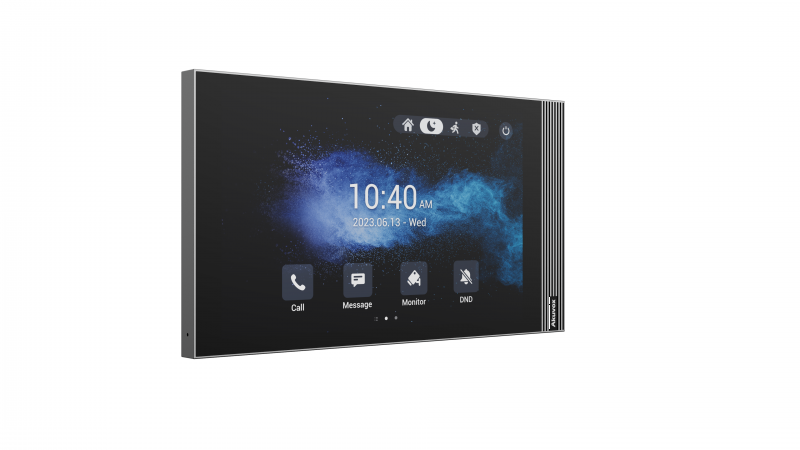

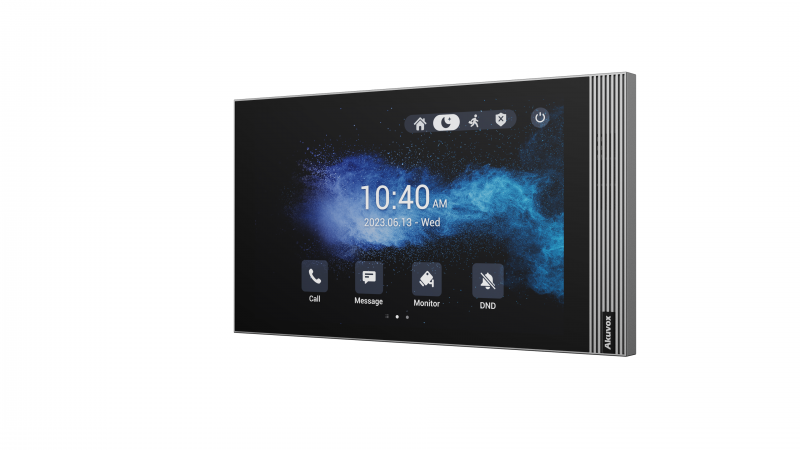

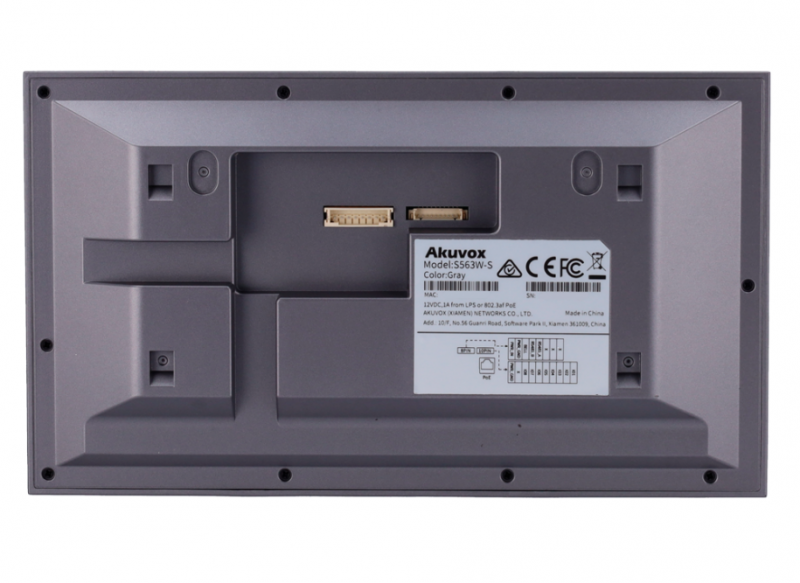

S563W-S - 8" Surface-Mounted SIP Indoor Monitor
Click on images to enlarge
S563W-S - 8" Surface-Mounted SIP Indoor Monitor
S563W-S - 8" Surface-Mounted SIP Indoor Monitor
S563W-S - 8" Surface-Mounted SIP Indoor Monitor
S563W-S - 8" Surface-Mounted SIP Indoor Monitor
Recently Viewed
Akuvox - S563W-S

8" Surface-Mounted SIP Indoor Monitor

Product Description

The Akuvox S563W-S Surface-Mounted Indoor Monitor is a high-performance SIP video intercom solution designed for modern residential and commercial environments.

Built on Android 12, it provides a flexible, future-ready platform for IP intercom, door entry, and smart building applications. The 8" IPS capacitive touchscreen offers a sharp 1280×800 resolution, ensuring intuitive operation and excellent visibility from wide viewing angles.

Designed for installers and integrators, the S563W-S supports PoE or 12V DC, dual Ethernet, Wi-Fi, Bluetooth, RS485, alarm inputs, relay output, and full SIP PBX compatibility.

The key advantage is its surface-mounted design, making it an ideal choice for retrofits or projects where cutting into walls isn’t an option. If you’re looking for a straightforward way to add a polished indoor answering point with minimal disruption, this monitor is a natural fit.

Applications

  • Residential apartment blocks and multi-dwelling units

  • Luxury villas and smart homes

  • Student accommodation and managed housing

  • Commercial offices with IP access control

  • Mixed-use and modern smart building developments

Specification Sheet

  • 8 inch IPS capacitive touchscreen with 1280×800 resolution
  • Voice changer and privacy-focused voice assistant features
  • Android 12 operating system for enhanced flexibility
  • SIP-based two-way audio with G.722 wideband support
  • PoE (802.3af) or 12V DC powered installation
Description S563W-S
RAM / ROM 2GB / 8GB
Display 8 Inch IPS LCD
Screen 8 Inch capacitive touch screen
Wi-Fi IEEE802.11 b/g/n
Bluetooth 4.2
RS485 Port Support
Relays Out 1
Microphone one microphone,-26dB
Speaker one speaker, 4Ω/2W
Installation Wall-mounted
Working Temperature -10°C~ +45°C
Tamper Resistant Support
Dimension (H) x (W) x (D) 124.4 x 216.2 x 21.7mm
Weight (Net) 0.85kg
Weight (Gross) 1.10kg
