Akuvox - S535

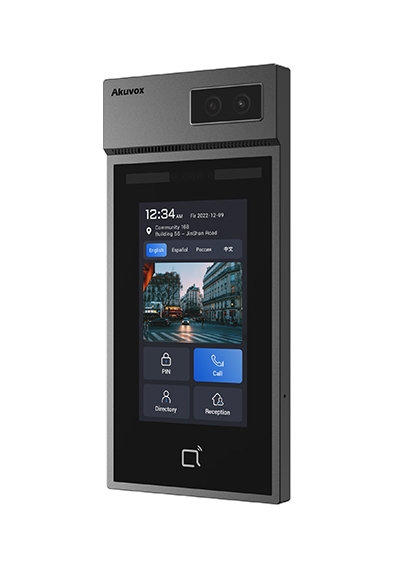

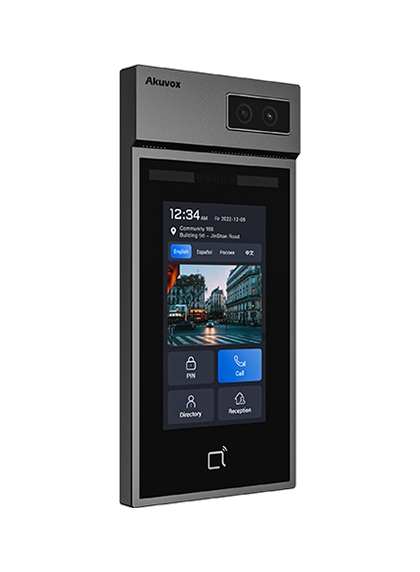

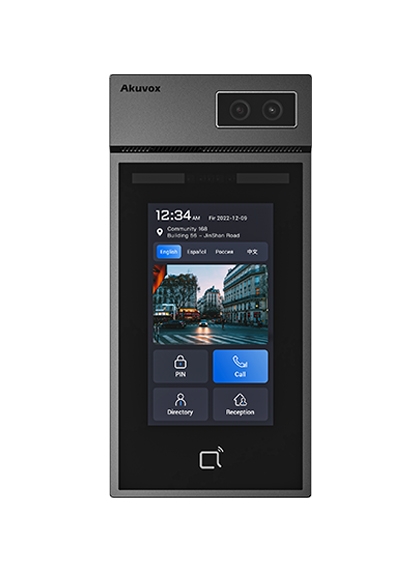

IP 5" Touchscreen Smart Door Intercom with Face Recognition, QR Code, NFC, PIN Code, RFID, BLE
Product Description
The Akuvox S535 premium IP video door intercom is designed for modern smart buildings, offering secure, convenient, and versatile access control for residents, staff, and visitors. With its sleek aluminum body, 5-inch IPS touchscreen, and advanced authentication options, the S535 delivers both cutting-edge functionality and robust durability.
- 5" IPS Touchscreen – Bright, intuitive interface for seamless user interaction.
- High-Definition Video – Wide-angle 2MP camera (116° H / 62° V) with HDR, auto-lighting, and night vision for crystal-clear visitor identification.
- Multi-Authentication Access – Supports face recognition, RFID/NFC/125kHz cards, PIN codes, Bluetooth (BLE), and QR code scanning.
- Future-Ready Expansion – Optional LTE, fingerprint reader, or induction loop modules for enhanced accessibility.
- Durability Assured – Built with an aluminum front panel, IP66 weatherproof and IK08 vandal-resistant for reliable outdoor use.
- Flexible Installation – Flush or surface-mounting options to suit any building entrance.
- Integration & Compatibility – Fully compliant with SIP and ONVIF, ensuring smooth integration with third-party IP intercom, access control, and video management systems.
- Power & Connectivity – PoE (802.3at) or 12V DC powered, with built-in tamper alarm, Ethernet (RJ45), Wiegand and RS485 support.
The Akuvox S535 is perfectly suited for:
- Apartment complexes & condominiums
- Office buildings & corporate campuses
- Gated residential communities
- Industrial & commercial facilities
Specification Sheet
- Click to download: Akuvox S535 Datasheet (1).pdf
- Aluminum panel with 5inch touchscreen
- Linux operation system
- Wide-angle camera: 116º (H), 62º (V)
- Two-way audio communication over IP networks with Echo Cancel feature
- Multi-way access feature including: Face, Card, PIN, BLE & QR code
- Support expandable module: LTE or Fingerprint or Induction Loop
- Flush-mounted & surface-mounted
- Complies with SIP & ONVIF
| Description | S535 |
|---|---|
| Front Panel: | Aluminum |
| Main Camera: | 2M pixels, auto-lighting |
| Ethernet Port: | 1xRJ45, 10/100Mbps adaptive |
| Power supply: | DC 12V / 4A（max.） |
| Display: | 5 Inch IPS LCD |
| RF Card Reader: | 13.56MHz, 125kHz & NFC |
| Installation: | Flush-mounted & Wall-mounted |
| IP Rating: | IP66 |
| IK Rating: | IK08 |
| Pixels: | CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video resolution: | up to 1920x1080 |
| Viewing Angle: | 110°(H) / 62°(V) |
| Video Codec: | H.264 |
| Video Technology: | HDR |
| Max. image transfer rate: | |
| Protocols support: | IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Working Temperature: | -40°C ~ +55°C |
| Storage Temperature: | -40°C ~ +70°C |
| Working Humidity: | 10~90% |
| Size: | 210x100x27mm |
