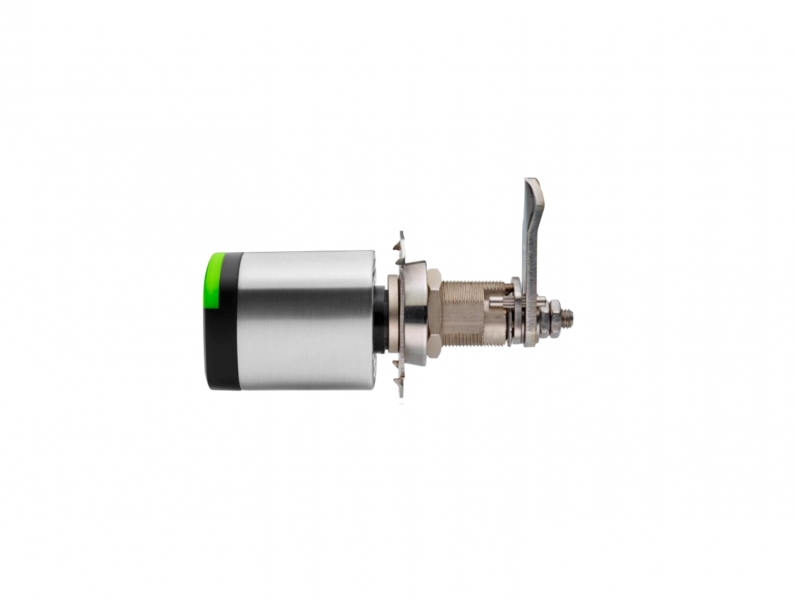

Salto - NEO-CAMLOCK
Electronic Cylinder for Lockers & Cabinets
Product Description
The SALTO Neo Cam Lock Cylinder is a compact electronic locking solution designed to retrofit into standard cam lock applications. Ideal for securing lockers, cabinets, enclosures, and drawers, it supports SALTO’s robust access control ecosystem via wireless communication, encrypted credentials, and cloud/on-premise platforms.
The patented locking mechanism directly rotates the cam between 90° and 180°, activated via user credential. With a high-security blocking system, optional acoustic/visual alerts, and anti-drilling resistance, it delivers both flexibility and peace of mind in securing sensitive or high-traffic storage areas.
Key benefits include:
-
Secure, Wireless-Ready Locking: Fully compatible with SALTO Space, KS, and Homelok platforms, with support for SVN and BLUEnet networks.
-
Flexible Fit: Easily mounts on metal or wood doors with support for door thickness from 1mm to 22mm. Includes security collars, washer kits, and two cam lengths (28mm and 40mm).
-
Long-Life, Easy Maintenance: External battery replacement (SP01926-5 LR1), no cylinder removal needed, and IP66-rated for indoor or outdoor use.
Use cases include:
-
Gym or staff lockers
-
IT/comm cabinets and drawers
-
Key safes and storage lockers
-
Medical supply enclosures
-
Retail and service drawers
Specification Sheet
- Click to download: SaltoNeo-CamLockCylinder_Datasheet_en.pdf
Manual
- Click to download: Cam Lock Cylinder.pdf
- Fits standard cam lock mounting (19 mm bore), with 28 mm & 40 mm cam lengths
- SALTO SVN & BLUEnet wireless‑ready; encrypted via Bluetooth LE & NFC
- Dual‑colour light ring and optional acoustic feedback
- External battery replacement (LR1) without removing cylinder
- IP66 rated, anti‑drill protection, emergency override via PPD
| Description | NEO-CAMLOCK |
|---|---|
| Lock Type | Electronic cam lock cylinder |
| Cam Arms | 28 mm and 40 mm included |
| Body Diameter | 19 mm |
| Door Thickness | |
| Mounting Kit | Security collar, washers, spacers, torque nut |
| Indicator | Light ring (green/red); optional acoustic signal |
| Credentials Supported | MIFARE, HID, Bluetooth LE, NFC |
| Platforms Supported | Salto Space, Salto KS, Homelok |
| Wireless | SVN, BLUEnet, BLE, NFC |
| Override Method | Portable Programming Device (PPD) |
| Battery | LR1 external, user‑replaceable |
| Battery Change | No need to remove housing |
| Security | Anti‑drill body, optional fixed knob conversion |
| Ingress Protection | IP66 |
| Operating Temp | 0 C to 50 C |
| Certifications | CE, FCC, EN 15684, IEC 60529 |
| Panic Function | Supported on select models |
| Audit Memory | Stores user events and system logs |
| Installation | Includes mounting hardware and torque guidance |
| Weight (Net) | 0.25kg |
| Weight (Gross) | 0.40kg |
