Farpointe Data - CSR-6.2L

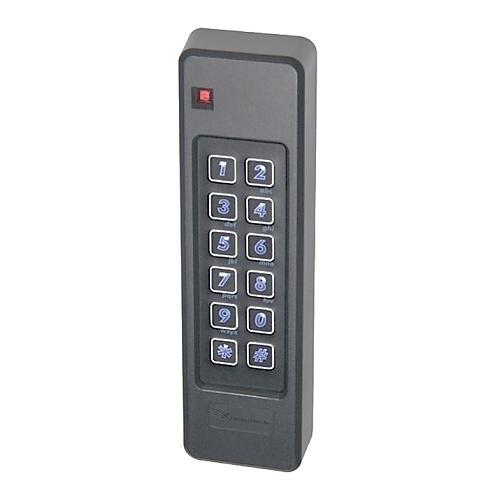

CSR-6.2L Mobile-ready mullion-mount contactless smartcard reader and keypad
Product Description
The Farpointe Data CSR-6.2L CONEKT mobile-ready contactless smartcard reader and keypad offers a cutting-edge access control solution, seamlessly integrating traditional contactless smartcard technology with the convenience of smartphone mobile credentials via Bluetooth Low Energy (BLE). Operating at both 13.56 MHz and 2.4 GHz frequencies, this mullion-mount reader provides secure and versatile access for doors, parking facilities, and turnstiles.
Engineered for modern security demands, the Farpointe CSR-6.2L supports MIFARE DESFire EV2 & EV3, features integrated high-security contactless smartcard support, and incorporates unique security enhancements like MAXSecure and ValidID fraudulent data detection. It is also ETL Listed, conforming to UL Standard 294 and ULC 60839-11-1 (Wiegand models).
Read range: Up to 2 inches (physical credentials), up to 15 feet (mobile credentials)
Enhances user convenience with extended mobile credential range
Supports Conekt and Switch Tech mobile credentials
Offers flexible output interfaces: Wiegand, ABA Track II Magnetic Stripe, OSDP (separate model)
Ideal for access control applications requiring robust security and mobile-ready functionality
Backed by Farpointe's lifetime warranty
Engineered for modern security demands, the Farpointe CSR-6.2L supports MIFARE DESFire EV2 & EV3, features integrated high-security contactless smartcard support, and incorporates unique security enhancements like MAXSecure and ValidID fraudulent data detection. It is also ETL Listed, conforming to UL Standard 294 and ULC 60839-11-1 (Wiegand models).
Specification Sheet
- Click to download: CSR62L-64L_Conekt_TDS.pdf
- Bluetooth Low Energy
- Optimized for MIFARE DESFire EV2 & EV3
- MAXSecure
- ValidID
- ETL Listed - Independently Tested and Certified (Wiegand models)
- Warranty
- Wiegand, ABA Track II Magnetic Stripe or OSDP*
- Mullion Mount (CSR-6.2L)
- U.S. Single-Gang Wall-Box Mount (CSR-6.4L)
| Description | CSR-6.2L |
|---|---|
| Technology | Contactless smartcard and Bluetooth Low Energy (BLE) |
| Frequency | 13.56 MHz (contactless smartcard) and 2.4 GHz (BLE) |
| Mounting | CSR-6.2L: Mullions, including metal door and window frames, as well as flat surfaces CSR-6.4L: Single-gang wall box, as well as flat surfaces |
| Dimensions | CSR-6.2L: 1.78 |
| OEM Label Area | 0.9 |
| Certifications | FCC, ICC, CE, UL Standard 294, ULC 60839-11-1 |
| IP Code | IP67 |
| Voltage | +8 to 14 VDC |
| Current Draw | 60 mA typical, 250 mA peak @ 12 VDC |
| Read Range | Physical Credentials: Up to 2 inches (51 mm) Mobile Credentials: Up to 15 feet (4.6 m) |
| Cabling | 24 AWG minimum, multiconductor stranded with an overall foil shield |
| Interface | Wiegand (26-bit and custom formats), ABA Track II magnetic stripe (clock and data) or OSDP |
| Operating Humidity | 0% to 90% relative humidity |
| Color Options | A black snap-on cover included standard |
| Audio Tone | Beeper included standard |
| Indoor & Outdoor Installation | Electronics sealed in weather- and tamper-resistant epoxy potting |
| LED | Four-state standard (red, green, amber, and off) |
| Keypad Output | Either Wiegand or OSDP |
| Weight (Net) | 0.20kg |
| Weight (Gross) | 0.40kg |
