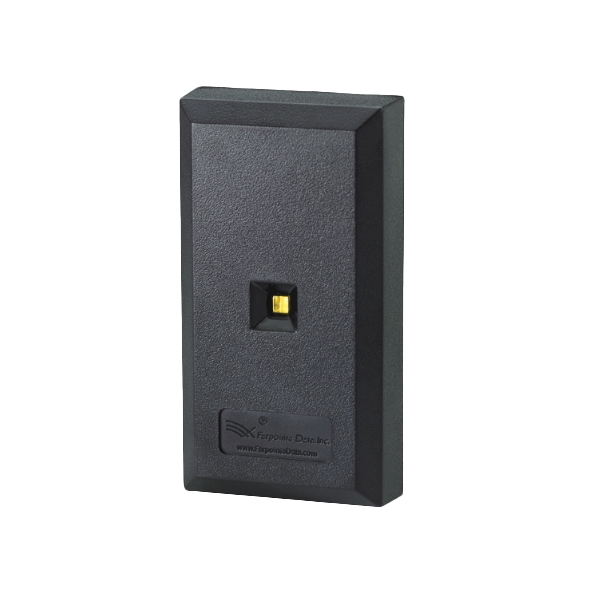

Delta3 High-Security Contactless Reader for Advanced Access Control
Product Description
Elevate your access control with the Delta3 Contactless Smartcard Reader, a powerfully secure and highly adaptable solution engineered for modern security demands. This 13.56 MHz reader supports MIFARE DESFire EV1 & EV2, offering integrated high-security contactless smartcard functionality alongside our unique MAXSecure and ValidID fraudulent data detection.
Designed for versatile mounting on mullions, metal frames, and flat surfaces, it boasts a robust IP67 rating for both indoor and outdoor installations. Choose from Wiegand, ABA Track II Magnetic Stripe, or OSDP output interfaces to seamlessly integrate with your existing systems. Backed by a lifetime warranty, the Delta reader ensures long-term reliability and performance for doors, parking facilities, and turnstiles.
- Supports 13.56 MHz contactless smartcards, including MIFARE DESFire EV1 & EV2.
- Features MAXSecure unique security and ValidID fraudulent data detection.
- Offers flexible output options: Wiegand, ABA Track II, or OSDP.
- Designed for mullion mounting and suitable for metal surfaces with included spacer.
- Built for durability with an IP67 rating for indoor and outdoor use.
- Comes with a limited lifetime warranty, ensuring lasting performance.
- Optimized for MIFARE DESFire EV1 & EV2 Integrated High-Security Contactless Smartcard Support
- MAXSecure Unique Security Feature
- ValidID Fraudulent Data Detection Solution
- Warranty Lifetime Warranty
- Wiegand, ABA Track II Magnetic Stripe or OSDP Output Interface
- Mullion Mount Metal Door, Window Frames & Flat Surfaces
| Description | Delta3 |
|---|---|
| Technology | Contactless smartcard |
| Frequency | 13.56 MHz |
| Mounting | Mullions, including metal door and window frames, as well as flat surfaces |
| Dimensions | 1.7 |
| OEM Label Area Dimensions | 0.9 |
| Certifications | FCC, ICC, CE |
| IP Code | IP67 |
| Voltage | +8 to 14 VDC |
| Current Draw | 135 mA typical @ 12 VDC |
| Read Range | Up to 1.5 inches (38 mm) |
| Cabling | 24 AWG minimum, multiconductor stranded with an overall foil shield |
| Interface | Wiegand (26-bit and custom formats), ABA Track II magnetic stripe (clock and data) or OSDP |
| Weight (Net) | 85.00kg |
| Weight (Gross) | 105.00kg |
