Salto - Design XS Reader

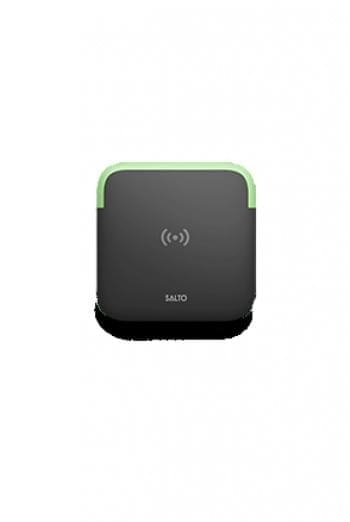

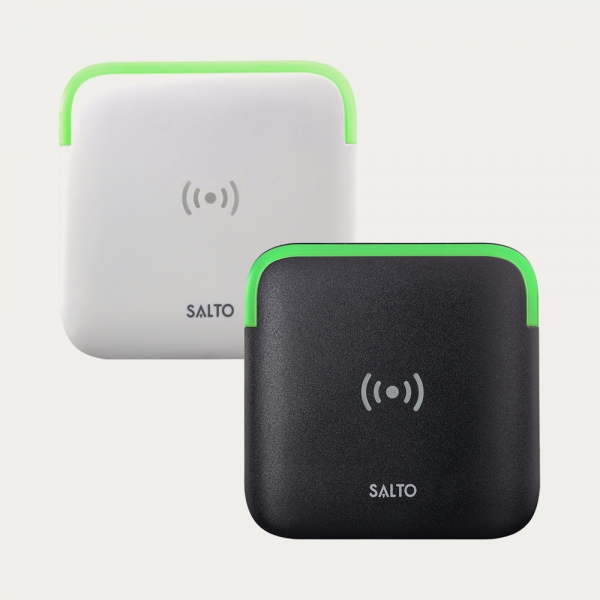

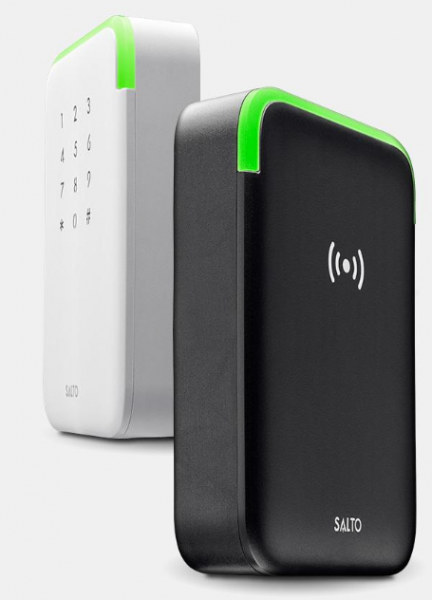

Design XS Reader

Product Description

Elevate the security and aesthetic appeal of your premises with the Salto Design XS reader. This meticulously engineered access control device seamlessly blends sophisticated design with cutting-edge technology, offering a secure and stylish solution for a wide range of applications.


Crafted with premium materials and boasting a sleek, minimalist profile, the Design XS reader integrates effortlessly into any architectural environment, from modern offices to elegant residential buildings. Its discreet yet impactful presence enhances the visual appeal of doorways while providing robust security.


Beneath its refined exterior lies a powerful array of features designed for seamless and reliable access management. The Design XS reader supports a wide variety of contactless credentials, including MIFARE®, DESFire EV1/EV2/EV3, and Bluetooth SMART, offering flexibility and convenience for users. Its robust encryption protocols ensure secure communication between the credential and the reader, safeguarding your access control system against unauthorised entry.

  • Elegant and Compact Design: A visually appealing reader that complements any environment.
  • Multi-Technology Compatibility: Supports a broad spectrum of contactless smart cards and Bluetooth SMART credentials.
  • High-Security Encryption: Ensures secure communication and prevents credential cloning.
  • Weather-Resistant Construction: Suitable for both indoor and outdoor installations.
  • Easy Installation: Designed for straightforward mounting and wiring.
  • Integration with Salto Platforms: Seamlessly integrates with Salto's comprehensive access control management software for efficient administration.
  • Visual and Acoustic Feedback: Provides clear indication of access status.

The Salto Design XS reader is more than just a security device; it's a statement of quality and innovation. By choosing the Design XS, you are investing in a solution that not only protects your property but also enhances its overall appeal. Experience the perfect synergy of security and style with the Salto Design XS.

Specification Sheet

Manual

  • Modern aesthetic design with green/red and blue clear LED colour optical signal.
  • Conical or flat square shape with rounded corners.
  • Compatible with standard European electric boxes.
  • Virtual network capable through Salto SVN data-on-card technology.
  • Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
  • Blue light indicates that the user key update is in progress through Salto Virtual Network technology.

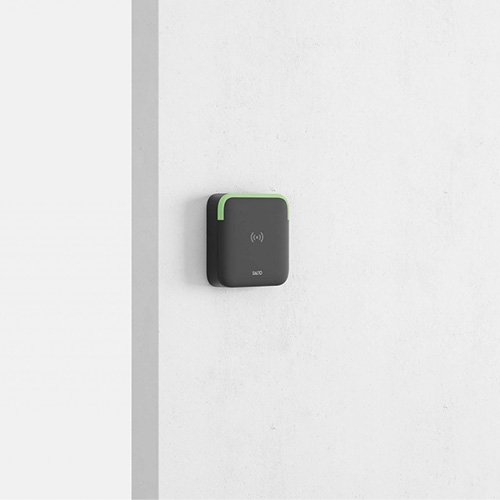

  • Available for surface mounting.
  • Concealed fixing screws for greater security and improved aesthetics.
  • Reader is housed in a two-piece, weatherproof secure electronics potted enclosure.
Description Design XS Reader
Cover material PC/ASA
IP class IP66
Certifications CE, FCC/IC, RCM, MIC, UL294
Power 12V supplied by the door controller.
Connection to the door controller AWG24 twisted pair or AWG18 cable connection.
Firmware update Via ProAccess SPACE software.
LED lamps Multi colour led to indicate access authorisation.
Temperature -30 - 70 ºC
Dimensions 95.5 (H) x 141 (W) x 29.5 (D) mm
