Third Millennium - RXQRK

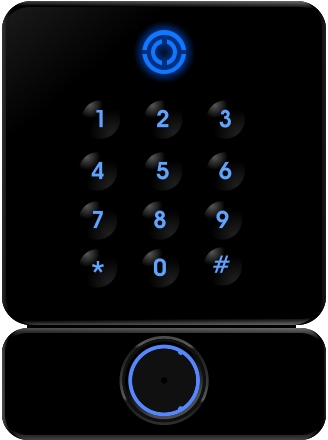

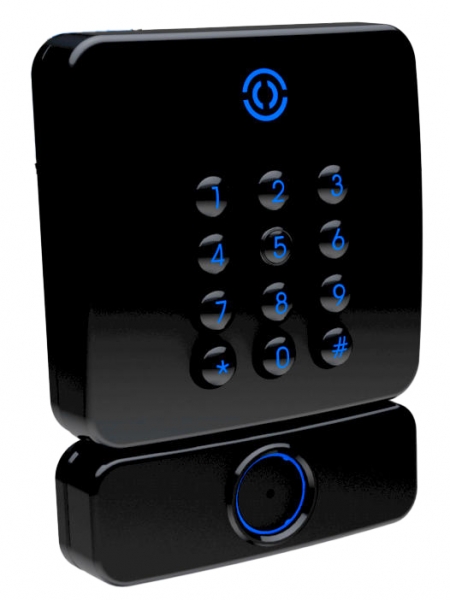

Dual Function QR Code and RFID Access Reader with Illuminated Keypad - MIFARE DESFire / 125kHz
List Price
£659.34
$0.00
€0.00
incl. VAT
Product Description
The Third Millennium RXQRK is a state-of-the-art QR code and multi-technology RFID access reader, designed for modern, flexible access control environments.
Blending seamlessly with the trusted RX Series aesthetic, the RXQRK brings together secure credential management and visitor-friendly QR scanning in one sleek, compact device.
Perfect for corporate, healthcare, education and smart building applications, the RXQRL enables secure, convenient and fast access using physical or mobile credentials.
The RXQRK is ideal for environments requiring a mix of secure card access and flexible mobile credentials, including:
- Healthcare Facilities – Secure staff access + visitor QR entry
-
Corporate Offices – Staff ID cards + temporary contractor QR codes
-
Education Campuses – RFID for students + event access via QR
-
Construction Sites – Visitor QR codes for access tracking
-
Hospitality Venues – Guest access via mobile QR credentials
The RXQR provides unmatched flexibility for sites that need to integrate secure card-based access with smartphone-enabled entry via QR code scanning. It future-proofs your access control systems by supporting modern protocols (OSDP), delivering a streamlined installation process, and ensuring visual harmony across RX Series deployments.
Specification Sheet
- Click to download: Third Millenium RXQRK datasheet.pdf
Manual
- Click to download: RXQR-INSTALLATION.pdf
- Dual Technology: Combines a secure RFID card reader with a QR code scanner
- High-Security Performance: Supports both Wiegand and OSDP protocols
- Mobile Credential Ready: Ideal for temporary or smartphone-based QR access
- Easy Installation: Fits standard UK/EU single gang electrical back boxes or wall-mounted
- Anti-Tamper Design: Built-in tamper detection for added security
- Seamless Integration: Matches RX Series product line for consistent installation aesthetics
- GovPass Compliant
| Description | RXQRK |
|---|---|
| Power Supply | +10VDC to +16VDC |
| Communication Protocols | Wiegand / Clock & Data, OSDP (RS-485) |
| Reader Functions | Pincode, RFID & QR Code Reader |
| Mounting Options | Wall mount or UK/EU single gang box |
| Housing Compatibility | Matches RX Series reader design |
| Connections | Screw terminal block (10 pin) |
| Indication | 1 RGB LED & RGB LED illuminated keypad |
| Tamper Output | Tamper or Card Present output supported |
| Protection Ratings | IP67, IK10 |
| Housing Material | Moulded polycarbonate |
| Dimensions | 117(H) x 87(W) x 32(D) mm |
| Weight (Net) | 0.50kg |
| Weight (Gross) | 0.00kg |
