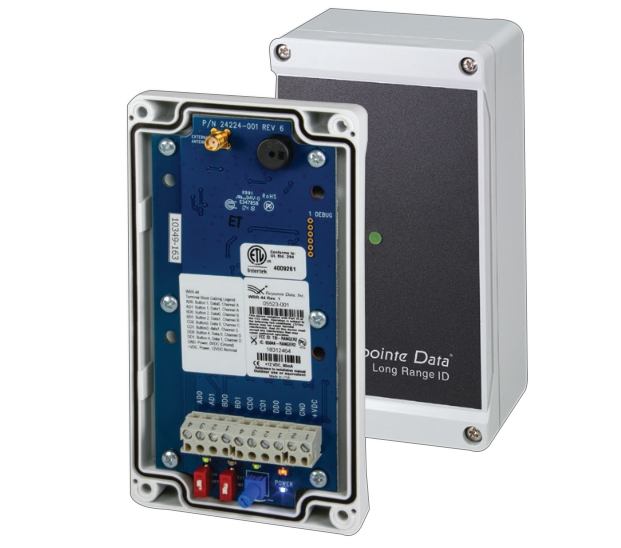

WRR-44 Long-Range Multi-Interface Receiver
Product Description
The Ranger MAXSecure Long-Range Receiver offers secure, extended-range identification up to 200 feet using 433 MHz technology. It integrates seamlessly with both Wiegand and OSDP access control systems.
Featuring advanced MAXSecure encryption and a weather-resistant enclosure, it's suitable for diverse indoor and outdoor applications. Installation is flexible with wall box and flat surface mounting options. Compatible with WRT-2+ and WRT-4+ transmitters, it provides a reliable long-range access solution.
Here are six key features of the Ranger MAXSecure Long-Range Receiver:
- Long Read Range: Up to 200 feet (61 meters) for convenient access.
- Wiegand & OSDP Support: Versatile integration with various systems.
- MAXSecure Technology: Enhanced security against unauthorized access.
- Weatherproof Housing: Durable for indoor and outdoor use (IP67 rated).
- Flexible Installation: Mounts on wall boxes or flat surfaces.
- Transmitter Compatibility: Works with WRT-2+ and WRT-4+ models.
Specification Sheet
- Click to download: WRR44_TDS.pdf
- Warranty One-Year Warranty
- Wiegand or OSDP* Output Interface
- U.S. or European Wall-Box Mount Box & Flat Surfaces
| Description | WRR-44 |
|---|---|
| Technology | Long range |
| Frequency | 433 MHz |
| Mounting | USA/European wall box or any flat surface |
| Dimensions | 3.4 |
| Transmission | Rolling code + encryption |
| Weight | 12 oz (340 g) |
| Certifications | FCC, ICC, CE, UL Standard 294, ULC 60839-11-1 |
| IP Code | IP67 |
| Voltage | 12 VDC nominal |
| Current Draw | 120 mA typical @ 12 VDC |
| Read Range | Up to 200 feet (61 m), installer adjustable |
| Cabling | 24 AWG minimum, multiconductor stranded with an overall foil shield |
| Interface | Wiegand (26 bit industry standard and custom Wiegand formats) or OSDP |
| Operating Temperature | |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Enclosure Color | Off-white plastic enclosure with black label |
| Audio Tone | Beeper included standard, installer switchable |
| Indoor & Outdoor Installation | Electronics sealed in a weather-resistant, UL listed enclosure |
| LED | Four-state standard (red, green, amber, and off), installer switchable, as well as Power (blue) and Channel (green) |
| Transmitters Supported | WRT-2+ (all variants) WRT-4+ (all variants) |
| Weight (Net) | 34.00kg |
| Weight (Gross) | 36.00kg |
