Salto - NEO-RIM-UK

Electronic Lock for Surface-Mounted Lock Cases

Bluetooth Wireless Connectivity
IP65 Rating
NFC Smartphone Access Credentials

Product Description

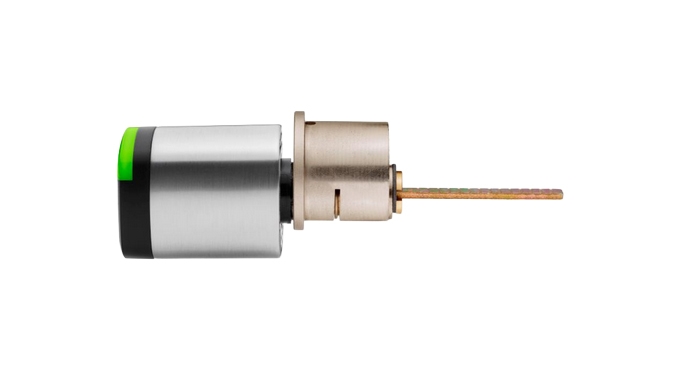

The SALTO Neo RIM UK Cylinder is a robust electronic cylinder tailored for surface-mounted lock cases, panic bars, and top-guard door applications. With support for UK cam profiles, this cylinder provides a secure and intelligent retrofit solution where traditional mortise locks cannot be installed.

It integrates seamlessly with SALTO’s platforms (Space, KS, Homelok), supports a wide range of digital credentials (MIFARE®, Bluetooth LE, NFC), and features a patented locking mechanism with anti-drill protection, dual-colour light ring status feedback, and optional acoustic signals. With external battery access and emergency override via a Portable Programming Device (PPD), the Neo RIM UK Cylinder is ideal for high-security doors, retail shutters, and communal access points.

Applications include:

  • Surface-mounted locks on communal doors

  • Timber/glass door retrofits

  • Emergency exit doors with panic bars

  • Heritage property doors

  • Residential & commercial perimeter doors

Specification Sheet

  • Compatible with UK-style RIM cylinders and surface-mounted lock cases
  • Dual-colour LED ring with optional acoustic signals
  • Encrypted access via MIFARE®, Bluetooth LE, and NFC
  • Supports emergency override via SALTO PPD
  • External LR1 battery change, no cylinder removal required
Description NEO-RIM-UK
Lock Type Electronic UK RIM cylinder
Cam Type UK standard cam 14.3 mm
Door Thickness Range 40 370 mm
Thumbturn Options Two locking thumbturn styles available
Access Credentials Key Cards: NXP MIFARE, HID Key Fobs: MIFARE Digital Keys: Bluetooth LE, NFC
Wireless Platforms SALTO Space (on-premise) SALTO KS (cloud) SALTO Homelok (cloud)
Audit Memory Up to 2,200 events (offline); 1,462 via BLUEnet
Opening Modes Standard, Office, Timed, Toggle, Auto, 2-Person, Time Toggle
Timezones 1,024 with 8 intervals/day and holiday differentiation
Reader Feedback Optical (dual LED ring), optional acoustic signals
Override Emergency opening via Portable Programming Device (PPD)
Battery 4x LR1 (Alkaline, SP01926-5 recommended)
Battery Life Up to 130,000 openings (100,000 with BLE active)
Certifications CE, FCC, RCM, SKG, ANSI A156.5 Grade 1, IP66
Operating Temp 20°C to +55C (BLE); -35C (MIFARE only)
Material/Finish Metal housing with various SALTO finishes
Security Features Anti-drill, unpairable knob, tamper detection
Dimensions Customisable from 40 370 mm cylinder lengths
Installation Note Use SP225542 tool for battery or double-knob access
Management Tools ProAccess SPACE, SALTO KS cloud, PPD, JustIN Mobile
Weight (Net) 0.32kg
Weight (Gross) 0.50kg
