Inter-M - DPX-1200S

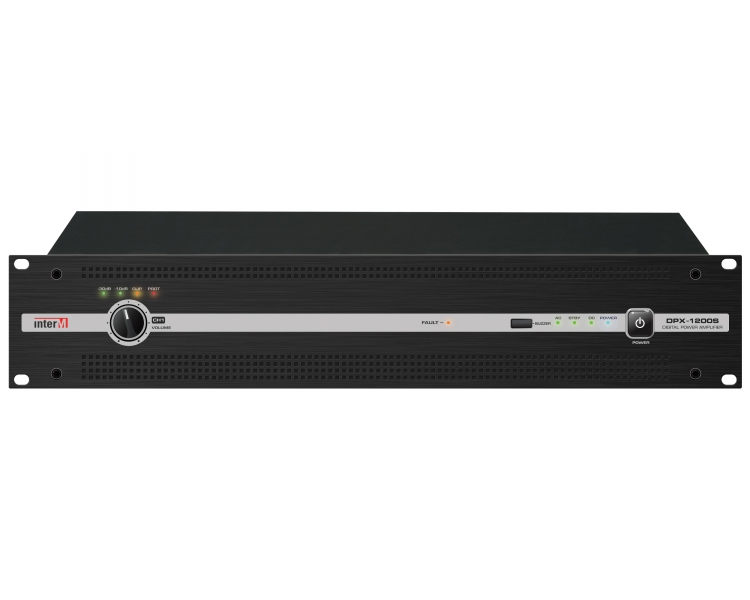

Inter-M DPX-1200S 1-Channel Digital Power Amplifier
Product Description
The Inter-M DPX-1200S is a robust single-channel, 1200W Class-D digital amplifier engineered to deliver exceptional performance in large-scale public address and background music systems. Built with uncompromising reliability, the DPX-1200S combines high efficiency, advanced protection circuitry, and redundant AC/DC power operation, making it an ideal solution for mission-critical audio environments.
One of its defining features is the dual AC/DC power redundancy, enabling the amplifier to continue operation seamlessly via a 24V DC backup supply in the event of mains failure. This guarantees that emergency broadcast messages remain active under all circumstances.
The amplifier also supports a priority broadcast function, ensuring that alarms and emergency announcements override all other inputs for maximum safety compliance. Additionally, the comprehensive protection system safeguards against overheating, output short-circuits, reverse voltage, ground faults, and over-input errors, protecting both the amplifier and connected loudspeakers.
With its status LED indicators and optional buzzer alert, the DPX-1200S provides instant feedback on operational status and fault conditions. Offering clean, reliable power and flexible system integration, this amplifier is a trusted choice for engineers, installers, and facility managers working on large distributed audio systems.
Applications:
-
Airports, train stations, and transport hubs
-
Large retail complexes and shopping centres
-
Universities, schools, and training facilities
-
Hotels, resorts, and leisure centres
-
Multi-purpose halls and cultural centres
Specification Sheet
- Click to download: DPX-300Q_600D_900S_1200S_LE_E.pdf
Manual
- Click to download: DPX-300Q_600D_900S_1200S_MANUAL_E.pdf
- Single-channel 1200W output (70V / 100V line) for large installations
- AC/DC dual power operation for uninterrupted emergency use
- Wide-ranging protection circuits (short, overheating, voltage errors, reverse polarity, etc.)
- Priority broadcast input for emergency override messaging
- Remote AC power control via contact closure
| Description | DPX-1200S |
|---|---|
| Rated Output Power | 1200W x 1CH |
| Frequency Response (1W, ±3dB) | 50Hz ~ 20kHz |
| THD (Rated Power) | Less than 1% |
| S/N (20kHz LPF, A-wtd) | More than 95dB |
| Input Sensitivity / Impedance | 0dBV / 20kΩ |
| Output Level / Impedance | 100V / 8.3Ω / 70V / 4.1Ω |
| Operating Temperature | -10℃ ~ +40℃ |
| Operating Power | AC 220~240V, 50/60 Hz / DC 24V |
| Power Consumption (1/8 Power) | 300W |
| Weight (SET) | 9.2kg/20.3lb |
| Dimensions (SET) | 482(W) x 88(H) x 424(D)mm |
| Weight (Net) | 9.20kg |
| Weight (Gross) | 10.00kg |
