IP Audio Main Controller

The Inter-M IPA-100 IP Audio Main Controller is a powerful and scalable solution designed to centralize the control of audio and video equipment across a network. Ideal for large-scale commercial, institutional, or public address systems, the IPA-100 serves as the command center for IP-based audio networks, enabling seamless integration and efficient management of connected devices.

Built to handle complex broadcasting demands, the IPA-100 supports up to 24 source devices such as CD players, tuners, and remote microphones, and can distribute audio across up to 512 individual zones. For greater operational efficiency, it allows the configuration of up to 12 broadcast groups, simplifying management of large installations like schools, stadiums, airports, and corporate campuses.

This controller supports standard network protocols and offers 100/1000 Mbps Ethernet communication via RJ-45. It accommodates both DHCP and static IP settings, and even allows for daisy chain network connections, enhancing installation flexibility. Its web-based integrated control software provides a user-friendly interface for system setup, broadcasting area configuration, and real-time system monitoring from any location with internet access.

Security and reliability are key features of the IPA-100. It includes user access control, a log file saving function, and device database management, ensuring secure, accountable operation.

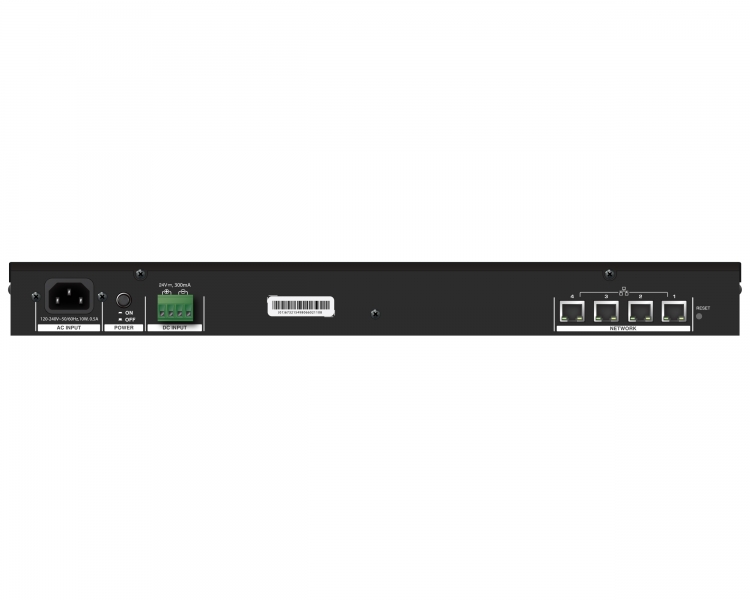

With a compact 1U rack-mount design, low power consumption (max 10W), and support for AC and DC power input, the IPA-100 is engineered for long-term, stable performance in demanding environments.

The Inter-M IPA-100 is the ultimate solution for professionals seeking reliable, centralised IP audio control with powerful zone and source management capabilities.

• Click to download: IPA-100 SYSTEM_BR_E_2409_V3.pdf

• Click to download: IPA-100_MANUAL_E - copy.pdf
