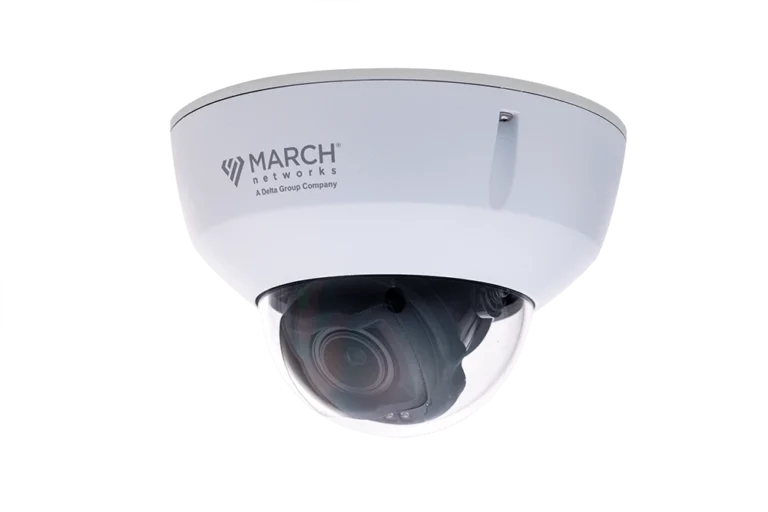

AI4 IR Dome - 4/5MP Rugged Dome Camera with Built-in Analytics and IR
Product Description
The March Networks AI4 IR Dome is a high-performance, ruggedised surveillance camera designed to meet the demanding needs of modern security applications. Delivering exceptional video clarity in both day and night conditions, it features a 4MP (16:9) or 5MP (4:3) sensor with high dynamic range (HDR) and built-in IR illuminators that capture clear images up to 50 metres in complete darkness.
Equipped with advanced Ambarella system-on-chip (SoC) technology, the AI4 IR Dome integrates intelligent video analytics to enhance situational awareness. Key features include tripwire detection, intrusion monitoring, loitering and crowd detection, face recognition, and abandoned object alerts, giving you the tools to respond to security events proactively and with confidence.
Its vandal-resistant, IP66/IK10-rated metal housing ensures long-term durability in challenging environments, from extreme cold to scorching heat. With versatile mounting options and a wide field of view, this camera is ideal for securing public and commercial premises, helping reduce blind spots and maintenance overhead through real-time tampering and obstruction alerts.
Why Choose the AI4 IR Dome?
Built-In Video Intelligence
The AI4 IR Dome comes loaded with advanced analytics including intrusion detection, tripwire alerts, crowd monitoring, and face detection. These built-in tools enable instant recognition of security threats and atypical behaviour, significantly improving response time and situational awareness.
Rugged Design for Harsh Environments
With a durable metal housing, impact-resistant polycarbonate dome, and IP67/IK10 weather and vandal protection, this dome camera is built to withstand tough environments. It operates reliably in temperatures from -40°C to +50°C with IR enabled, making it suitable for both indoor and outdoor deployments.
IR Night Vision & HDR Imaging
Offering up to 50m of IR illumination and 120dB HDR, the AI4 IR Dome captures sharp and detailed images in low light and high contrast conditions. The camera’s motorised 2.7–13mm lens provides flexible installation and zoom control.
Applications
Ideal for security and surveillance in:
- Retail chains and shopping centres
- Transportation hubs and car parks
- Healthcare facilities and hospitals
- Schools, universities, and campuses
- Government and municipal buildings
- Critical infrastructure and utilities
- Corporate office complexes
- Logistics and distribution centres
Manual
- Click to download: MN_AI4_IR_Dome_DS_EN_07-2024.pdf
- Built-in IR illumination for up to 50m range with intelligent IR control
- Integrated analytics: face detection, crowd monitoring, and object tracking
- Durable IK10/IP67-rated housing for outdoor and high-risk environments
- 5X optical zoom and 48X digital zoom for detailed observation
- Tamper and obstruction alerts for proactive maintenance
| Description | 41094-101 |
|---|---|
| Image Sensor | 1/2.7 |
| Effective Pixels | 4MP, 2560 (H) x 1440 (V) 16:9 aspect 5MP, 2560 (H) x 1944 (V) 4:3 aspect |
| Lens | |
| Field of View | 113° H X 58.4° V (wide); 31.4° H x 17.6° V (tele) |
| High Dynamic Range (HDR) | 120 dB |
| Day/Night | Automatic IR cut filter |
| Minimum Illumination | Color: 0.075 lux @f1.4; B/W: |
| Shutter Speed | 1/5 sec - 1/32,000 sec |
| Camera Angle Adjustment | Pan 350 |
| Pan/Tilt/Zoom | 5X optical zoom, 48x digital zoom (4x on IE plug-in, 12x built-in) |
| White Balance | Manual/Automatic |
| IR Wavelength | 850nm |
| IR Illumination Distance | 50m (164 ft) with intelligent IR |
| Video Compression | H.265, H.264, MJPEG |
| Resolution | 5MP (2560x1920), 2MP 1080p (1920x1080), 1MP 720p (1280x720) |
| Frame Rate | Up to 30fps @ 5MP, 2MP, 1MP |
| Audio Compression | G.711, G.726 |
| Construction | Metal housing, polycarbonate bubble |
| Dimensions | 155 (D) x 103 (H) mm |
| Weight (Net) | 0.90kg |
| Weight (Gross) | 1.20kg |
