March Networks - 42057-101

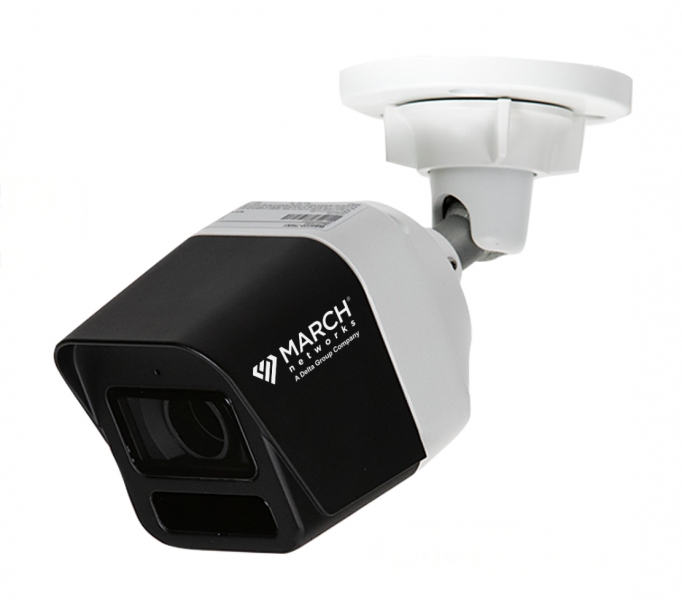

EL5 IR Bullet Camera
Product Description
The March Networks EL5 IR Bullet Camera is a powerful 5MP IP surveillance camera designed for demanding outdoor and indoor environments. Engineered for durability with an IK10 vandal-resistant and IP66-rated housing, it delivers exceptional video performance in all lighting conditions.
With integrated smart IR illumination up to 30m, this camera adapts to varying distances and environments by automatically adjusting IR intensity, preventing overexposure of close objects. The EL5 also features a full suite of advanced video analytics, including tripwire, intrusion, loitering, abandoned object, and object removal detection, providing proactive monitoring and enhanced situational awareness.
It supports multiple resolutions and streaming formats (H.265/H.264/MJPEG) and offers flexible edge recording via microSD or NAS for redundancy. Ideal for commercial premises, transport hubs, perimeter surveillance, and smart city deployments.
Applications include: retail security, public infrastructure, vehicle depots, perimeter monitoring, education facilities, and industrial sites.
Specification Sheet
- Click to download: MN_EL5 Bullet_DS_EN_6-2025.pdf
- 5MP resolution with HDR (120 dB) for high-quality images
- Integrated video analytics including loitering, tripwire, intrusion, and object removal
- Smart IR illumination with up to 30m range and automatic intensity adjustment
- Rugged IK10 and IP66 housing for vandal and weather resistance
- Dual power options: 12V DC or PoE (IEEE 802.3af), with redundant local/NAS recording
| Description | 42057-101 |
|---|---|
| Image Sensor | 1/2.7 |
| Resolution | 5MP (2880x1620) |
| Lens | |
| IR Illumination Distance | 30 m (98.42 ft) |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Up to 30fps (5MP with Smart VCA off) |
| Audio | Two-way (Full Duplex), built-in mic, Line-in/out |
| Local Storage | microSD/SDHC/SDXC card slot |
| Smart Video Analytics | Tripwire, Intrusion, Loitering, Object Removal, Abandoned Object |
| Power Input | |
| Power Consumption | Max 7.77W (PoE, IR on) |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Operating Temperature | -30C to +50C |
| Dimensions (L×W×H) | 195 × 85 × 85 mm |
| Digital Zoom | 8x |
| Protocol Support | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTPS, ONVIF S/G/T |
| Alarm I/O | 1x DI, 1x DO |
| Certifications | CE, cULus, RCM, WEEE, UKCA, NOM |
| Weight (Net) | 0.76kg |
| Weight (Gross) | 1.00kg |
