CYP - IP-A750TX
Audio Over IP Transmitter for IP-7000 series
Login for Pricing
Product Description
The IP-A750TX Audio over IP Transmitter is engineered to deliver high-quality, low-latency audio distribution across a standard 1Gb network.
Designed specifically for integration within the CYP IP-7000 AV over IP platform, this unit allows system designers and integrators to extend both analogue and digital audio signals over long distances using CAT5e/6 infrastructure, significantly reducing cabling complexity and installation costs.
The IP-A750TX also supports RS-232 over IP, allowing remote control of connected serial devices, an essential feature for advanced automation and control in professional AV systems. With field-upgradable firmware and robust TCP/UDP command support, the unit is designed to meet the evolving demands of networked AV environments.
Applications:
- Multi-room audio distribution in commercial buildings
- Audio extension in AV over IP systems
- Corporate meeting rooms and conferencing environments
- Retail and hospitality background music systems
- Integration with control systems for automated audio routing
- Educational campuses requiring centralised audio distribution
- Houses of worship and large venue sound systems
Specification Sheet
- Click to download: IP-A750TXRX_Datasheet_Web-1.pdf
- Transmits analogue and digital audio over a standard 1Gb IP network
- Supports Line, Mic, and Optical (S/PDIF/TOSLINK) audio inputs for versatile connectivity
- Extends audio up to 100m over CAT5e/6 via network switch infrastructure
- Seamless integration with CYP IP-CS7 controller for system management and configuration
- Seamless integration with CYP IP-CS7 controller for system management and configuration

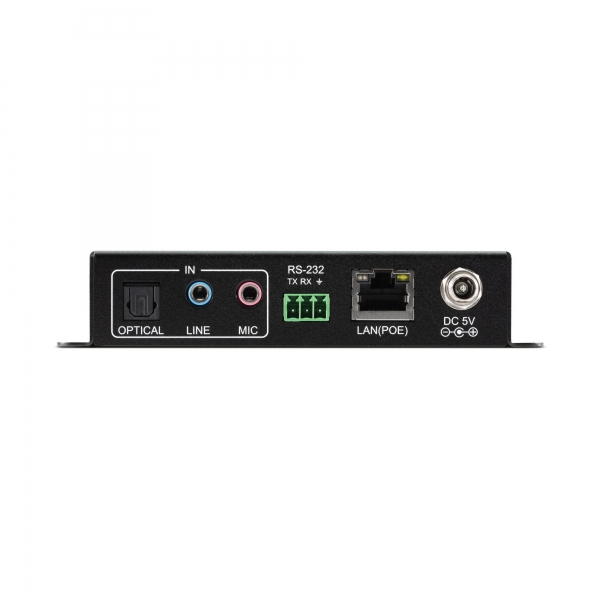

| Description | IP-A750TX |
|---|---|
| Input Port | 1 Optical, 1 Line (3.5mm), 1 Mic (3.5mm) |
| Bi-directional Port | 1 GbE LAN (RJ-45) |
| Control I/O | 1 RS-232 (3-pin Terminal Block) |
| Optical In | LPCM (2 Channels), Bitstream |
| Power Supply | 5V/2.6A DC (Locking) |
| Power Consumption | 2.27W |
| Dimensions (W×H×D) | 108mm×25mm×108mm [Case Only] |
| Weight (Net) | 0.70kg |
| Weight (Gross) | 0.76kg |
