CYP - PU-101PL-KIT

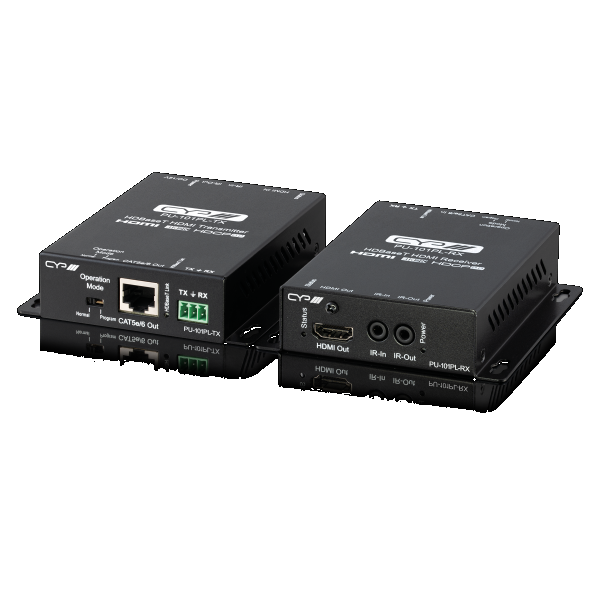

HDBaseT1 Lite HDMI Extender Set with PoC, 2-way IR and RS232
Product Description
The CYP PU-101PL-KIT is a compact and powerful HDBaseT Lite HDMI Extender Set, designed to deliver high-resolution video and audio alongside control signals, over distances up to 70 metres using a single CAT5e/6 cable. Supporting 4K at 40m and 1080p at 70m, this extender kit ensures high-performance transmission for both home AV and commercial integration projects.

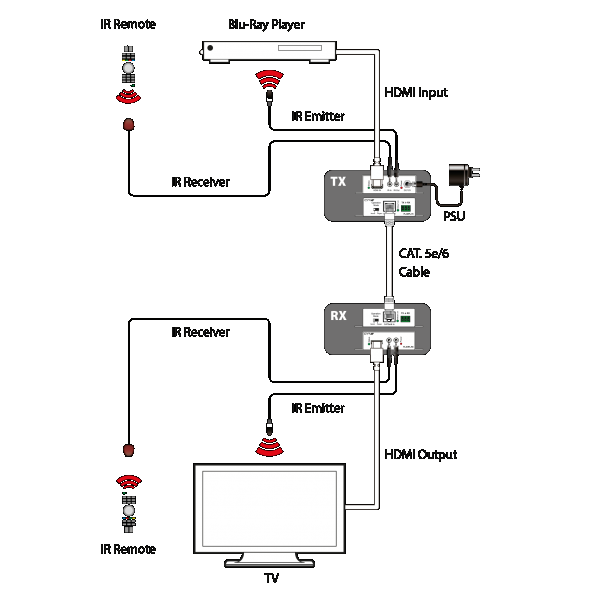

A key feature is the Power-over-Cable (PoC) technology, allowing the Receiver to be powered directly from the Transmitter simplifying installation and reducing the need for additional power supplies. Its built-in bidirectional IR and RS232 ports offer full device control, making it ideal for classrooms, retail environments, and meeting rooms.
The PU-101PL-KIT supports pass-through of HDCP and multiple audio formats including LPCM and Bitstream, while LED indicators and compact metal housings enhance its durability and usability. A plug-and-play solution tailored for AV professionals, this extender set offers unbeatable flexibility and reliability.
Applications:
- University lecture halls and classroom AV systems
- Corporate conference rooms and meeting spaces
- Digital signage in retail and showroom installations
- Residential AV systems requiring remote source control
- RS232 control for system integration and automation
Manual
- Click to download: PU-101PL-KIT_PDF-Manual_V1.00.pdf
- HDCP 2.2 Compliant
- HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
- 4K/2K & 4K UHD signals can be transmitted up to 40m via CAT5e/6
- HDMI status, Power & HDBaseT Link LED's
- Supports two-way IR, RS-232 Control, and Power Over Cable (PoC)
- Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

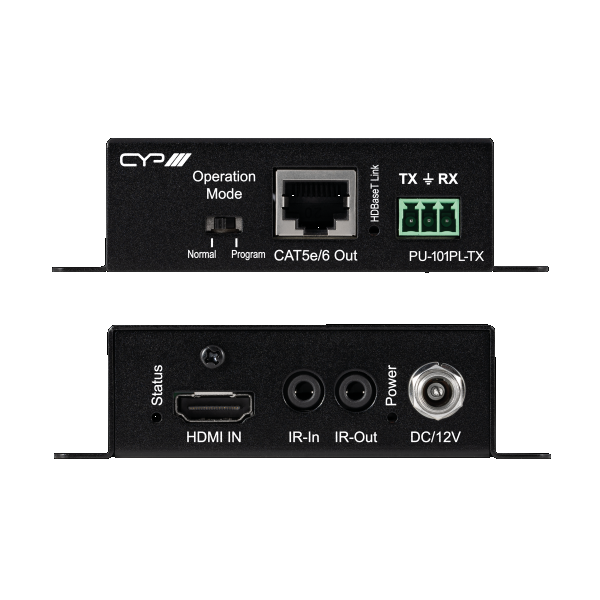

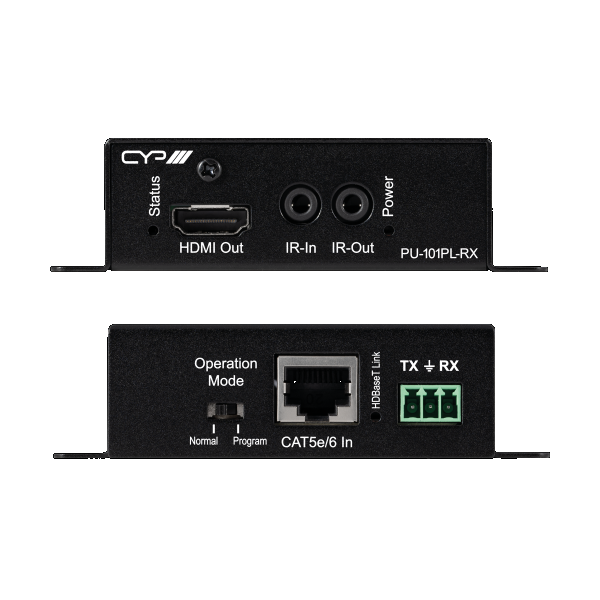

| Description | PU-101PL-KIT |
|---|---|
| Inputs | 1x HDMI [1x HDMI (TX) Uncompressed AV and Data]1x HDMI [1x HDMI (TX) Uncompressed AV and Data]1x HDMI [1x HDMI (TX) Uncompressed AV and Data]1x HDMI [1x HDMI (TX) Uncompressed AV and Data] |
| - | 1x RJ45 [1x HDBaseT (RX) HDMI & Propriety Data] 1x Phoenix (3 pin) [1x RS-232] |
| - | 2x 3.5mm Stereo mini-jack [2x Infra Red Receiver] |
| Outputs | 1x HDMI [1x HDMI (RX) Uncompressed AV and Data] |
| - | 1x RJ45 [1x HDBaseT (TX) HDMI & Propriety Data] |
| - | 1x Phoenix (3 pin) [1x RS-232] |
| - | 2x 3.5mm Stereo mini-jack [2x Infra Red Emitter] |
| POE PSU | PoC |
| PSU | 12V/2A |
| Dimensions | 71 (W) x 25 (H) x 105 (D) mm |
| Weight (Net) | 0.07kg |
| Weight (Gross) | 0.25kg |
