CYP - PUV-1510-KIT

HDBaseT1 Transmitter & Receiver Kit with LAN & PoH

4K/UHD Support
HDBaseT
HDCP 2.2
HDMI - High Definition Multimedia Interface

Product Description

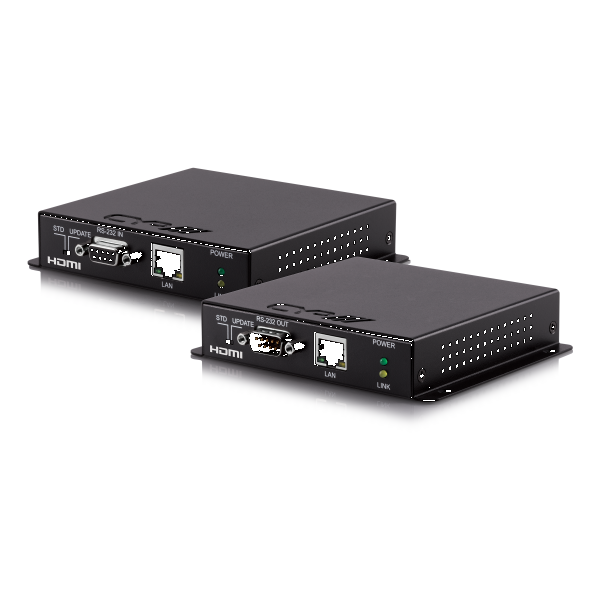

The CYP PUV-1510-KIT is a compact, yet powerful HDBaseT transmitter and receiver kit engineered for seamless full HD AV transmission. Designed to deliver uncompressed 1080p video over a single Cat6/7 cable up to 60 metres, this kit is a perfect solution for reliable signal extension in demanding environments.

Equipped with PoH (Power over HDBaseT), the system allows power to be sent from either the transmitter or receiver, reducing the need for additional power supplies. LAN passthrough provides IP connectivity between source and display locations, ensuring devices remain network-connected even across distances.

Key Features Highlighted:

  1. Flexible Powering with PoH: With bi-directional Power over HDBaseT, either the transmitter or receiver can power the system, reducing cabling complexity and improving installation efficiency.

  2. LAN Connectivity: The integrated LAN passthrough function ensures Ethernet communication is maintained across locations – ideal for smart displays, networked control, or extending IP-based AV sources.

  3. Reliable HD Video Extension: Transmit uncompressed 1080p signals with zero latency up to 60 metres using a single Cat6/7 cable, maintaining pristine AV quality without signal degradation.

Example Applications:

  • Corporate boardroom AV setups

  • University lecture halls and campus-wide AV networks

  • Digital signage in shopping centres or airports

  • Medical facilities requiring clean signal transmission

  • Government and military briefing rooms

Manual

  • Supports uncompressed video/audio up to 10.2Gbps
  • 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
  • 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7
  • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
  • Supports 3D signals
  • HDCP2.2 Compliant
Description PUV-1510-KIT
TX Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 9pin Dsub [1x RS-232 Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
TX Outputs 1x RJ45 [1x HDBaseT output HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 1x RJ45 [1x Ethernet (I/O) IP]
TX PSU 48V/0.83A
TX Dimensions 128 (W) x 25 (H) x 108 (D) mm

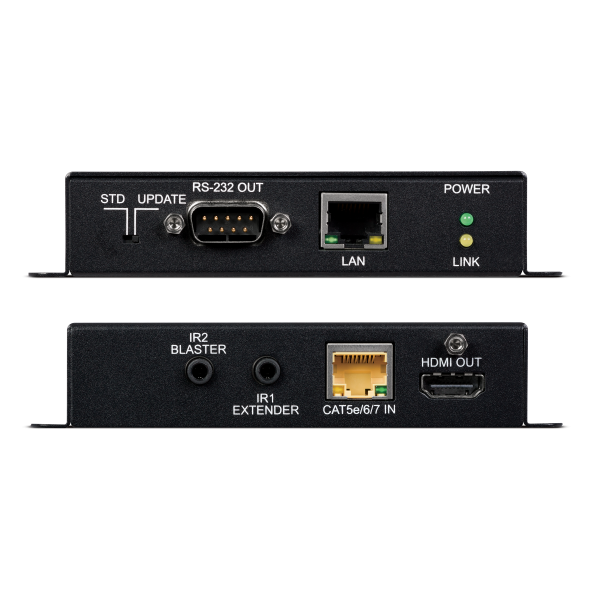

RX Inputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- 1x RJ45 [1x LAN Serving]
RX Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 9pin Dsub [1x RS-232 Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
RX PSU PoH
RX Dimensions 128 (W) x 25 (H) x 108 (D) mm
Weight (Net) 0.25kg
Weight (Gross) 0.50kg
