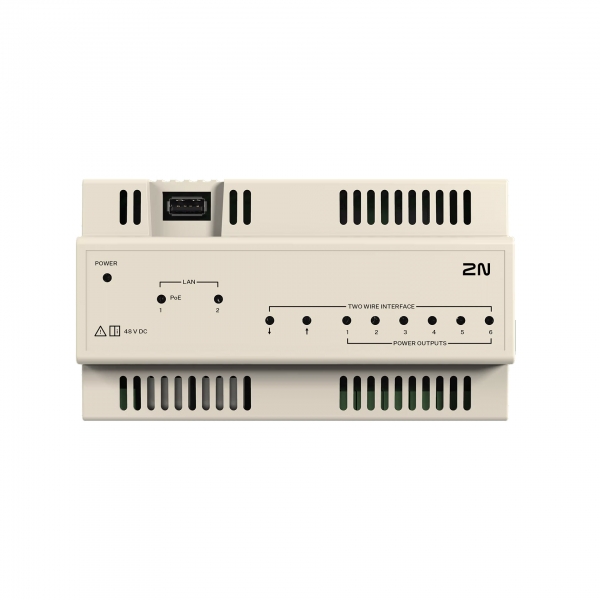

The 2N Clip 2wire-IP Switch is a dedicated DIN rail-mounted switch designed to connect multiple 2N Clip 2wire-IP indoor stations using legacy 2-wire cabling. Supporting up to six Clip units per switch, with two additional 2-wire ports for daisy-chaining multiple switches, this compact solution enables high-performance IP communication in retrofit and new-build environments alike.

This unit features two RJ-45 Ethernet ports, one of which provides PoE (802.3af) to power 2N IP intercoms, access readers, or additional switches. Each switch requires an external 48V DC power supply (1.92A), with model 1120302 recommended for optimal performance.

Ideal for multi-storey residential installations, the Clip 2wire-IP Switch installs neatly into DIN-mounted risers or standard circuit breaker boxes, providing robust and scalable connectivity for apartments, retrofit upgrades, and hybrid IP installations. Fully compatible with the 2N PhyLink 2wire-IP adapter

Supports up to 6 × 2N Clip 2wire-IP indoor stations per switch
2 × daisy chain ports for linking additional switches
2 × Ethernet ports for 2N IP intercoms or networking (1 × PoE)
DIN rail mountable for electrical risers and breaker boxes
Powered by external 48V DC source
Compatible with legacy 2-wire cabling
Works with 2N PhyLink adapter
Compact form factor with IP20 rating
Status indicators for easy diagnostics
Ideal for retrofits, apartments, and floor-based installations

Description	2N Clip 2wire-IP Switch
Supported Clip Ports	6 × powered 2wire-IP (10Mbps)
Daisy Chain Ports	2 × passive 2wire-IP (100Mbps)
LAN Connectivity	2 × RJ-45 100Base-TX
PoE	1 × port (802.3af Class 0, up to 25W)
Power Supply	External 48V DC / 1.92A (not included)
Dimensions	155 × 88 × 59 mm
Operating Temperature	-10 to 50C
Storage Temperature	-20 to 70C
Mounting	DIN rail mounted into switchboards
IP Rating	IP20
Weight (Net)	0.31kg
Weight (Gross)	0.45kg
