Reliable 4K AV transmission over long distances – fully compatible with CYP’s modular SDM platform.

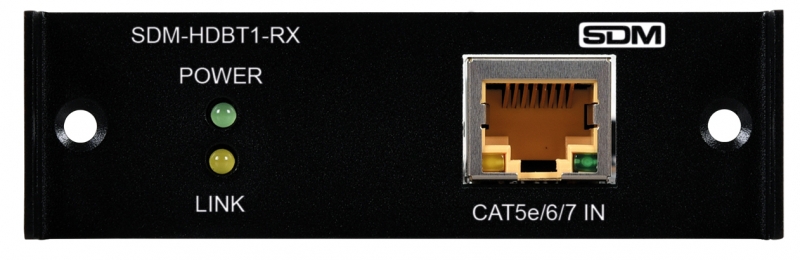

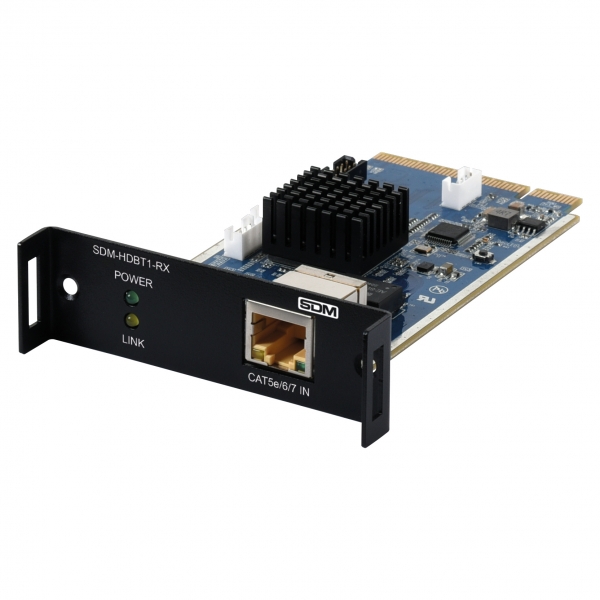

The CYP SDM-HBT1-RX is a high-performance HDBaseT1 receiver module, purpose-built to extend uncompressed 4K video and audio signals over a single CAT6A/7 cable. Designed for use with CYP’s modular Signal Diversified Module (SDM) platform – including the OR-32SDMI matrix – this compact module delivers exceptional signal reliability and installation flexibility for professional AV environments.
Whether it’s a corporate boardroom, lecture hall, or digital signage system, the SDM-HBT1-RX ensures crystal-clear image quality with seamless plug-and-play performance.
4K Signal Extension
Transmits 4K@60Hz (4:2:0) video signals up to 40m over CAT6A/7 cabling – perfect for high-resolution AV across large spaces.
HDBaseT1 Technology
Utilises industry-standard HDBaseT for point-to-point transmission. Simply pair with a compatible CYP HDBaseT transmitter for instant, stable operation.
Modular Integration
Fully compatible with CYP’s SDM-ready solutions including the OR-32SDMI modular matrix – enabling flexible, scalable AV infrastructures.
Professional Compliance
Supports HDMI 2.0 and HDCP 2.2 standards, ensuring full compatibility with protected content and modern AV sources.
Compact, Durable Form Factor
Built in a robust steel chassis, the SDM format allows for easy installation in matrix frames, signage enclosures, and rack-mounted systems.
Corporate & Commercial AV – Boardrooms, meeting spaces, and video conferencing
Education – Lecture theatres, classrooms, and campus-wide AV distribution
Digital Signage – Multi-screen retail or wayfinding solutions
Hospitality & Leisure – Bars, hotels, event venues
Control Rooms – Centralised AV routing and monitoring
The CYP SDM-HBT1-RX delivers more than just point-to-point AV—it offers scalable integration, 4K clarity, and professional-grade signal stability, all within a compact and modular form. For modern AV systems demanding future-proof reliability, this receiver module is an essential piece of the puzzle.
Description | SDM-HBT1-RX |
---|---|
Input Port | 1 HDBaseT (RJ-45) |
Output Port | 1 CYP Module (Edge Connector) |
HDMI Compliance | HDMI 2.0 (Edge Connector) |
HDCP Compliance | 2.2 |
Input Signal Type | 4K@60 YUV 4:2:0 |
Output Signal Type | 4K@60 YUV 4:2:0 |
Maximum Input | HDBaseT 4096×2160p@60 YUV 4:2:0 |
Maximum Output | HDMI (Edge Connector) 4096×2160p@60 YUV 4:2:0 |
Chassis Material | Metal (Steel) |
Chassis Color | Black |
Dimensions | 122(W) × 25(H) × 82 (D)mm [Case Only] |
Weight (Net) | 0.60kg |
Weight (Gross) | 0.62kg |
