CYP - OR-PIP42SDMO

CYP OR-PIP42-SDMO Multi-view Modular Processor

4K/UHD Support

Product Description

The CYP OR-PIP42-SDMO is a versatile 4x2 HDMI matrix switcher with advanced multiview processing and a dedicated SDM output slot for modular expansion. Designed for professional AV environments, this processor enables seamless switching, scalable multi-window displays, and integration with streaming, capture, or signal extension modules—making it a future-ready solution for signage, broadcasting, conferencing, and control room applications.

Key Features

  • Flexible SDM Expansion Slot: Integrate CYP SDM modules such as 4K streaming (SDM-XT-4K), capture (SDM-XT-C), or HDBaseT (SDM-HBT1-TX) for custom applications.

  • True 4K UHD Performance: 18Gbps HDMI 2.0 inputs and outputs supporting 4K@60Hz (4:4:4).

  • Multiview & Matrix Modes: Display up to four sources simultaneously with Picture-in-Picture (PiP), Picture-outside-Picture (PoP), and quad-view layouts—or use traditional matrix routing.

  • Seamless Switching: Zero sync loss when switching in matrix mode.

  • Advanced Audio Control: Integrated mixer allows external audio sources (line or mic) to be blended with HDMI audio.

  • WebGUI & Control Options: Manage layouts, audio, and EDID settings via WebGUI, Telnet, RS-232, or front panel buttons.

  • Custom Presets & Logos: Save and recall display presets, and overlay graphic logos via USB upload.


Take a look at the full CYP range here

Specification Sheet

Manual

  • Serves as a signage platform to couple with CYP modular solutions for multiple ProAV purposes
  • HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
  • Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode
  • Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection
  • Supports the ability to store a multi-window arrangement as a preset that can be recalled later
  • EDID management
  • Uploadable and freely positioned graphic logo support
  • Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI

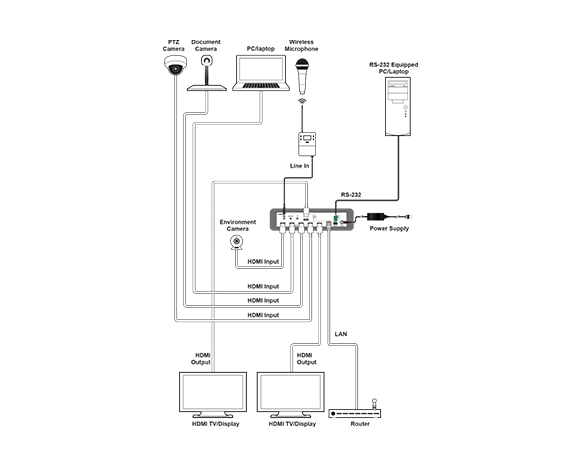

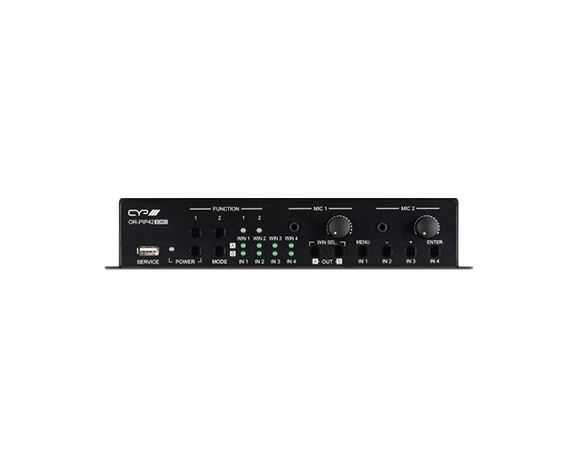

  • Controllable via front panel buttons, WebGUI, Telnet, RS-232
Description OR-PIP42SDMO

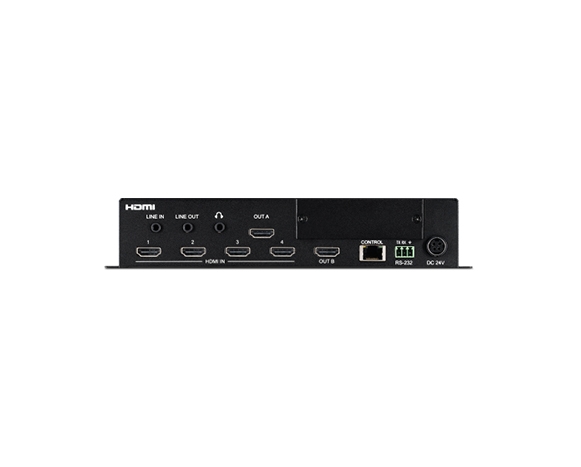

Input Port 4 HDMI (Type-A) 3 Stereo (3.5mm)
Output Port 2 HDMI (Type-A) 2 Stereo (3.5mm)
Control I/O 1 RS-232 3-pin Terminal Block 1 IP Control (RJ-45)
Service Port 1 USB (Type-A)
HDMI Compliance 2.0 (DVI 1.0)
HDCP Compliance 2.2
Input Signal Types 4K@60 8 bit YUV 4:4:4
Output Signal Types 4K@60 8 bit YUV 4:4:4
Maximum Input HDMI 4096x2160p@60
Maximum Output HDMI 4096x2160p@60
HDMI Input 1,2 LPCM (8 channel,192kHz) Bitstream High-Definition Bitstream
HDMI Input 3,4 LPCM (2 Channels, 48KHz)
Line In Max Audio Level: 2Vrms Impedance: 10kΩ Type: Unbalanced
Power Supply 24V/2.7A DC
Power Consumption 24W
Chassis Material Metal (Steel)
Metal (Steel) Black
Dimensions (W×H×D) 213.5mm×43mm×179.3mm [Case Only] 213.5mm×44mm×180.3mm [All Inclusive]
Weight (Net) 1.20kg
Weight (Gross) 1.40kg
