Akuvox - S565W

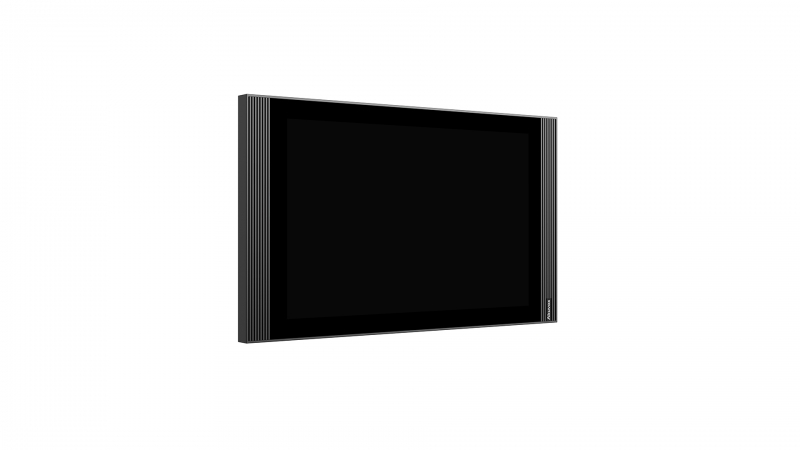

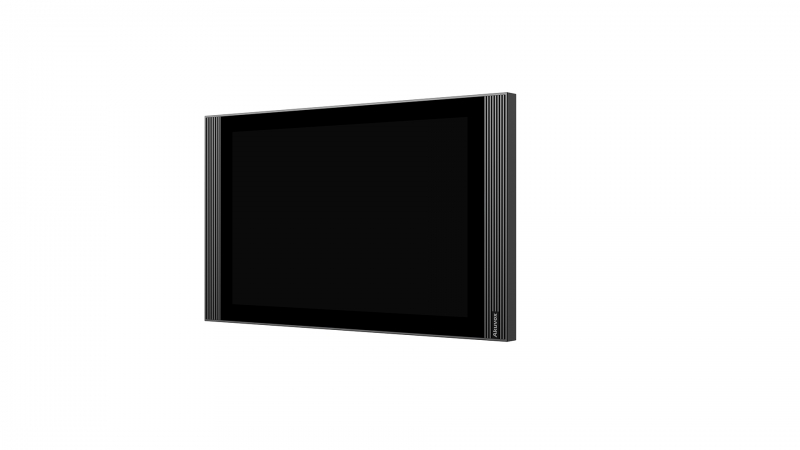

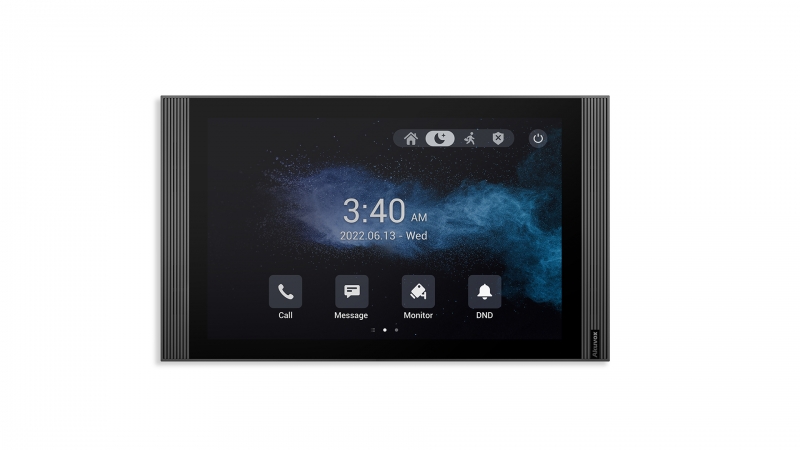

10" IP Indoor Monitor (Linux) - brushed aluminium
Product Description
Elevate your home's security and convenience with the Akuvox S565W Intercom Answering Panel.
Experience the future of home communication with this sleek, multi-functional touchscreen communicator. Its intuitive Linux operating system and brilliant 10-inch display offer a seamless user interface for crystal-clear audio and video calls with your door phones.
Enjoy the freedom and flexibility of SIP 2.0 protocol, allowing you to connect with loved ones and manage your home's security from anywhere. The Akuvox S565W is more than just a door phone; it's a stylish and sophisticated addition to your home that combines cutting-edge technology with unparalleled convenience.
Applications:
Ideal for use in apartment complexes, shared housing, home automation systems, large villas and shared office environments.
Also available in White.
Specification Sheet
- Click to download: Akuvox S565W Datasheet_231122_V3.0.pdf
- Ultra-clear, stylish appearance
- 10-inch capacitive touch screen with energy saving mode
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Support US or European electrical wall box mounting
| Description | S565W |
|---|---|
| Display | 10 Inch IPS LCD 1280x800 resolurion |
| Screen | 10 Inch capacitive touch screen |
| Wi-Fi | IEEE802.11 b/g/n, @2.4GHz |
| RS485 port | Support |
| Relay out | 1 |
| Bell in | 1 |
| I/O | 8 |
| Front panel | Plastic |
| RAM / ROM | 128MB / 256MB |
| Microphone | Dual microphones |
| Speaker | One speaker |
| Ethernet Ports | 2xRJ45,10/100Mbps adaptive |
| POE | 802.3af Power-over-Ethernet |
| Power | 12V DC Connector |
| Installation | Wall-mounted & Desktop |
| Working Humidity | 10~90% |
| Working Temperature | -10°C ~ +45°C |
| Storage Temperature | -20°C ~ +70°C |
| Dimensions | 278(W) x164(H) x 23(D) mm |
| Weight (Net) | 0.60kg |
| Weight (Gross) | 0.80kg |
