Akuvox - E12W-DRK

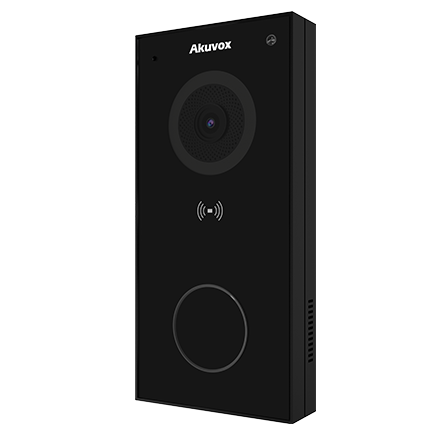

Smart Doorbell with 1 Call Button - Camera, RFID, BLE, Wifi, Surface Mount, black
Product Description
The E12W-DRK SIP Smart Doorbell is a highly-compact, single call button, IP-connected Door Intercom, featuring high resolution colour camera and RFID card reader for swift, secure remote audio/video communication and door entry.
Using the latest IP connectivity technology, the Akuvox E12W-DRK Doorbell enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.
The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs.
WiFi Connectivity:
The E12W Door Phone features built-in WiFi connectivity which allows wireless connection to the network for easy installation (no wired Ethernet cable required - although a power supply is still required).
Finished in black and supplied with surface-mounting back plate. Also available in silver aluminium.
- Resolution: up to 1080p
- Maximum image transfer rate: 1080p - 25fps
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rd Party Video components, e.g. NVRs
Door Entry Features
- Integrated RFID Card Reader
- Relays controlled individually by DTMF tones
- Camera permanently operational
- White balance: auto
- Auto-night mode with LED illumination
- Minimum illumination: 0.1LUX
Networking
- 1x10/100 Mbps Ethernet port
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
SIP Endpoint
- SIP v1(RFC2543), SIP v2(RFC3261)
- Audio codecs: G.722
- Video codecs: H.264, H.265
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Door opener via DTMF post-dial
Application Scenarios
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
Manual
- Click to download: Akuvox E12W Datasheet V2.0 - copy.pdf
- IP connected Door Intercom
- Single Call Button (illuminated)
- Integrated RFID Card Reader
- Access Control authentication via RFID or Bluetooth BLE
- IP65 rated for indoor & outdoor applications
- WiFi network connectvity
- Wide-angle camera: Horizontal 123º, Vertical 69º
- Two-way audio communication over IP networks with Echo Cancel feature
- Easily integrates with SIP Systems
- Power supply via PoE or adapter
- Finished in black
| Description | E12W-DRK |
|---|---|
| Colour | Black |
| Body material | Plastic and aluminium |
| Installation | Surface mounted (back plate included) |
| Camera | 2M pixels, automatic lighting |
| Button | 1 call button (illuminated) |
| Relays Out | 1 |
| Inputs | 2 |
| Wiegand Support | Yes |
| Protection Rating | IP65 |
| Bluetooth Authentication | BLE |
| RFID Card Reader | 13.56MHz |
| Output relay | 2 output relays for remote door lock control |
| Dimensions | 70(W) x 146(H) x 23(D) mm |
| Weight (Net) | 0.30kg |
| Weight (Gross) | 0.40kg |
