For projects requiring a cleaner, built-in aesthetic, the R25KF flush-mount version delivers the same high-performance features in a sleek, recessed form factor.
You are here: Door Intercom > IP Door Intercoms > IP Intercom Stations > Surface Mount Ultra Wide-angle Video Door Phone

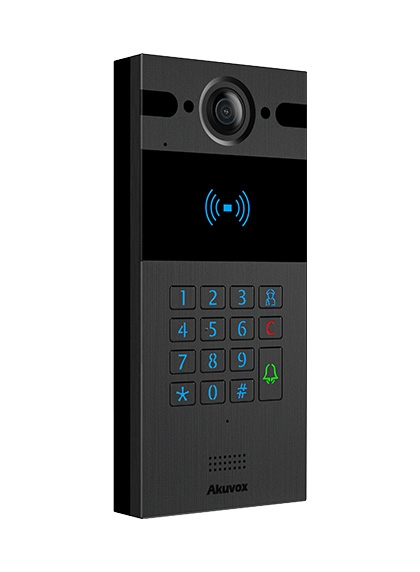

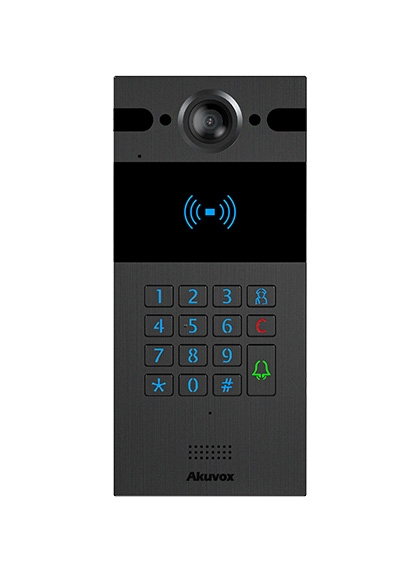

Akuvox - R25KS
Surface Mount Ultra Wide-angle Video Door Phone
Product Description
The Akuvox R25KF is engineered for demanding access-control and video-entry installations, offering a high-resolution 4 megapixel sensor with up to 2K resolution and a full 150° horizontal / 150° vertical field of view.
The ultra-wide-angle video door phone ensures that no visitor detail goes unnoticed, dramatically reducing blind spots and improving on-site monitoring visualisation, a crucial advantage in public access, commercial and gated-entry environments.
With its combination of ultra-wide field-of-view, rugged weatherproof housing and multi-technology access control, the Akuvox R25KF is a robust video door phone solution engineered for system integrators, security contractors and access-control professionals. The device is particularly suited to installations where visitor verification, wide-angle visual coverage and industrial-grade reliability are required.
Flush & Surface Mount Options
The R25KS is designed as a surface-mount unit, offering a robust and versatile housing ideal for installations where wall recessing isn’t possible.
Specification Sheet
- Click to download: Akuvox R25K Datasheet.pdf
- 4 MP camera sensor with resolution up to 2K for sharp video quality
- IP65 ingress protection rating for robust outdoor installation
- Ultra-wide field of view: 150° horizontal and 150° vertical coverage
- Dual-format RF card reader supporting 13.56 MHz & NFC plus 125 kHz ID card reader
- Built-in relay outputs and inputs, Wiegand and RS-485 ports for advanced access-control system integration
| Description | R25KS |
|---|---|
| Front panel | Aluminum |
| Camera | 4M pixels, automatic lighting |
| Keypad type | Numeric with extra buttons |
| Light sensor | Support |
| Motion sensor | Support |
| Wiegand port | 1ch input/output(selectable) |
| RS485 port | Support |
| RF reader | 13.56MHz&125kHz, NFC (only Android) |
| Relays out | 2 |
| Inputs | 1 |
| Microphone | 1 |
| Speaker | 1 |
| Tamper Alarm | Support |
| Ethernet port | RJ45, 10/100Mbps adaptive |
| Installation | Flush-mounted or Wall-mounted |
| Dimension | 185(H) x 84.5(W) x 24 (D) mm |
| Weight (Net) | 1.20kg |
| Weight (Gross) | 1.80kg |
